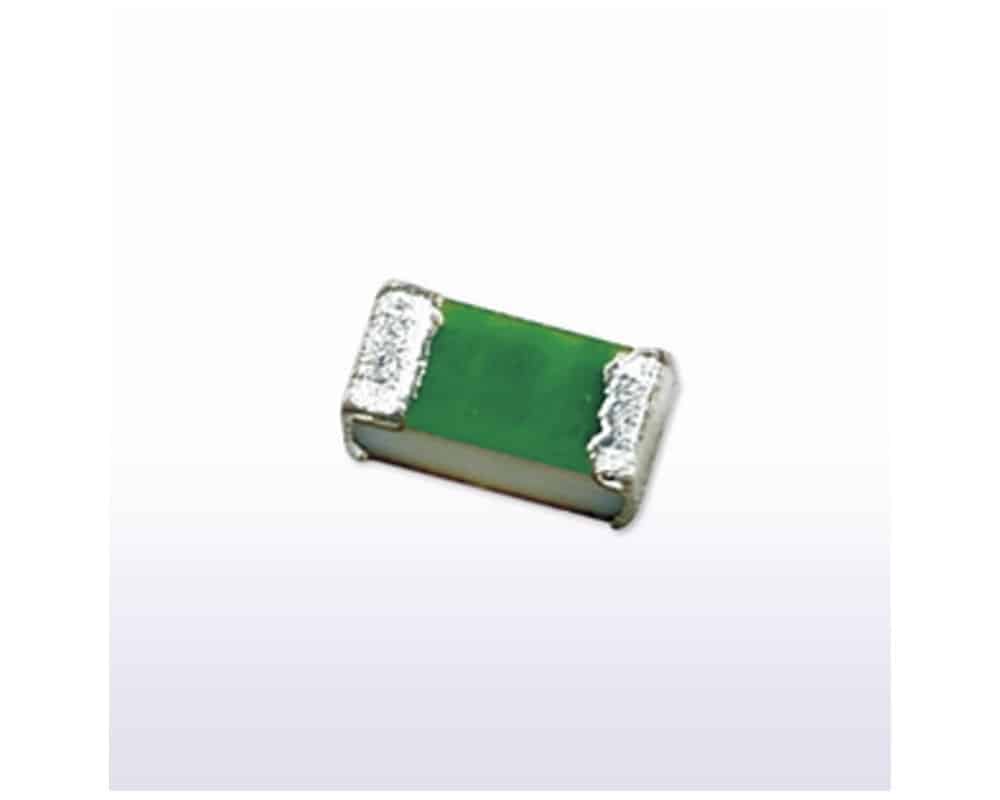

Susumu RS1005 Series

  • Susumu

Product Features

  • Surface-mount high precision audio thin film chip resistor
  • Temperature range of −55°C to +155°C
  • Maximum voltage of 75V
  • AEC-Q200 compliant
  • Automotive

Applications

  • Audio
  • Compliant

Description

The RS1005 high precision audio thin film chip resistor series from Susumu with an improved low noise specification making them ideal for high quality audio equipment applications. Susumu RS1005 series has a chip size of 0402 with resistance values between 47Ω and 100kΩ, tolerance options available of ±0.1% (B) and ±0.5% (D) and a TCR of ±25 ppm/°C (P) . In order to offer the best solution for your application, you will get a choice of resistors with the same resistance value and chip size according to your sound preference so you can select the best sounding resistor.

  • Surface-mount high precision audio thin film chip resistor
  • Resistance range between 47Ω and 100kΩ available
  • Resistance value series E-6
  • Power rating options of 0.03125W or 0.0625W
  • Tolerance values available ±0.1% (B) and ±0.5% (D)
  • TCR values available ±25 ppm/°C (P)
  • Maximum voltage of 75V
  • Temperature range of −55°C to +155°C
  • Selection of resistors offered to find best sounding resistor
  • AEC-Q200 compliant
  • Chip size of 0402



Susumu RS1005 series high precision audio thin film chip resistors are ideal for the following applications:

  • High quality audio equipment
  • Automotive audio equipment
  • Mobile audio equipment and smartphones



The below table gives the full specifications of the Susumu RS series including the RS1005:

Susumu RS1005 Specifications
Please see the Susumu selection guide in the Technical Library tab for the E-6 values





Specifications

Weight 0.00000 kg

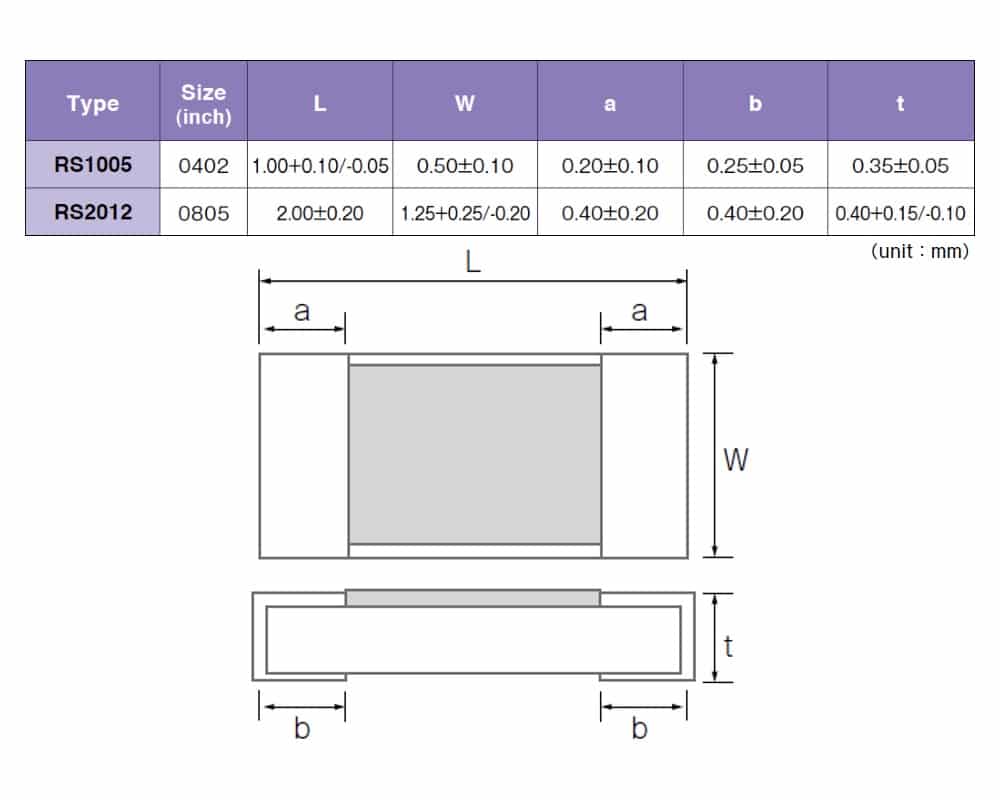

Dimensions 1.00 × 0.50 × 0.35 mm
Minimum Resistance

Maximum Resistance

Series / Model

Temperature Coefficient

Power Rating

,

Additional Features

Surface-mount high precision audio thin film chip resistorOperating temperature range of −55°C to +155°CMaximum voltage of 75VAEC-Q200 compliant

Tolerance

,

Package / Size
