Susumu RS2012 Series

  • Susumu

Product Features

  • Surface-mount high precision audio thin film chip resistor
  • Temperature range of −55°C to +155°C
  • Maximum voltage of 150V
  • AEC-Q200 compliant
  • Automotive

Applications

The RS2012 high precision audio thin film chip resistor series from Susumu have an improved low noise specification making them ideal for high quality audio equipment applications. The Susumu RS2012 series has a chip size of 0805 with resistance values between 47Ω and 100kΩ, with tolerance options available of 0.1% (B) and ±0.5% (D) and a TCR of ±25 ppm/°C (P) . In order to offer the best solution for your application, you will get a choice of resistors with the same resistance value and chip size according to your sound preference so you can select the best sounding resistor.

  • Surface-mount high precision audio thin film chip resistor
  • Resistance range between 47Ω and 100kΩ available
  • Resistance value series E-6
  • Power rating options of 0.1W or 0.125W
  • Tolerance values available ±0.1% (B) and ±0.5% (D)
  • TCR values available ±25 ppm/°C (P)
  • Maximum voltage of 150V
  • Temperature range of −55°C to +155°C
  • Selection of resistors offered to find best sounding resistor
  • AEC-Q200 compliant
  • Chip size of 0805



Susumu RS2012 series high precision audio thin film chip resistors are ideal for the following applications:

  • High quality audio equipment
  • Automotive audio equipment
  • Mobile audio equipment and smartphones

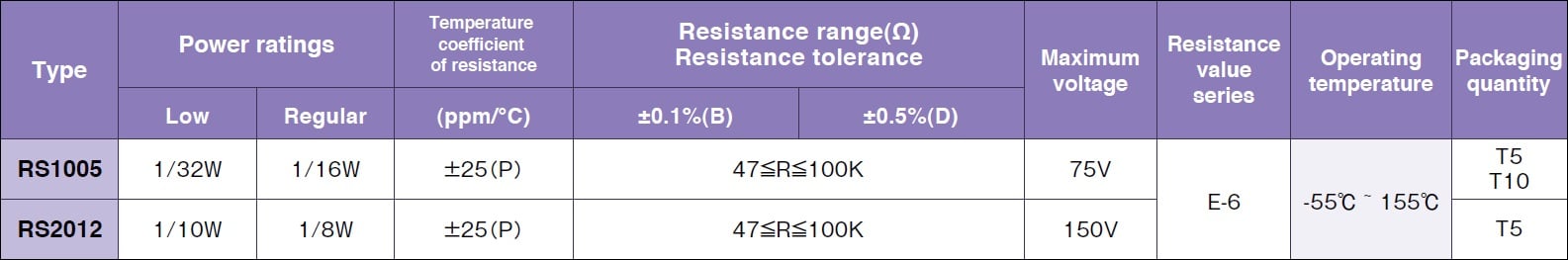

The below table gives the full specifications of the Susumu RS series including the RS2012:

Susumu RS2012 Specifications
Please see the Susumu selection guide in the Technical Library tab for the E-6



Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Weight 0.00000 kg
Dimensions 0.40 x 1.25 x 2.00mm
Maximum Resistance

Minimum Resistance

Package / Size

Power Rating

,

Series / Model

Temperature Coefficient

Tolerance

,

Susumu RS Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Susumu RS high precision audio thin film chip resistor series datasheet
Susumu product selection guide and handling care information
Susumu complete catalogue
