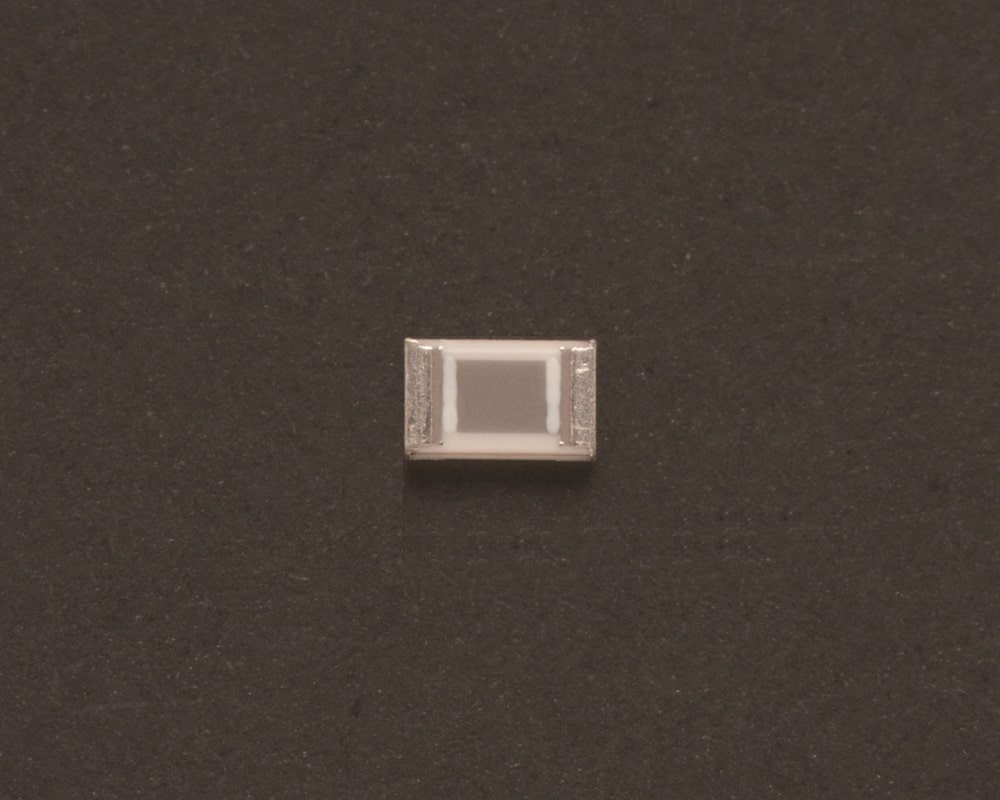

Susumu RT1220 Series

  • Susumu

Product Features

  • Surface-mount thin film trimmable chip resistor
  • Temperature range of −55°C to +125°C
  • Maximum voltage of 100V
  • AEC-Q200 compliant
  • Automotive

Applications

  • Compliant

Description

The RT1220 series thin film trimmable chip resistors from Susumu  offer the designer patented trimming method (Patent# 1921853) which guarantees precision trimming, post trimming stability and short trimming time. The Susumu RT1220 series initial resistance values from 33Ω to 100kΩ and the maximum resistance valves when the parts have been trimmed from 4.7kΩ, to 220kΩ. The power rating is 0.1W with a maximum voltage of 100V and the initial tolerance value of ±20% with a chip size of 0805.

  • Surface-mount thin film trimmable chip resistor
  • Initial resistance values are from 33Ω to 100kΩ
  • Maximum resistance values when the parts have been trimmed from 4.7kΩ to 220kΩ
  • Power rating of 0.1W
  • Initial tolerance value ±20%
  • TCR values available are ±25 ppm/°C (P), ±50 ppm°C and ±100 ppm/°C (R) (depending on the resistance value required)
  • Maximum voltage of 100V
  • Temperature range of −55°C to +125°C
  • Chip size of 0805
  • AEC-Q200 compliant

Susumu RT1220 series thin film trimmable chip resistors are ideal for the following applications:

  • Sensor circuits that require accuracy (e.g. automotive electronics)
  • PA modules of mobile phone
  • Devices that require anti-vibration stability (e.g. microphone)

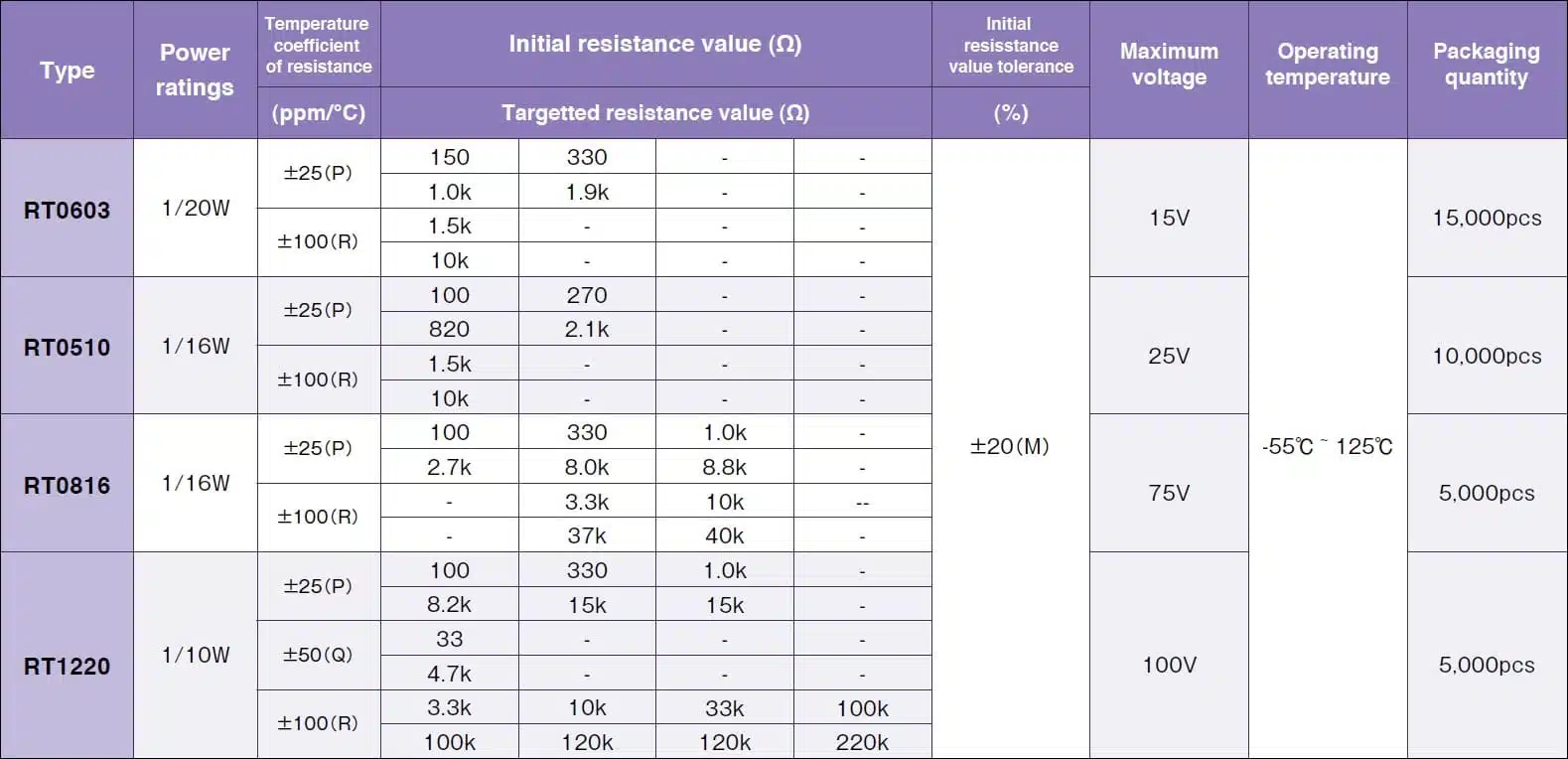

The below table gives the full specifications of the Susumu RT series including the RT1220:

Susumu RT1220 Specifications


Specifications

Weight 0.00000 kg

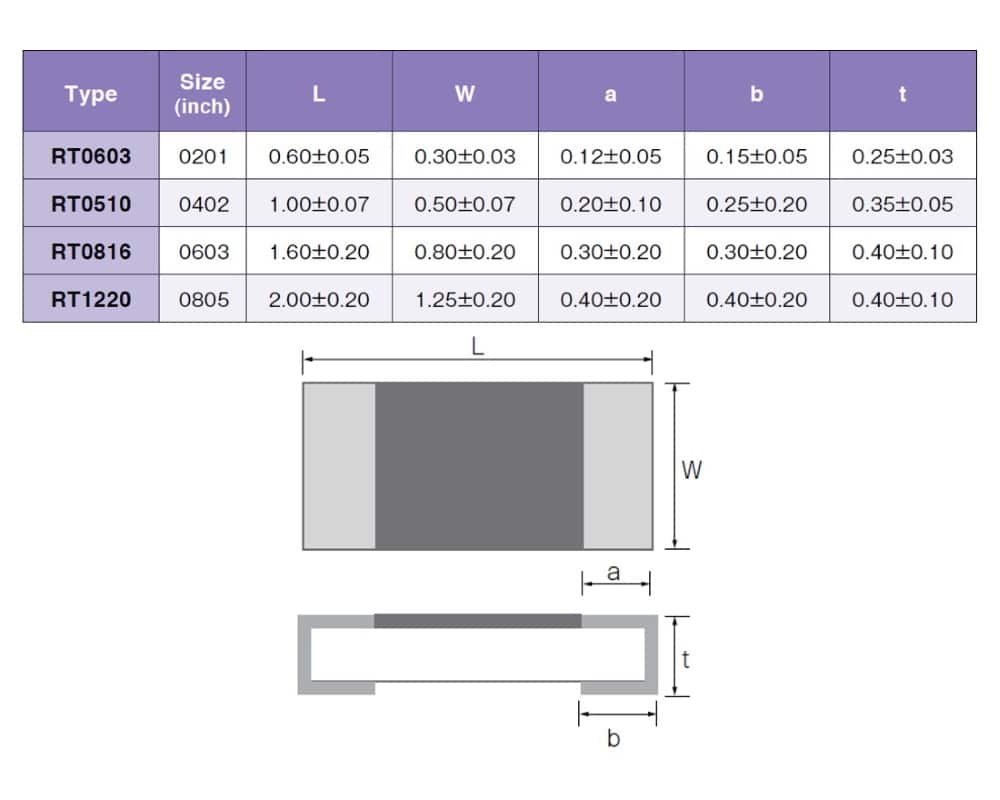

Dimensions 2.00 × 1.25 × 0.40 mm
