The FLB high precision through-hole resistor series from Alpha Electronics offers a very precise resistor with a resistance range from 1Ω up to 150kΩ all in a small through-hole package. The terminals have been designed for easy insertion into the PCB. By utilising Alpha’s Bulk Metal® foil resistor technology, they are able to produce resistors with low-temperature coefficients and excellent long-term stability. This makes them ideal for precision measurements, also their low inductance enables use at higher frequencies.
Attributes | Value |
---|---|
Resistance value | 1Ω to 150kΩ |
Tolerance | ±0.02% to ±1% |
TCR | ±2.5ppm/°C to ±15ppm/°C (-25 to +125°C) |
Temperature range | -25°C to +155°C |
Power rating (at +70°C) | 0.25W |
Maximum voltage | 300V |

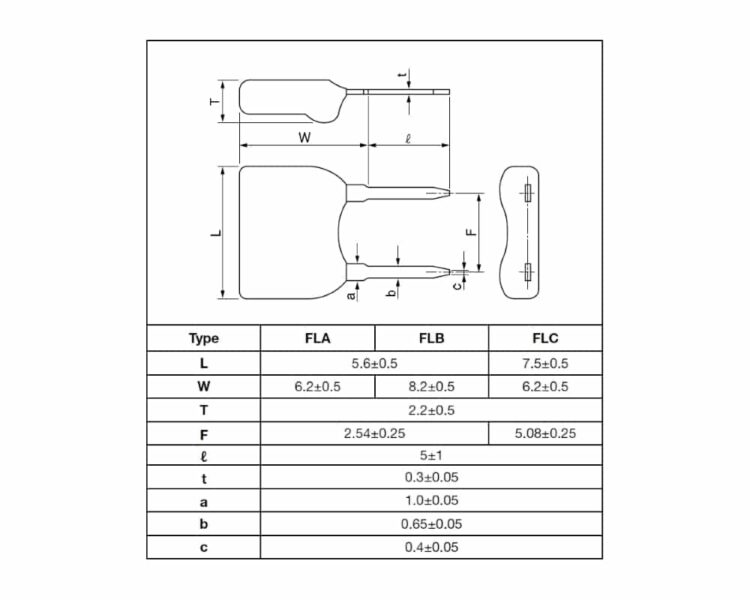

Dimensions | 8.20 x 2.20 x 5.60mm |
---|---|
Product Type | |
Minimum Resistance | 10Ω |
Resistance Value | Custom (10Ω – 30Ω), Custom (30Ω – 100Ω), Custom (100Ω – 150kΩ) |
Maximum Resistance | 150kΩ |
Tolerance | |
Power Rating | |
Temperature Coefficient | |
Package / Size | |
Temperature Range (°C) | -25 to +155°C |
Series / Model |
SKU | Resistance Value | Tolerance | Temperature Coefficient | Series / Model |
---|---|---|---|---|
Alpha FLBY (100Ω - 150kΩ) A | Custom (100Ω - 150kΩ) | ±0.05% | ±2.5 ppm/°C | |
Alpha FLBX (100Ω - 150kΩ) A | Custom (100Ω - 150kΩ) | ±0.05% | ±5 ppm/°C | |
Alpha FLBY (100Ω - 150kΩ) B | Custom (100Ω - 150kΩ) | ±0.1% | ±2.5 ppm/°C | |
Alpha FLBX (100Ω - 150kΩ) B | Custom (100Ω - 150kΩ) | ±0.1% | ±5 ppm/°C | |
Alpha FLBY (10Ω - 30Ω) D | Custom (10Ω - 30Ω) | ±0.5% | ±2.5 ppm/°C | |
Alpha FLBX (10Ω - 30Ω) D | Custom (10Ω - 30Ω) | ±0.5% | ±5 ppm/°C | |
Alpha FLBY (10Ω - 30Ω) F | Custom (10Ω - 30Ω) | ±1% | ±2.5 ppm/°C | |
Alpha FLBX (10Ω - 30Ω) F | Custom (10Ω - 30Ω) | ±1% | ±5 ppm/°C | |
Alpha FLBY (30Ω - 100Ω) B | Custom (30Ω - 100Ω) | ±0.1% | ±2.5 ppm/°C | |
Alpha FLBX (30Ω - 100Ω) B | Custom (30Ω - 100Ω) | ±0.1% | ±5 ppm/°C | |
Alpha FLBY (30Ω - 100Ω) D | Custom (30Ω - 100Ω) | ±0.5% | ±2.5 ppm/°C | |
Alpha FLBX (30Ω - 100Ω) D | Custom (30Ω - 100Ω) | ±0.5% | ±5 ppm/°C |
