The TLC conformally coated resistor series from Alpha Electronics further expands their resistor range offerings by utilising thin film resistor technology to allow for larger resistance values of up to 10MΩ. The TLC series offers a precise resistor with a resistance range from 200kΩ up to 10MΩ all in a small through-hole package with low temperature coefficients down to ±5 ppm/°C (between -25°C and +125°C) as well as tolerances down to ±0.02%.
The Alpha Electronics TLC thin film precision resistor series has been designed with terminals that are easy for insertion into the PCB.

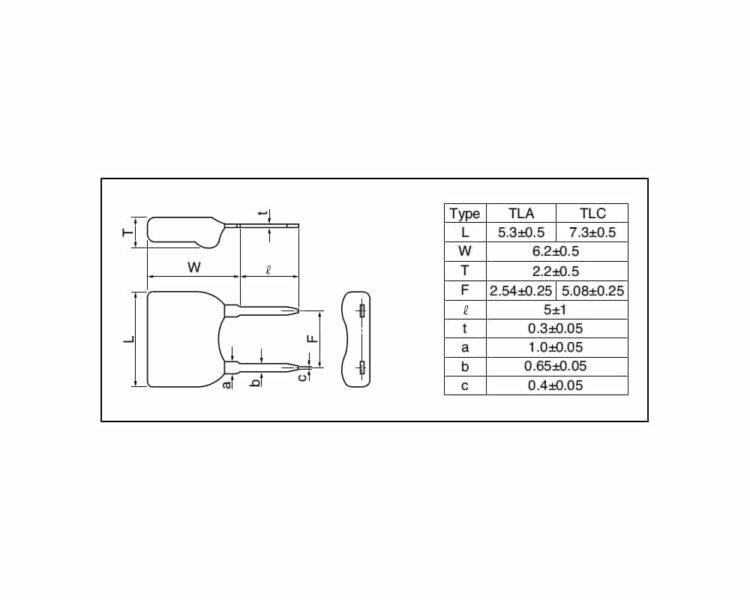

The TLC series offers a pin pitch of 5.08 ±0.25mm.
The below table gives the full specifications for each resistor model available including the Alpha TLC series:
| Weight | 0.00000 kg |
|---|---|
| Dimensions | 6.20 x 2.20 x 7.30mm |
| Maximum Resistance | 10MΩ |
| Minimum Resistance | 200kΩ |
| Package / Size | |
| Power Rating | |
| Product Type | |
| Resistance Value | |
| Series / Model | |
| Temperature Coefficient | |
| Temperature Range (°C) | -25 to +155°C |
| Tolerance |
| SKU | Resistance Value | Temperature Coefficient | Tolerance |
|---|---|---|---|
| Alpha TLCC (200kΩ - 10MΩ) Q | Custom (200kΩ - 10MΩ) | ±10 ppm/°C | ±0.02% |
| Alpha TLCX (200kΩ - 10MΩ) Q | Custom (200kΩ - 10MΩ) | ±5 ppm/°C | ±0.02% |
| Alpha TLCC (200kΩ - 10MΩ) A | Custom (200kΩ - 10MΩ) | ±10 ppm/°C | ±0.05% |
| Alpha TLCX (200kΩ - 10MΩ) A | Custom (200kΩ - 10MΩ) | ±5 ppm/°C | ±0.05% |
| Alpha TLCC (200kΩ - 10MΩ) B | Custom (200kΩ - 10MΩ) | ±10 ppm/°C | ±0.1% |
| Alpha TLCX (200kΩ - 10MΩ) B | Custom (200kΩ - 10MΩ) | ±5 ppm/°C | ±0.1% |
| Alpha TLCC (200kΩ - 10MΩ) D | Custom (200kΩ - 10MΩ) | ±10 ppm/°C | ±0.5% |
| Alpha TLCX (200kΩ - 10MΩ) D | Custom (200kΩ - 10MΩ) | ±5 ppm/°C | ±0.5% |
| Alpha TLCC (200kΩ - 10MΩ) F | Custom (200kΩ - 10MΩ) | ±10 ppm/°C | ±1% |
| Alpha TLCX (200kΩ - 10MΩ) F | Custom (200kΩ - 10MΩ) | ±5 ppm/°C | ±1% |
| Product name | SKU | Datasheet | ||
|---|---|---|---|---|
| VPG TLA Series | VPG TLA Series | View Product | |
| VPG TLC Series | VPG TLC Series | View Product |
