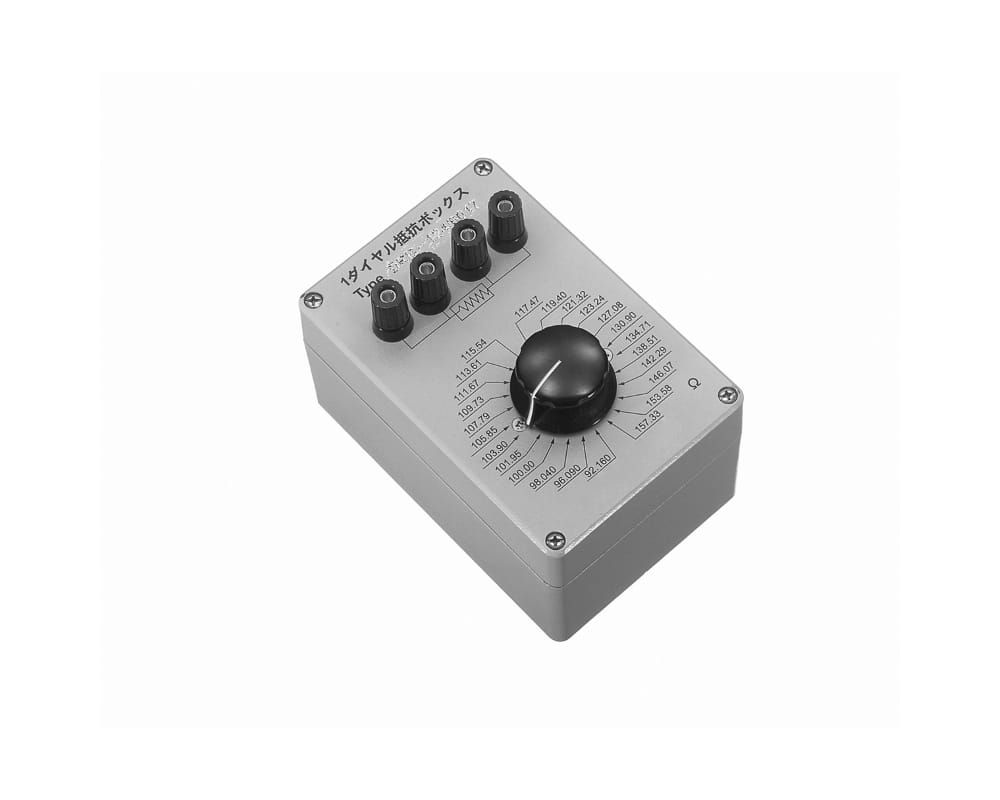

Alpha ADR 1-Dial Series

Product Features

Fully customisable 1-dial resistance box
Up to 24 unique 5-digit resistance values
Resistance range from 1Ω up to 1MΩ
Tolerance of ±0.02%, ±0.05% or ±0.1%
TCR of ±2.5 ppm/°C or ±5 ppm/°C
Lightweight, compact size

Applications

The ADR 1-dial resistance box series from Alpha Electronics offers a range of standard resistors which are ideally suited for repetitive daily work. The single dial system means the resistance is easily switched from one value to another. This greatly improves work efficiency and helps to avoid mistakes, which may happen when using a 6-dial decade standard resistor. They are ideally suited for RTD simulation for platinum (Pt) related products and conductive meters.

Fully customisable 1-dial resistance box (up to 24 resistance values)
Up to 5-digit resistance values on switching contacts may be specified
Resistance values available from 1Ω up to 1MΩ
Improved work efficiency and elimination of careless mistakes
Lightweight, compact size
High precision
High stability

The resistance elements utilise Bulk Metal® Foil technology and the connections to the rotary switch are made by using 4-terminal junctions. This ensures that high precision, high stability and low temperature coefficients are achieved.

The ADR-1xxx 1-Dial resistance box is fully customisable. Up to 24 different resistance values can be set into the box.

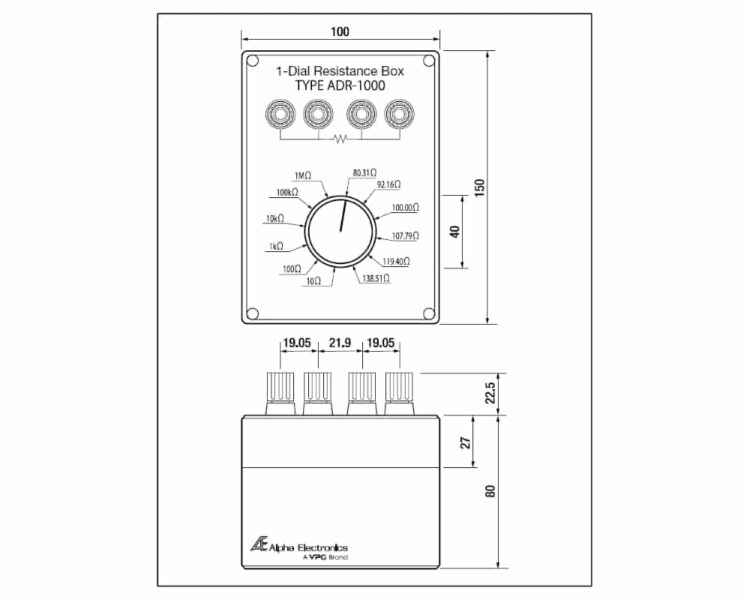

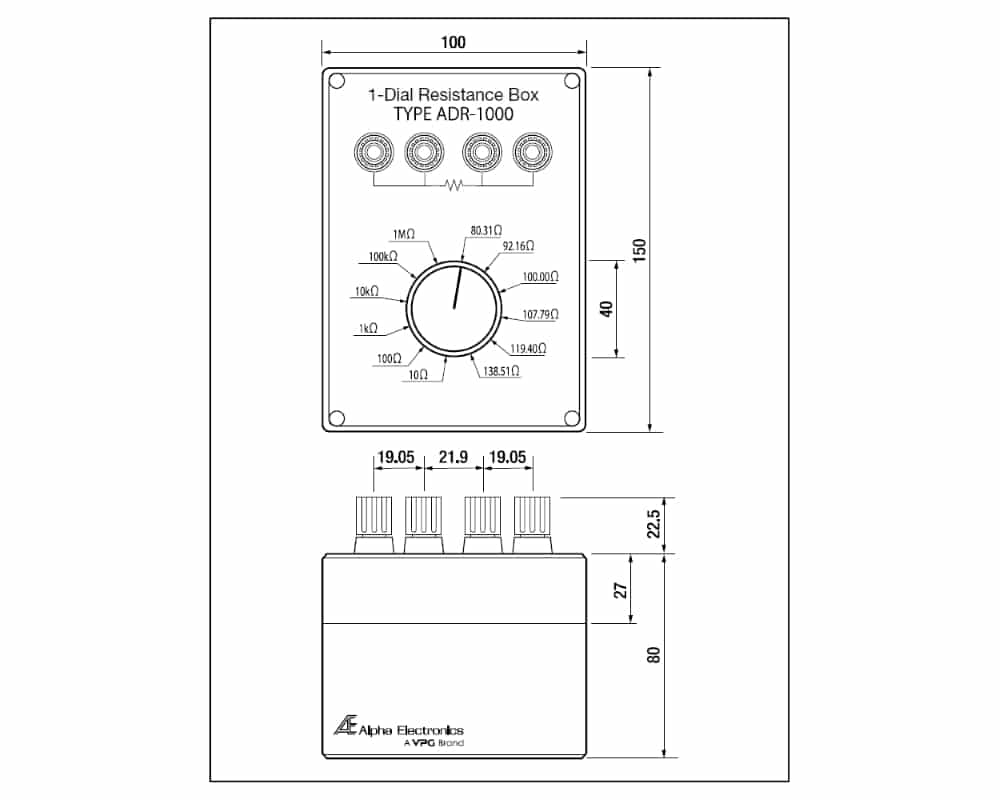

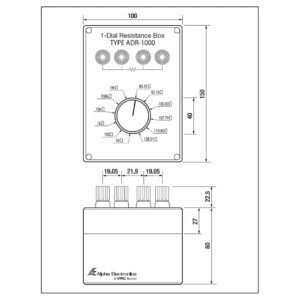

The ADR-1xxx series has a weight of approximately 1kg and dimensions of 100mm x 150mm x 80mm.

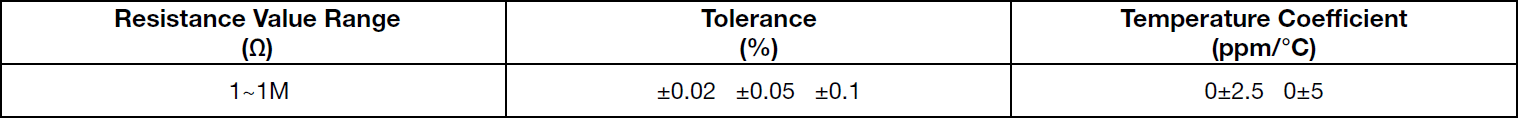

The below table gives the full specifications available for the Alpha ADR 1-dial resistance box series:

Tolerance and temperature coefficient varies with resistance values.

Add to Compare

Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Specifications

Weight	1.00000 kg
Dimensions	80.00 x 150.00 x 100.00mm
Maximum Resistance	1MΩ
Minimum Resistance	1Ω
Product Type	1-Dial, Resistance Box
Series / Model	ADR
Temperature Coefficient	±2.5 ppm/°C, ±5 ppm/°C
Tolerance	±0.02%, ±0.05%, ±0.1%
