| Dimensions | 10.70 x 4.30 x 10.70mm |
|---|---|
| Product Type | |
| Minimum Resistance | 1Ω |
| Resistance Value | |
| Maximum Resistance | 120kΩ |
| Tolerance | |
| Power Rating | |
| Temperature Coefficient | |
| Series / Model | |
| Mounting / Size | |
| Temperature Range | -65 to +150°C |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

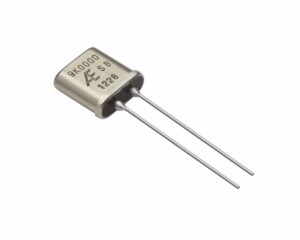

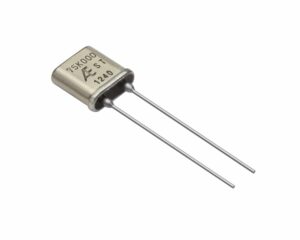

The HC Ultra-precision through-hole resistor series from Alpha Electronics offers their extremely precise resistor capabilities in a hermetically sealed package. With a resistance range from 1Ω up to 120kΩ all in a small through-hole package with a pin pitch of 3.81mm ±0.25mm. By utilising Alpha’s Bulk Metal® foil resistor technology, they are able to produce resistors with low-temperature coefficients and excellent long-term stability. The Alpha Electronics HC series have been designed with longer leads to ensure the correct clearance from the PCB is achieved when soldering. It is advised that the resistors are kept over 10mm away from the board surface by using an insulating tube.
| Attributes | Value |
|---|---|
| Resistance value | 1Ω to 120kΩ |
| Tolerance | ±0.005% to ±1% |
| TCR | ±1ppm/°C to ±15ppm/°C |
| Temperature range | -65°C to +150°C |
| Power rating (at 125°C) | 0.3W |
| Maximum voltage | 300V |
Alpha Electronics are manufacturers of some of the most stable and precise resistors on the market. As part of the VPG Foil Resistors product group, the Alpha Electronics brand is globally rewarded for the accuracy and reliability of its Bulk Metal® Foil technology resistors. Alpha Electronics has been living the conviction globally known to engineers for consistently delivering the highly desirable characteristics of “Stability, Accuracy and Reliability”. Please visit https://www.alpha-elec.co.jp for more information.
