| Weight | 0.00000 kg |
|---|---|

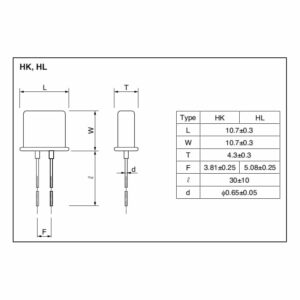

| Dimensions | 10.70 x 4.30 x 10.70mm |
| Maximum Resistance | 100kΩ |
| Minimum Resistance | 100Ω |
| Mounting / Size | |
| Power Rating | |
| Product Type | |
| Resistance Value | |
| Series / Model | |
| Temperature Coefficient | |
| Temperature Range | -65 to +150°C |
| Tolerance |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.
The HK resistor series from Alpha Electronics offers their ultra-precision resistor capabilities in a hermetically sealed package all with a zero-TCR. With a resistance range from 100Ω up to 100kΩ all in a small through-hole package with a pin pitch of 3.81 ±0.25mm. By utilising Alpha’s Bulk Metal® foil resistor technology, they are able to produce resistors with a zero-TCR (0±15 ppm/°C between 0°C and +50°C) and excellent long-term stability.
The Alpha Electronics HK hermetically sealed ultra-precision resistor series have been designed with longer leads to ensure the correct clearance from the PCB is achieved when soldering. It is advised that the resistors are kept over 10mm away from the board surface by using an insulating tube.
The below table gives a summary of the specifications available for each resistor model including the Alpha HK series:
