| Dimensions | 2.00 x 3.20 x 4.50mm |
|---|---|
| Resistance Value | |
| Product Type | |
| Minimum Resistance | 30Ω |
| Maximum Resistance | 60kΩ |
| Tolerance | |
| Power Rating | |
| Temperature Coefficient | |
| Voltage Rating | |
| Current Rating | |
| Temperature Range | -65 to +175°C |
| Series / Model | |
| Mounting / Size |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

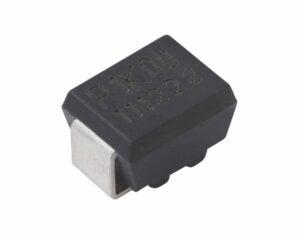

The MQ ultra-precision surface-mount resistor series from Alpha Electronics offers a wide resistance range from 30Ω up to 60kΩ with tight tolerances down to ±0.05% (100Ω to 60kΩ), all in a small surface-mount package. By utilising Alpha’s Bulk Metal® foil resistor technology, they are able to produce resistors with low-temperature coefficients and excellent long-term stability. The Alpha MQ series J-lead terminals provide flexibility compared to standard fixed surface-mount resistors as the resistive element internally is mechanically isolated from the leads via gold wire-bonding.
These resistors are constructed using an outer coating of epoxy resin, which provides excellent resistance to moisture, heat and solvents. Internally, the resistive element is mechanically isolated from the lead frames using gold wire bonding. The series exhibits excellent high-frequency characteristics thanks to their Bulk Metal® foil resistor technology, making them suitable for the most demanding precision applications.
| Attributes | Value |
|---|---|
| Resistance value | 30Ω to 60kΩ |
| Tolerance | ±0.05% or ±0.1% |
| TCR | ±5ppm/°C or ±10ppm/°C (-55 to +125°C) |
| Temperature range | -65°C to +175°C |
| Power rating (at 125°C) | 0.125W |
| Maximum voltage | 100V |
