| Weight | 0.00000 kg |
|---|---|
| Dimensions | 32.40 x 8.00 x 30.00mm |
| Actual Energy Failure | 600J |
| Dissipation Constant | 48mW/°C |
| Material Type | |
| Max. Recommended Energy | 300J |
| Maximum Steady State Current | 30A |
| Mounting / Size | |
| Resistance at +25°C | 1Ω |
| Series / Model | |
| Thermal Time Constant | 55mW/s |
| Tolerance |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

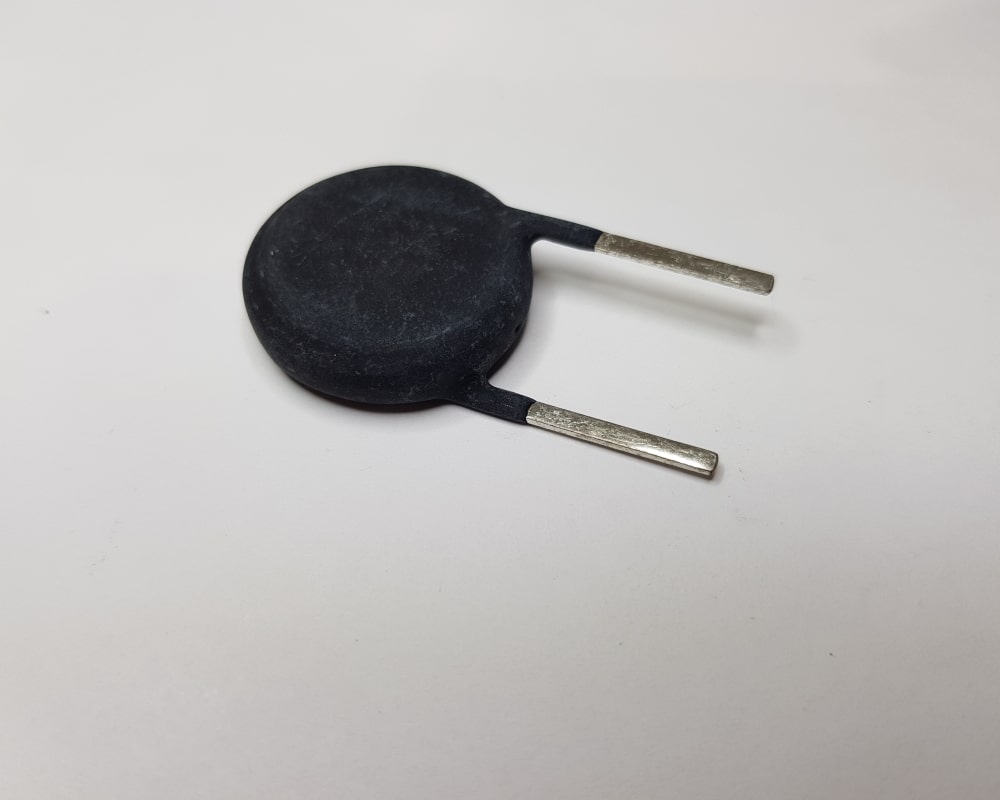

The AS32 1R030 inrush current limiting thermistor from Ametherm offers a maximum steady state current of 30A (up to +25°C) and a resistance of 1Ω ±25% (at 25°C). The Ametherm AS series are designed to withstand high steady-state current and input energy. Compared to traditional inrush current limiters, the devices offer lower current density, faster reset times, and a wider temperature range without derating. This lower current density, in combination with a uniform temperature gradient throughout the disc, increases reliability by eliminating hot spots from fatigue. The AS series from Ametherm are suitable for high energy and short term high current applications.
Typical applications for the AS series include:

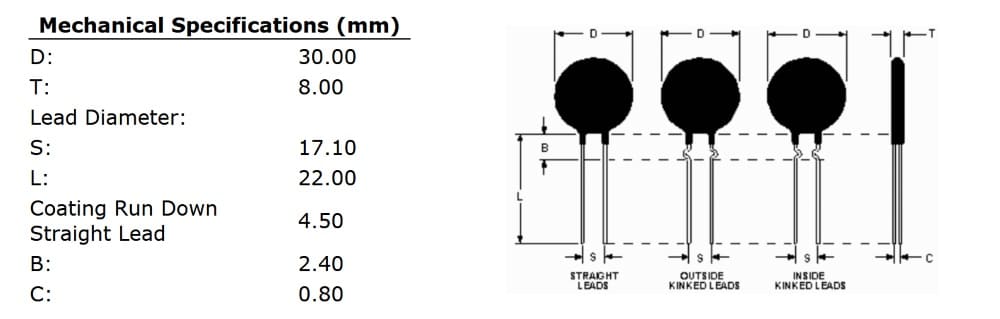

The below table gives the full specifications of the Ametherm AS32 1R030 series:
