Ametherm SL05 4R003

The SL05 4R003 inrush current limiting thermistor from Ametherm offers a maximum steady state current of 3A (up to +65°C), resistance of 4Ω ±20% (at 25°C) and a maximum recommended energy rating of 5J. The Ametherm SL series suppresses surge currents that occur when electrical circuits are switched on, preventing serious damage to sensitive electronic components if their rated current values are exceeded. Connected in series with the load, at “switch-on” they limit the current due to its relatively high cold resistance. As a result of current flow, the thermistor self-heats and in turn reducing its resistance value so that once the initial surge current has been safely held off, the resistance in the thermistor is maintained at a low value to maximise efficiency

• Inrush current limiting thermistor
• Resistance of 4Ω (at 25°C)
• Maximum steady state current of 3A (up to +65°C)
• Maximum recommended energy of 5J
• Body temperature of +138.8°C at maximum current
• Dissipation constant of 5mW/°C
• Tolerance ±20%
• Thermal time constant of 10s
• Material Type A (for Beta and Curve)

Typical applications for the SL series include:

• Limit current inrush to PSUs and battery chargers
• Lighting circuits and thermostat protection
• Electric motor soft start

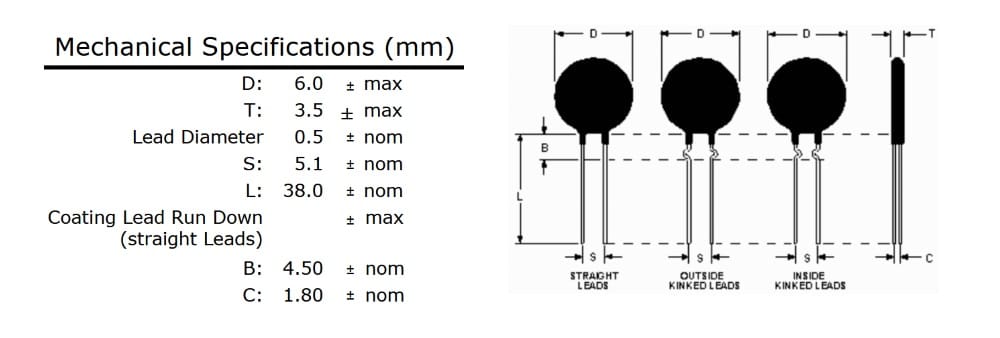

The below table gives the full specifications of the Ametherm SL05 4R003
