| Weight | 0.00000 kg |
|---|---|
| Dimensions | 0.00 x 0.00 x 0.00mm |
| Colour | Red |
| Dissipation Constant | 1mW/°C |
| Mounting / Size | |
| Power Rating | |
| Product Type | |
| Resistance at +25°C | 3kΩ |
| Series / Model | |
| Temperature Range | -40 to +150°C |

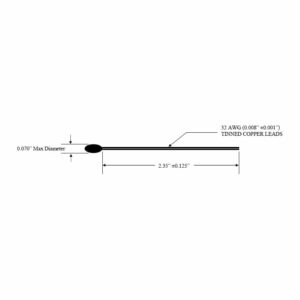

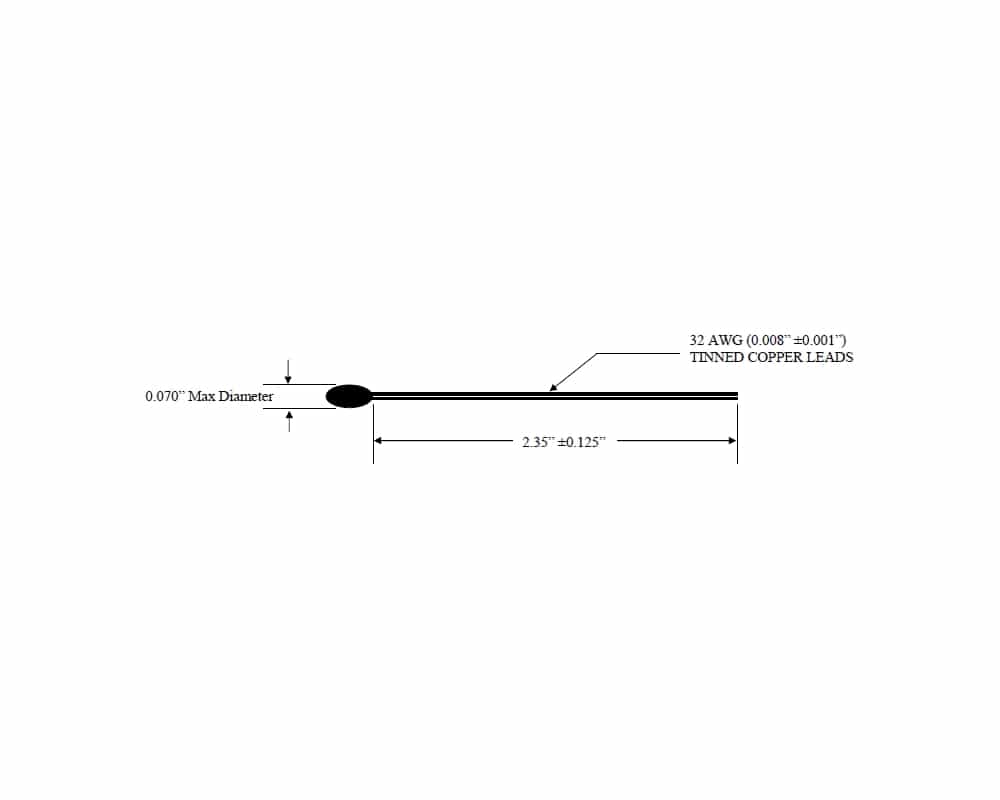

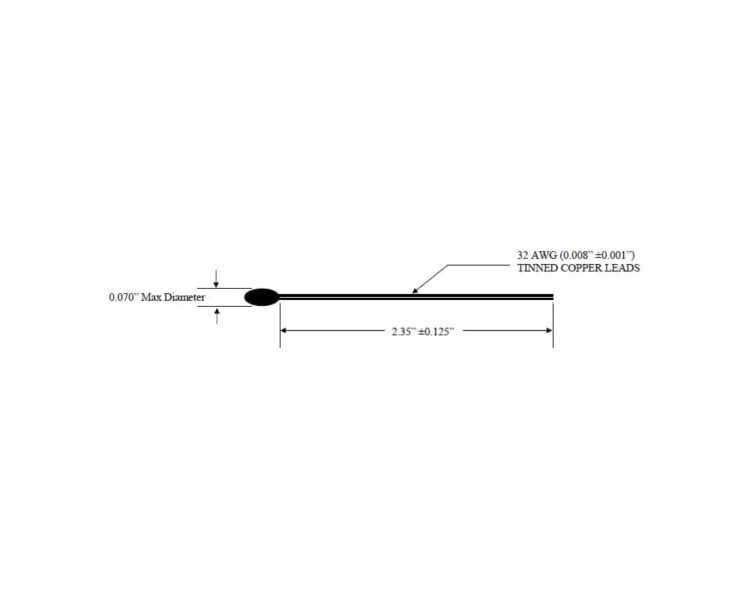

| Termination / Connection | 32AWG Tinned Copper Leads |
| Thermal Time Constant | 3.5s |
| Tolerance |
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

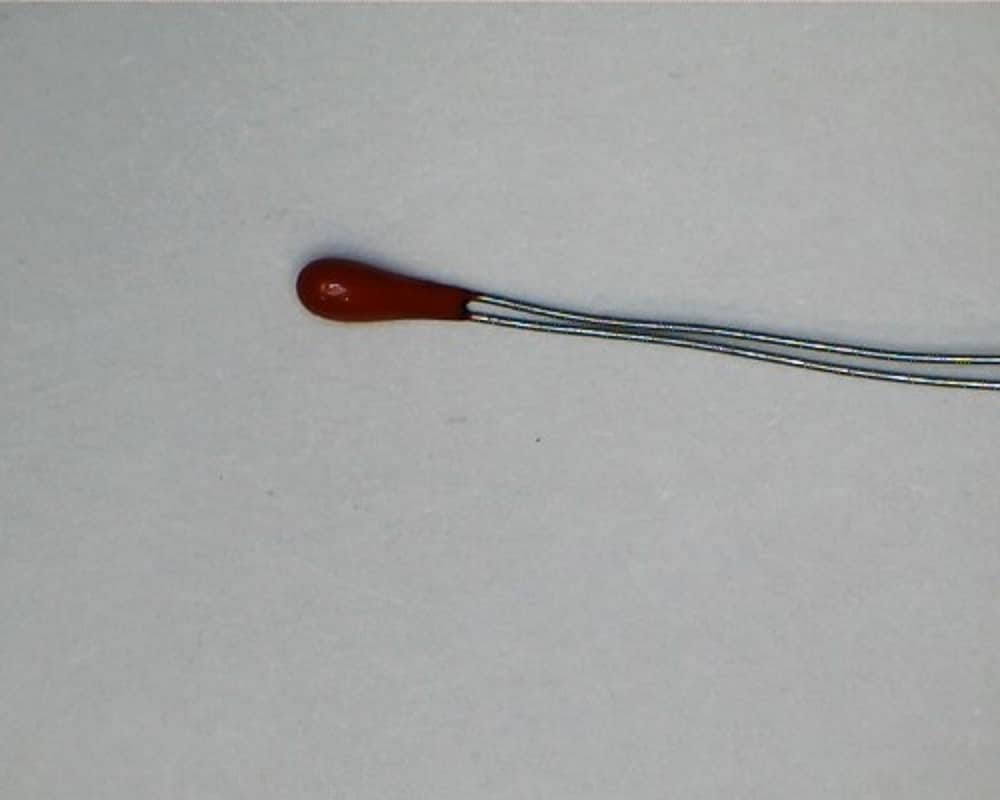

The ACC-002 precision interchangeable NTC thermistor from Ametherm is part of their ACCU-CURVE™ series. The ACC-002 offer a high degree of accuracy and reliability with a resistance of 3kΩ at +25°C and a temperature tolerance of ±0.2°C between 0°C and +70°C. The Ametherm ACCU-CURVE™ series commonly perform temperature sensing, control and compensation for medical, industrial and automotive applications. The complete series offers interchangeability over a broad temperature range and eliminates the need to individually calibrate or provide circuit compensation for part variability.
Typical applications for the ACCU-CURVE™ series include:
The below table gives the full specifications of the Ametherm ACCU-CURVE™ series including the ACC-002 thermistor:
