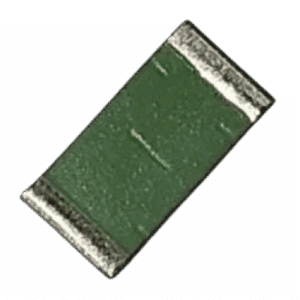

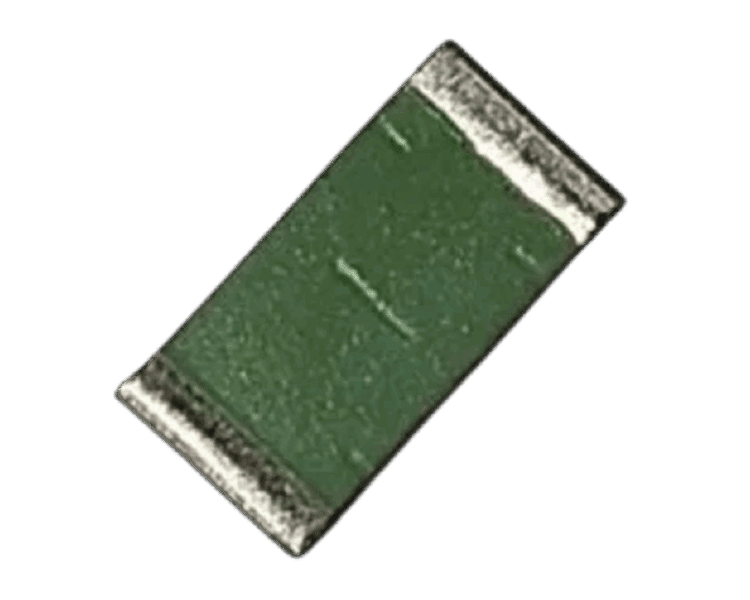

High Precision Current Sensing Surface Mount Resistor

The FRCS2512 is a high-precision current sensing resistor built with VPG’s Bulk Metal® Foil technology, housed in a compact 2512 SMD package. Engineered for demanding applications such as power supplies, motor control, battery monitoring, and instrumentation, this resistor offers excellent accuracy and thermal stability. Featuring a four‑terminal Kelvin configuration with wrap-around terminations, it minimizes parasitic effects and ensures precise current measurement. With resistance values ranging from 100 mΩ to 1 Ω, tight tolerances of ±0.1%, and ultra-low TCR of ±5 ppm/°C, this component delivers fast thermal response and minimal drift. Rated for 1 W power at 70 °C (up to 2.5 W working power) and with exceptional load‑life stability (≤±0.01%) and short-time overload resilience, the FRCS2512 is ideal for long-term reliability in harsh environments.

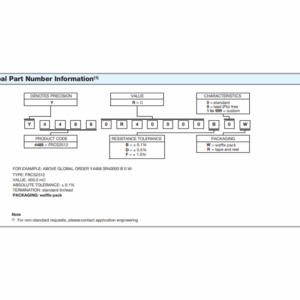

Key features of the FRCS2512 Series:

• Resistance range: 100 mΩ to 1 Ω
• Tolerance: ±0.1% accuracy for precision current measurement
• Temperature coefficient (TCR): ±5 ppm/°C (–55 to +125 °C) for excellent stability
• Power rating: 1 W at 70 °C (derated up to 2.5 W working power)

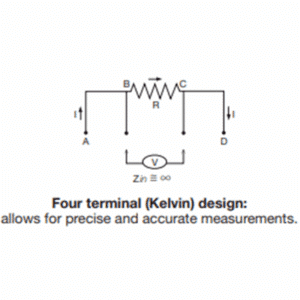

• Kelvin (4‑terminal) configuration: Reduces parasitic resistance and improves measurement accuracy
• Bulk Metal® Foil construction: Ensures low thermal EMF and superior stability
• Load-life stability: ≤±0.01% typical after 2000 h at 1 W, 70 °C
• Short-term overload capability: 5x rated power with only ~0.005% change

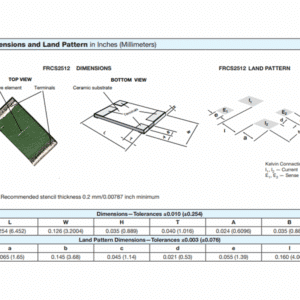

• Package size: 2512 (6.86 × 3.20 × 0.89 mm), ideal for compact PCB layouts
• Lead finishes: Available in both lead-free and tin/lead terminations for soldering flexibility

Non-standard technical requirements such as resistance outside of standard range, lower tolerance or TCR are available upon request. Please contact us for further information and availability.
