Weidmüller RJ45M R1D 3.3N4Y/G TY series

Weidmüller RJ45M R1D 3.3N4Y/G TY series
Weidmüller RJ45M R1D 3.3N4Y/G TY series
Weidmüller RJ45M R1D 3.3N4Y/G TY series
  • Weidmüller

Product Features

  • Through-hole RJ45 transformer Jack
  • Plugging cycles 750
  • Gold over nickel contact surface
  • Black in colour
  • Temperature range of −40°C to +85°C
  • EAC approved and UL listed
  • UL

Applications

  • Compliant

Description

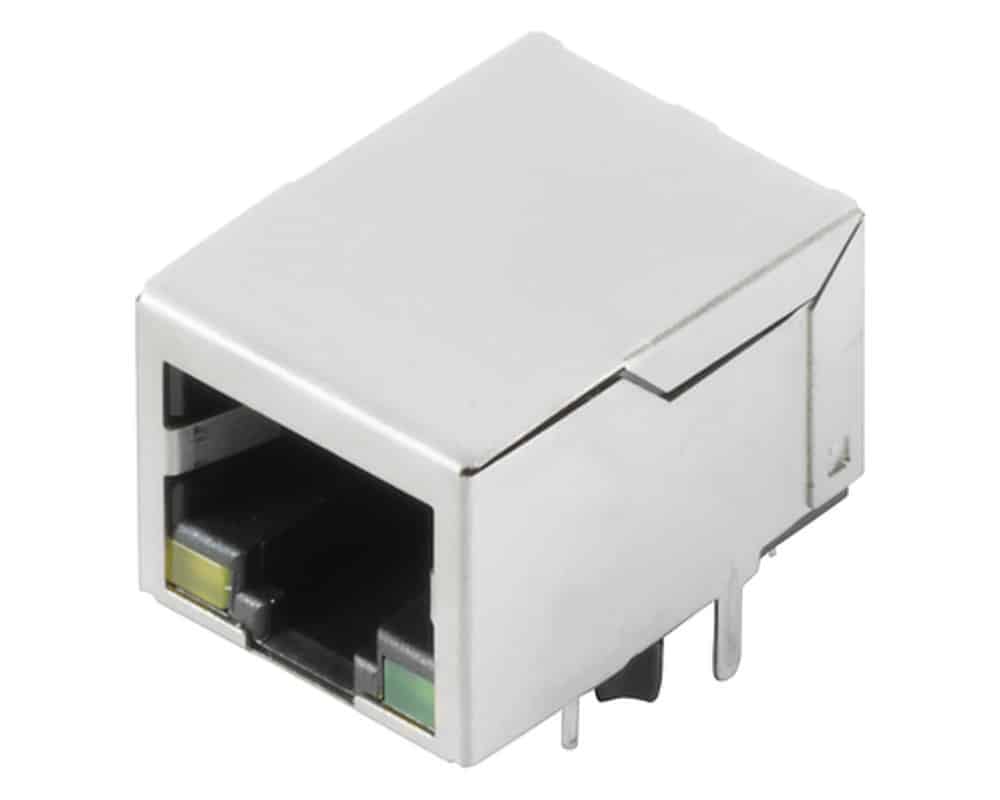

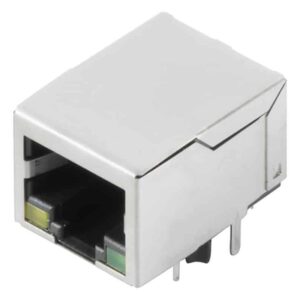

The RJ45M R1D 3.3N4Y/G TY jack with transformer from the Weidmüller Omnimate data range, offers a magnetic transmitter socket for gigabit applications (1000 base-T) with integrated compensation, which actively counteracts inductive and capacitive couplings and saves space on the PCB. The RJ45 twin jack with transformer connector by Weidmüller features 8 poles with an outgoing elbow of 90° and extended temperature range of −40°C to +85°C.

  • Through-hole RJ45 jack with transformer
  • Mounting onto PCB via THR solder connection
  • Transmission rate 10/100Mbit/s
  • Outgoing elbow of 90°
  • Shield surface being nickel-plated
  • Approved by EAC and are UL listed
  • 8 poles
  • Contact surface of gold over nickel
  • 2 LEDs which are yellow and green
  • Dielectric strength of ≥1000VDC
  • Temperature range −40°C to +85°C

The Weidmüller RJ45 is characterised by its compactness and simplicity. It is used predominantly in:

  • Horizontal wiring
  • Wiring workstations

For further information regarding the specifications, please see the datasheet on the Technical Library tab.


Specifications

Weight 3.45000 kg

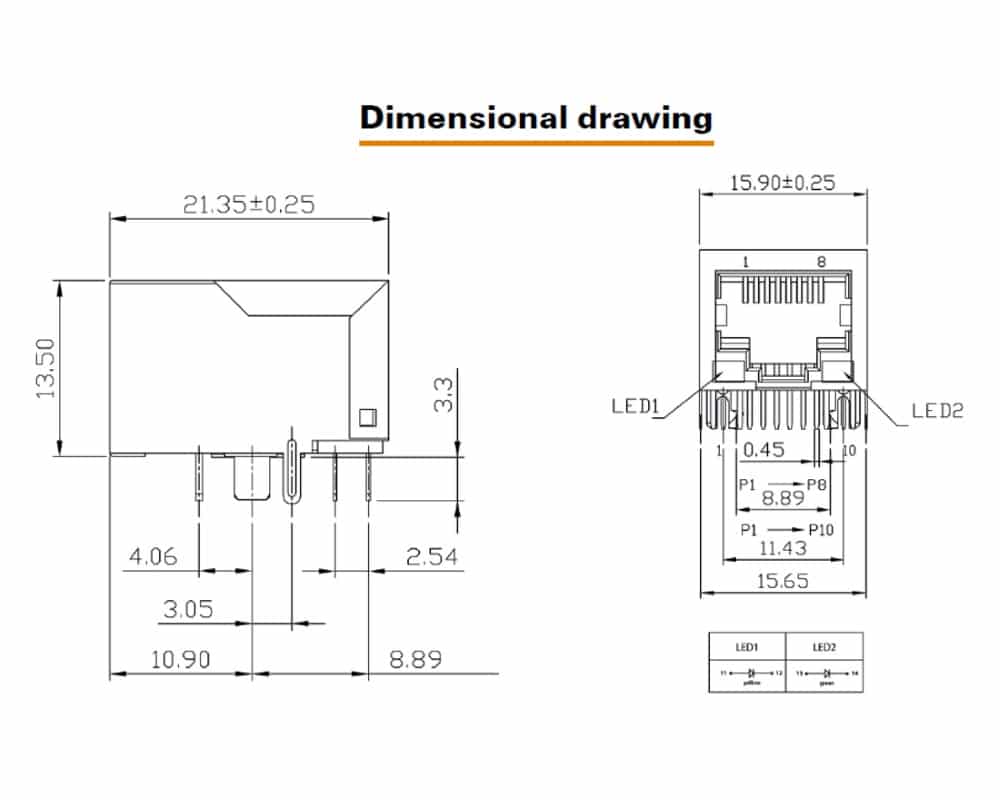

Dimensions 15.90 × 21.35 × 13.50 mm
Shielding

Series / Model

LED

Number of Poles

Transmission Rate

Conductor Outlet Direction

RoHS Compliant Product – Weidmüller

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Weidmüller RJ45M R1D 3.3N4Y/G TY Technical Library
