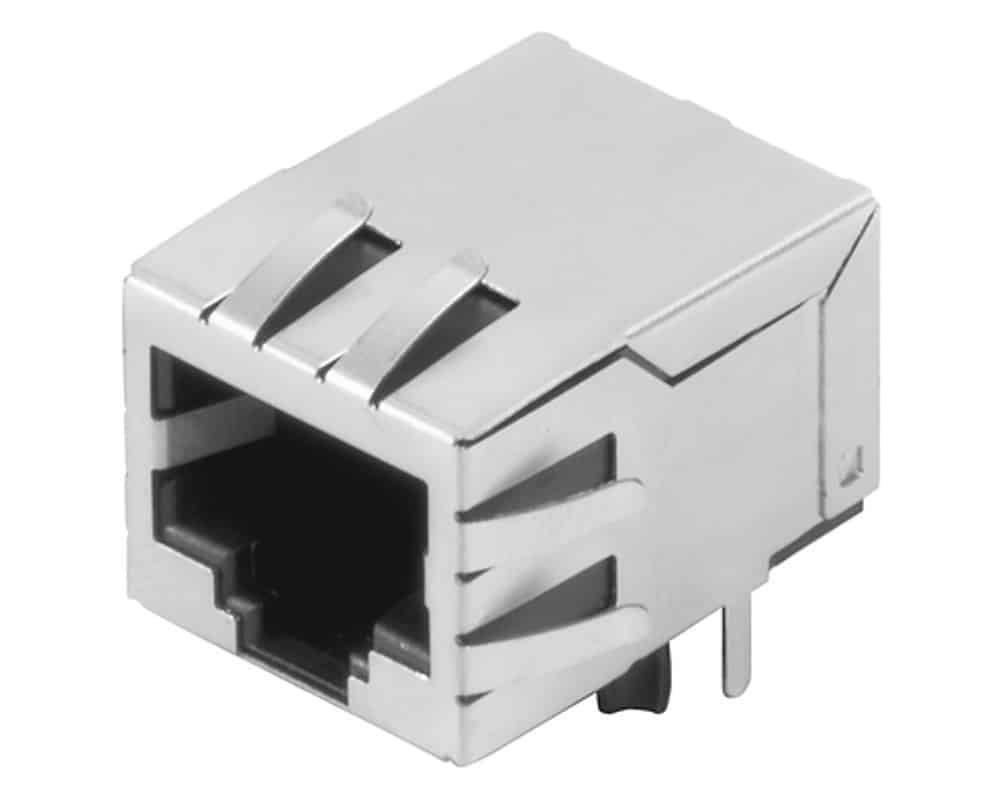

Weidmüller RJ45M T1D 3.2E4N TY series

  • Weidmüller

Product Features

  • Through-hole RJ45 transformer jack
  • Plugging cycles 750
  • Gold over nickel contact surface
  • Solder pin length 3.2mm
  • Black in colour
  • Temperature range of −40°C to +85°C
  • EAC approved and UL listed
  • UL

Applications

  • Compliant

The RJ45M T1D 3.2E4N TY jack with transformer from the Weidmüller Omnimate data range, offers a magnetic transmitter socket for gigabit applications (1000 base-T) with integrated compensation, which actively counteracts inductive and capacitive couplings and saves space on the PCB. The RJ45M T1D 3.2E4N TY by Weidmüller features 8 poles with an outgoing elbow of 90° and extended temperature range of −40°C to +85°C.

  • Through-hole RJ45 jack with transformer
  • Mounting onto PCB via THR solder connection
  • Transmission rate 10/100Mbits
  • Outgoing elbow of 90°
  • Shield surface being nickel-plated
  • Socket connection
  • Solder pin length of 3.2mm
  • Approved by EAC and are UL listed
  • 8 poles
  • Contact surface of gold over nickel
  • Dielectric strength of ≥1000VDC and rated current of 1.5A
  • Temperature range −40°C to +85°C

The Weidmüller RJ45 jack series is characterised by its compactness and simplicity. It is used predominantly in:

  • Horizontal wiring
  • Wiring workstations

For further information regarding the specifications, please see the datasheet on the Technical Library tab.
