Weidmüller S2C-SMT 3.50/180G Series

Weidmüller S2C-SMT 3.50/180G Series
Weidmüller S2C-SMT 3.50/180G Series
Weidmüller S2C-SMT 3.50/180G Series
  • Weidmüller

Product Features

  • PCB terminal connector with male header and closed housing
  • Rated current for minimum number of poles 13.4A (IEC) and 10A (UL)
  • Dimensions of L1 3.5mm to 59.5.5mm (depending on the number of poles required)
  • THT or THR solder connection with a solder pin length of 3.5mm
  • Temperature range −50°C to +105°C
  • CSA and UL 1059 approved, IEC listed
  • UL

Applications

  • Compliant

Description

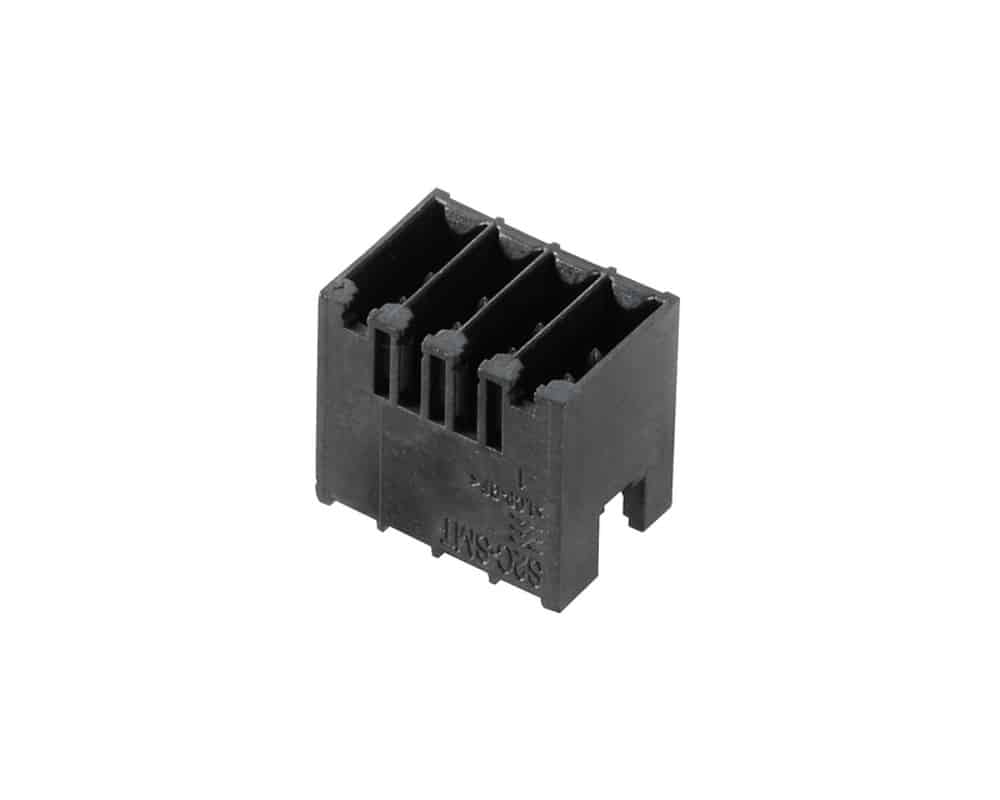

The S2C-SMT 3.50/180G male header PCB plug in connector series from Weidmüller’s Omnimate signal range has been designed with a conductor outlet direction of 180°. They have a 3.5mm pitch and a choice from 4 up to 36 poles in 2 rows. The S2C-SMT 3.50/180G series from Weidmüller have a closed housing and can be used in a fully automatic assembly using wave (THT) or reflow (THR) soldering. These PCB plug-in connectors have an operating temperature range of −50°C up to +120°C .

  • PCB plug in connector with male header
  • Through-hole technology with wave(THT) or reflow(THR) soldering
  • Number of poles available from 4 to 36 in 2 rows
  • Solder pin length of 3.5mm
  • Pitch of 3.5mm
  • Conductor outlet direction of 180°
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 3.5mm to 59.5mm depending on the number of poles required
  • Rated current for minimum number of poles 13.4A (IEC) and 10A (UL)
  • Black in colour
  • Packaged in box or tape on reel
  • Temperature range −50°C up to +120°C

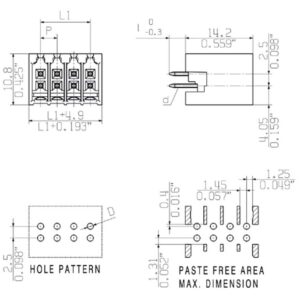

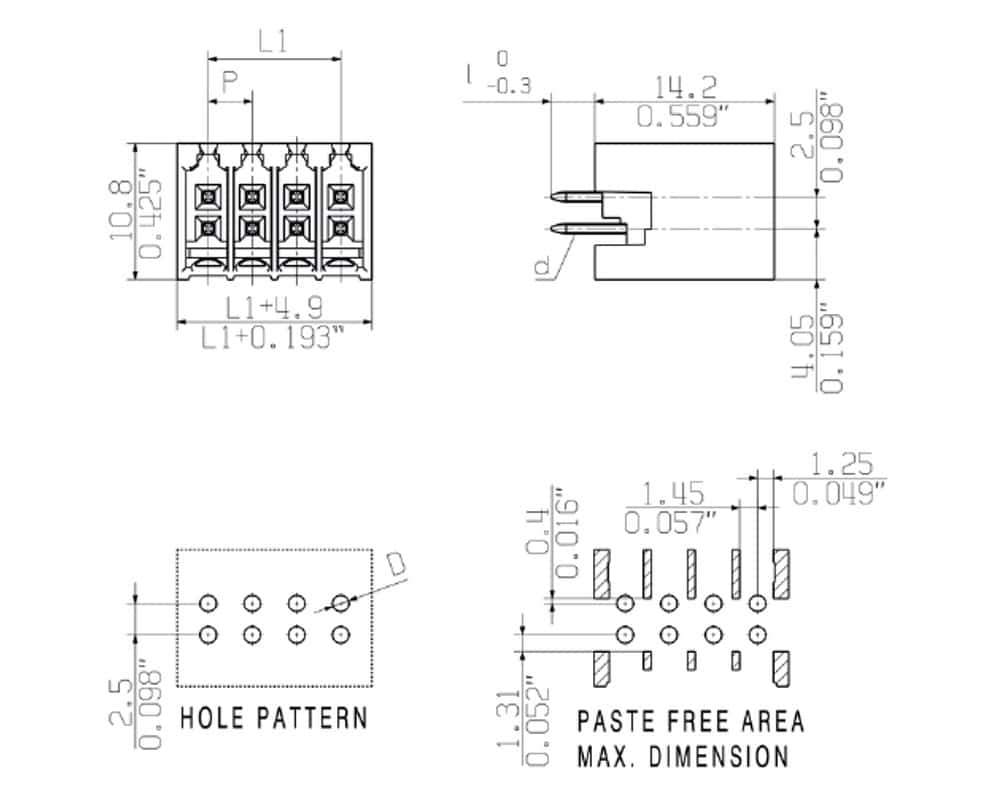

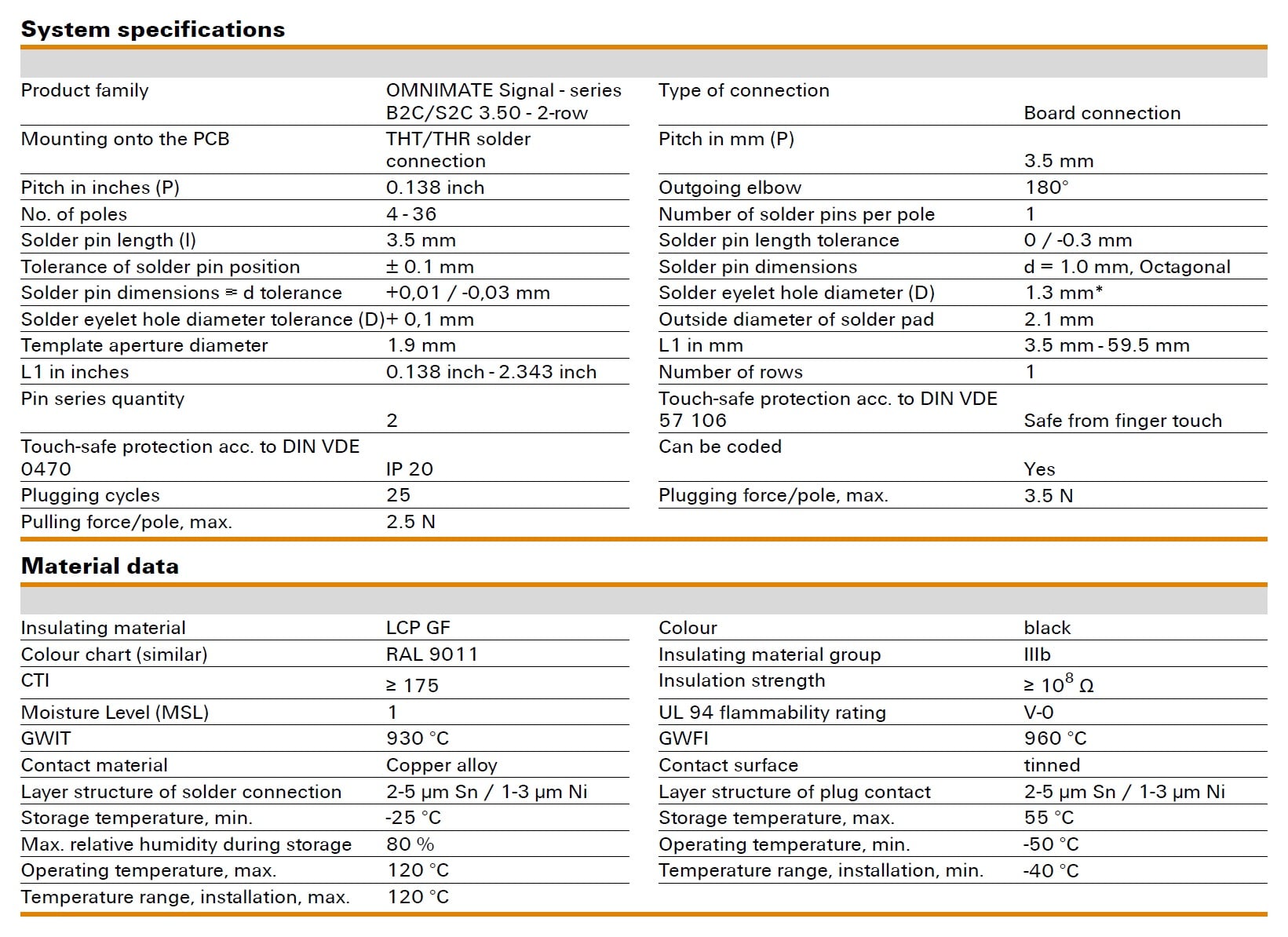

The below table gives the specifications of the Weidmüller S2C-SMT 3.50/180G connector series:

Weidmüller S2C-SMT 3.50/180G Specifications

* Poles 4 to 24 1.3mm and Poles 26 to 36 1.4mm

Please see the relevant datasheet in the technical library for the exact specification

Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Series / Model

Colour

Conductor Outlet Direction

Package / Size

Number of Poles

, , , , , , , , , , , , , , , ,

Termination / Connection Type

RoHS Compliant Product – Weidmüller

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Weidmüller S2C-SMT 3.50/180G 3.5SN BK BX Technical Library

We are pleased to provide you with a range of additional content including product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:

DOCUMENTATION
4 Pole – Weidmüller Omnimate Signal S2C SMT 3.50 04 180G 3.5SN BK BX PCB connector datasheet
6 Pole – Weidmüller Omnimate Signal S2C SMT 3.50 06 180G 3.5SN BK BX PCB connector datasheet
8 Pole – Weidmüller Omnimate Signal S2C SMT 3.50 08 180G 3.5SN BK BX PCB connector datasheet
10 Pole – Weidmüller Omnimate Signal S2C SMT 3.50 10 180G 3.5SN BK BX PCB connector datasheet
12 pole – Weidmüller Omnimate Signal S2C SMT 3.50 12 180G 3.5SN BK BX PCB connector datasheet
14 Pole – Weidmüller Omnimate Signal S2C SMT 3.50 14 180G 3.5SN BK BX PCB connector datasheet
16 Pole – Weidmüller Omnimate Signal S2C SMT 3.50 16 180G 3.5SN BK BX PCB connector datasheet
18 Pole – Weidmüller Omnimate Signal S2C SMT 3.50 18 180G 3.5SN BK BX PCB connector datasheet
20 pole – Weidmüller Omnimate Signal S2C SMT 3.50 20 180G 3.5SN BK BX PCB connector datasheet
22 Pole – Weidmüller Omnimate Signal S2C SMT 3.50 22 180G 3.5SN BK BX PCB connector datasheet
24 Pole – Weidmüller Omnimate Signal S2C SMT 3.50 24 180G 3.5SN BK BX PCB connector datasheet
26 Pole – Weidmüller Omnimate Signal S2C SMT 3.50 26 180G 3.5SN BK BX PCB connector datasheet
28 pole – Weidmüller Omnimate Signal S2C SMT 3.50 28 180G 3.5SN BK BX PCB connector datasheet
30 Pole – Weidmüller Omnimate Signal S2C SMT 3.50 30 180G 3.5SN BK BX PCB connector datasheet
32 Pole – Weidmüller Omnimate Signal S2C SMT 3.50 32 180G 3.5SN BK BX PCB connector datasheet
34 Pole – Weidmüller Omnimate Signal S2C SMT 3.50 34 180G 3.5SN BK BX PCB connector datasheet
36 pole – Weidmüller Omnimate Signal S2C SMT 3.50 36 180G 3.5SN BK BX PCB connector datasheet

Weidmüller Omnimate Signal Video Library

We are pleased to provide you with a range of videos, please see below for the latest content available:





VIDEOS
Place holder video for YouTube video Weidmüller Omnimate Signal video

A short video of Weidmüller' Device Connectivity components for signal applications. Designed specifically for automation applications, providing innovative solutions and backed by superior design in service and support.
