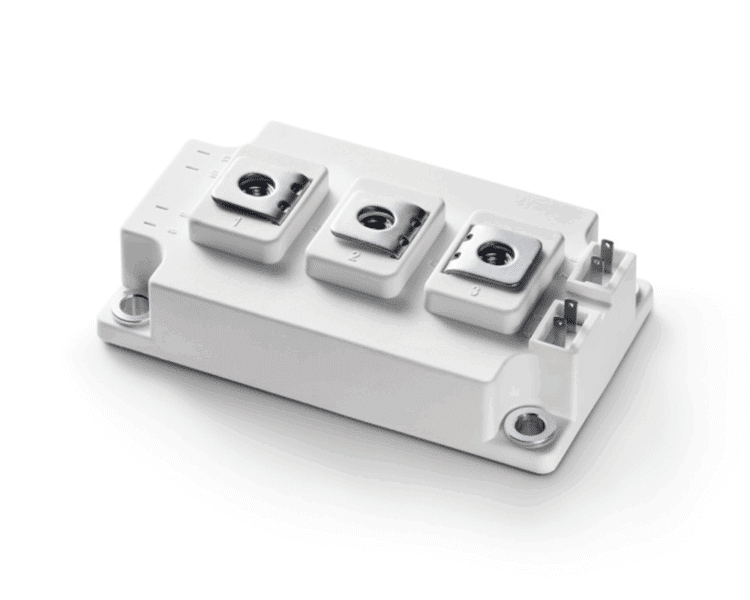

Cissoid IGBT Power Module 1200V / 300A

The CMT-PLA1BK12300MA (and variant CMT-PLA1BK12300M) is a high-performance half-bridge IGBT power module from Cissoid, engineered for demanding power conversion applications. Rated for 1200 V collector-to-emitter voltage and 300 A continuous current, the module utilises advanced Trench Gate Field-Stop (TG-FS) IGBT technology to deliver low saturation voltage and efficient switching performance. Housed in a robust 62 mm package with a copper baseplate, the module is optimised for thermal management and system integration. Its half-bridge configuration simplifies inverter design, while its rugged construction supports high reliability in industrial, traction, renewable energy and power supply applications.

Key advantages of the CMT-PLA1BK12300MA module include high efficiency from reduced conduction and switching losses, high power density for compact system layouts, and strong tolerance to harsh operating environments. The module is suitable for elevated junction temperatures and rigorous operational demands. Designed with system-level robustness in mind, the module incorporates features such as high dv/dt immunity, enhanced thermal cycling endurance, and low VCE(sat) to support high-current and high-frequency switching environments.

Key Features 0f the Cissoid CMT-PLA1BK12300M IGBT Power Module:

• Voltage rating: 1200 V collector-to-emitter — suited for high-voltage bus systems.
• Current capability: Rated at 300 A continuous — drives high-power loads effectively.
  • @ TC=90°C: 450A
  • @ TC=125°C: > 300A
• IGBT technology: Trench Gate Field-Stop (TG-FS) IGBTs — for low saturation voltage and improved switching performance.
• Half-bridge configuration: Simplifies integration in inverter architectures (up and down switches within one module).
• Robust thermal baseplate: Copper baseplate in 62 mm package provides excellent heat conduction and mechanical support.
• High power density: Compact design enables smaller system footprints and integration into constrained spaces.
• High dv/dt and dI/dt immunity: Suitable for modern high-speed PWM converters and harsh switching environments.
• Application-ready for harsh environments: Designed for industrial/traction conditions with strong mechanical and thermal resilience.
• Reduced conduction losses: Low VCE(sat) helps minimize I²R losses and reduces cooling requirements.
• Streamlined system design: Module format allows simpler assembly, fewer individual components, and faster time-to-market.

Typical Applications for the CMT-PLA1BK12300M include:

• Industrial Motor Drives & Servo Systems: High-power inverters for manufacturing, processing, robotics and automation.
• Rail & Transportation: Traction converters and propulsion systems for rail vehicles, trams, and commercial transport.
• Renewable Energy & Grid-Tied Inverters: Solar and wind power systems, active rectification, energy storage systems.
• Electric Vehicle Infrastructure: High-power chargers (DC fast charging), onboard traction inverters for heavy EV and commercial vehicles.
• Oil & Gas / Heavy Industry: Power conversion modules in offshore, mining, drilling equipment and extreme environment systems.
• Aerospace & Defence Power Electronics: Rugged power modules for avionics, propulsion, and high-temperature/high-reliability conversion systems.

Cissoid is a leading provider of high-temperature and high-reliability semiconductor solutions, specialising in power management for industrial, automotive, and aerospace applications. They focus on delivering efficient, robust, and durable silicon carbide (SiC) and silicon-based products. For more information, visit their website https://www.cissoid.com/.
