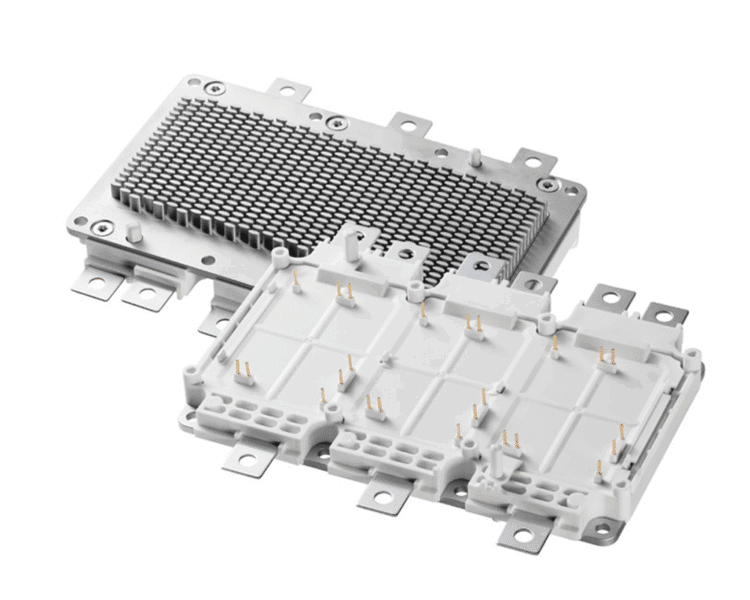

Cissoid IGBT Power Module 750V / 820A

The CXT-PLA3BG07820R series is a high-power, three-phase IGBT module engineered by Cissoid for demanding conversion systems. It utilises the latest generation Trench Gate Field Stop (TG-FS) IGBT technology, delivering low saturation voltage, high current carrying capability and robust thermal performance in a compact form-factor. According to Cissoid’s product listing, this module is specified for up to 750 V maximum collector-to-emitter voltage and 820 A maximum current rating under specified conditions. The module’s design objectives include high efficiency, high power density, and operational robustness for industrial, traction, renewable energy and transportation applications. With low conduction losses and TG-FS switching characteristics, the CXT-PLA3BG07820R reduces cooling burden and supports higher system throughput. The three-phase half-bridge (or full-bridge) configuration supports simplified inverter architectures and enables scalable solutions.

To aid integration, Cissoid provides thermal, electrical and mechanical data models, enabling system designers to optimise heat-sink, PCB layout and bus-bar connections. The use of a rugged power module housing and high-current internal connections supports harsh operational environments. Features of this module include excellent thermal cycling endurance, high dv/dt immunity, low VCE(sat) for reduced I²R losses, and optimized switching characteristics for high-frequency PWM use. The result is a power stage solution capable of delivering high reliability and performance for high-demand systems.

Key Features 0f the Cissoid CXT-PLA3BG07820R IGBT Power Module:

• Voltage rating: 750 V DC collector-to-emitter maximum.
• Current capability: Up to 820 A peak current (subject to thermal conditions).
• 3-phase module form: Enables full or half-bridge inverter topology in one module.
• TG-FS IGBT technology: Delivers lower VCE(sat), improved switching performance and high blocking capability.
• High power density packaging: Compact, optimised layout for improved thermal management and system compactness.
• Robust thermal performance: Designed for high junction temperature operation and thermal cycling endurance.
• Low conduction losses: Thanks to advanced IGBT design, reducing thermal load in the module.
• High switching velocity capability: Suitable for modern PWM frequency inverter systems.
• System-level integration ready: With datasheet models for thermal, mechanical and electrical design optimization.
• Versatile application scope: Suitable across transportation, industrial drives, renewables and more.

Typical Applications for the CXT-PLA3BG07820RA include:

• Automotive Industry: Electric and hybrid traction inverters, On-board fast chargers (OBC) and DC/DC converters
• Renewable Energy: Solar and wind inverters, Energy storage system (ESS) bidirectional converters
• Industrial Sector: High-efficiency motor drives and servo systems, High-power switched-mode power supplies (SMPS), Uninterruptible power supplies (UPS)
• Aerospace and Defence: High-temperature power conversion for harsh environments, Actuation and power systems in aviation
• Rail and Marine Transportation: Traction and propulsion inverters for rail and marine electrification

Cissoid is a leading provider of high-temperature and high-reliability semiconductor solutions, specialising in power management for industrial, automotive, and aerospace applications. They focus on delivering efficient, robust, and durable silicon carbide (SiC) and silicon-based products. For more information, visit their website https://www.cissoid.com/.
