Shunt-basesd current sensor

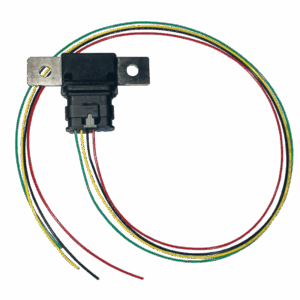

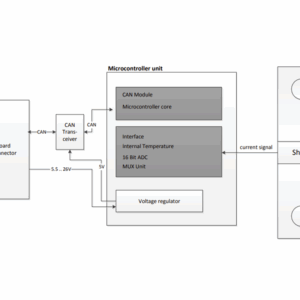

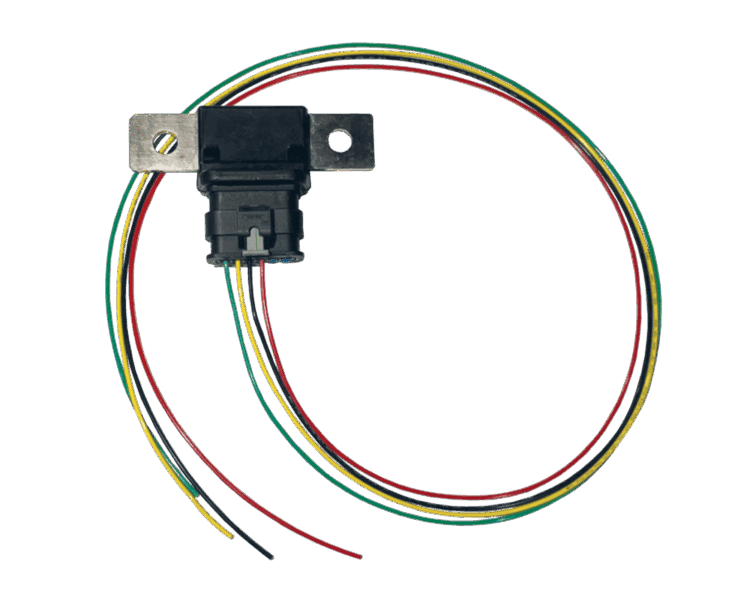

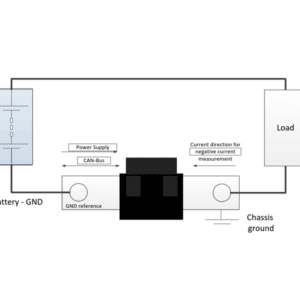

The Isabellenhütte ICD Series is a high-precision digital current measurement module designed to provide accurate, real-time monitoring of direct currents in both unidirectional and bidirectional systems. Housed in a compact and robust package, the ICD integrates a shunt-based sensing element, a 16-bit Sigma-Delta analog-to-digital converter (ADC), and advanced signal processing capabilities to deliver high-resolution current, voltage, and temperature readings. It is optimized for applications requiring fast and reliable feedback over a CANbus 2.0A/B interface, supporting transmission rates up to 1 Mbit/s.

The device is engineered for use in harsh electrical environments, with an input voltage range from 5.5 V to 26 V, and operational ambient temperatures from -40°C to +105°C. It measures current ranges up to ±500 A, with overcurrent events detectable up to 2500 A, making it suitable for high-load systems. The sensor also supports multiple programmable features, including filter settings, measurement intervals, wake-up thresholds, and sleep mode behaviors, enhancing its adaptability across various applications.

All measurement and diagnostic data—including internal temperature, supply voltage, and device status—are digitally accessible, offering system designers a complete power monitoring solution in a single, integrated component. The ICD Series is particularly well-suited for precision current measurement in automotive electrification, industrial energy systems, and battery-powered platforms where space, accuracy, and digital communication are critical.

Key features of the ICD Shunt-based Current Sensors:

• High Current Measurement Range up to ±500 A, with overcurrent detection up to 2500
• Integrated 16-bit ADC
• CANbus 2.0 Communication: Supports data transmission rates up to 1 Mbit/s
• Sleep Mode Functionality
• Measures its own current consumption and supply voltage, providing diagnostic information

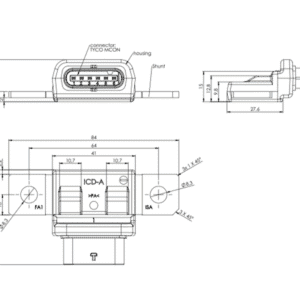

• Compact Design
• Wide Operating Voltage Range: 5.5V to 26V
• High Accuracy: ±0.1% of the measured value

* Customization of measurement ranges and communication settings to suit specific application requirements.

Typical applications for the ICD Shunt-based Current Sensors:

• Automotive Systems: Battery management, fuel cell monitoring, and electric vehicle power systems.
• Energy Storage Systems: Precise current measurement in battery storage applications.
• Industrial Power Management: Monitoring current in industrial equipment and power distribution systems.
• Renewable Energy Systems: Current sensing in solar and wind energy applications.

Isabellenhütte has been one of the world’s leading providers of ultra-modern measurement technology systems for years as a proven specialist in the precise measurement of high currents. We offer our customers precision measurement systems with exceptional performance data under the brand name ISAscale®. Please visit www.isabellenhuette.de for more information on ISAscale® or contact one of our technical engineers today.
