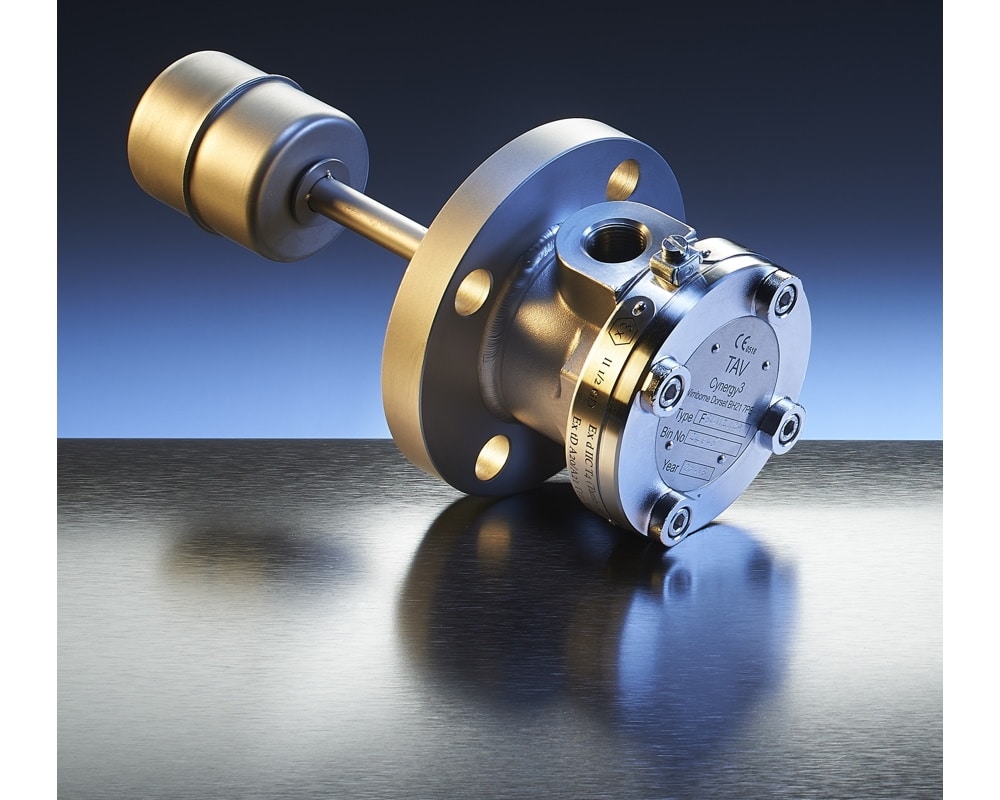

Cynergy3 TAV F31 Flange Mount Vertical Float Switch Series

Cynergy3 TAV F31 Flange Mount Vertical Float Switch Series
  • Cynergy3

Product Features

  • Flameproof flange mount float switches
  • Vertical mounting, up to 4 point level switches (SPST or SPDT)
  • ATEX Certified for use in Zone 1 and 2 hazardous areas
  • Each device is fully custom designed for a particular operation
  • ATEX

Applications

  • Test and Measurement

Description

The F31 flameproof flange mount vertical switches from Cynergy3 are part of their TAV brand of fully customisable fluid handling components specialising in provision for harsh and hazardous environments. These switches are top mounted via flanged connection, from the outside of the tank, and offer 1, 2, 3 or 4 point level SPST or SPDT switch configurations. All F31 float switches are custom designed to a particular application, based on the SG of the fluid, maximum temperature and pressure required, flange size, distance between the mounting face to the switching point, switching action and other requirements. They are PED and ATEX certified (Ex II 1 / 2 G D, Ex d IIC T4 and Ex tD A20/A21 T110°C IP6X) for use in Zone 1 and 2 hazardous areas

  • Flameproof flange mount float switches
  • Vertical mounting, up to 4 point level switches (SPST or SPDT)
  • Each product fully customised for a particular application, no minimum order quantity
  • IP68 stainless steel enclosure
  • ATEX Certified for use in Zone 1 and 2 hazardous areas
  • Temperature range between -20°C and +135°C (depending on float material)



Typical applications for the Cynergy3 TAV F31 series of float switches include:

  • Water, diesel, oil and hydraulic tanks and reservoirs
  • Chemical and petrochemical storage and process control
  • Other harsh industrial and hazardous environments



This product is offered custom-designed as standard – please speak to our technical sales team to discuss your requirement.

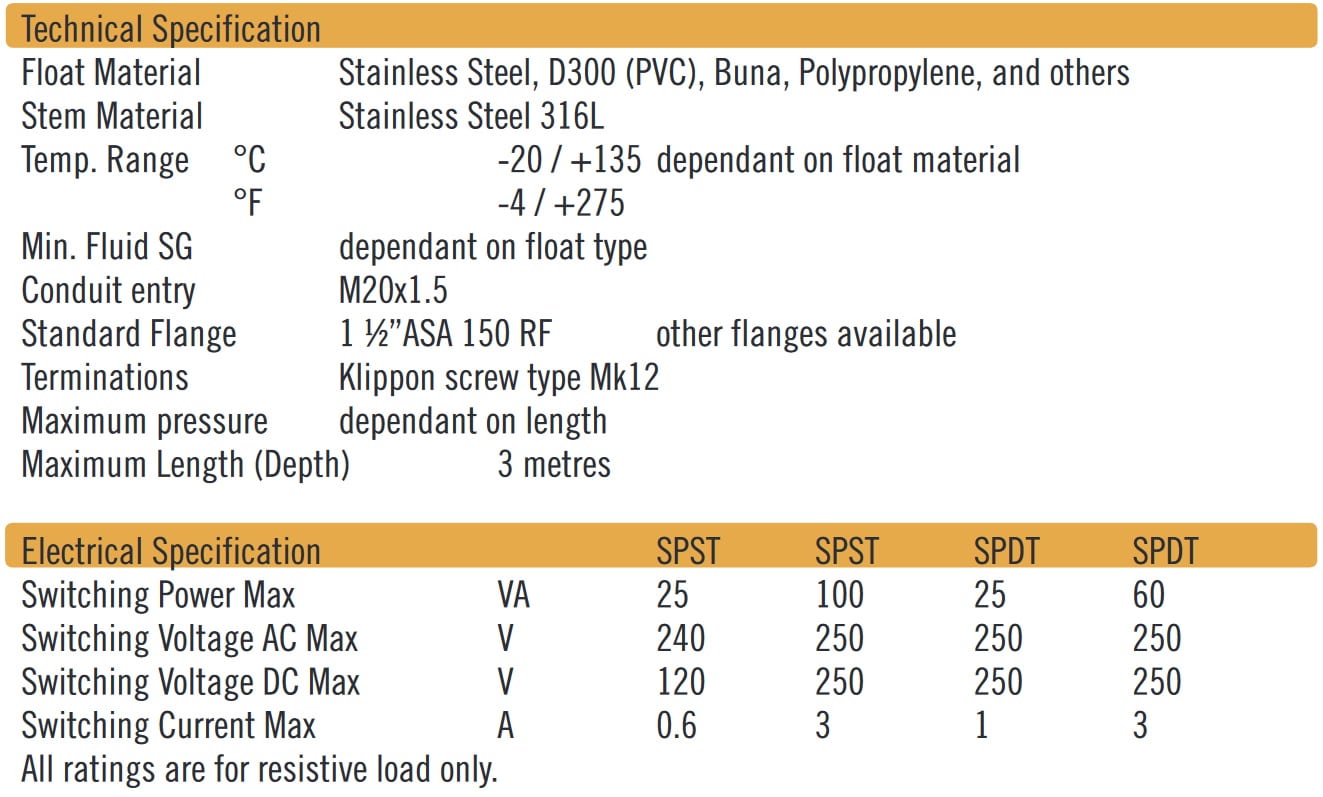

The below table gives the full specifications for the Cynergy3 TAV F31 float switches:

Cynergy3 TAV F31 series specifications



Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Series / Model

Temperature Range (°C)

Configuration

Termination / Connection Type

RoHS Compliant Product – Cynergy3

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
