Stellar Technology LDP990 Series

Stellar Technology LDP990 Series
Stellar Technology LDP990 Series
Stellar Technology LDP990 Series
  • Stellar Technology

Product Features

  • Multipurpose clevis pin load cell with extra robust electrical connectors
  • Shock and vibration resistant
  • All welded stainless steel construction
  • Standard calibration is 5 points (0, 50%, 100%, 50%, 0) in both tension and compression
  • Temperature effect on zero ±0.008% FSO/°F
  • Temperature effect on span ±0.005% Reading/°F
  • Zero balance ±1% FSO
  • ATEX
  • UL

Applications

  • Oil & Gas
  • Renewables

Description

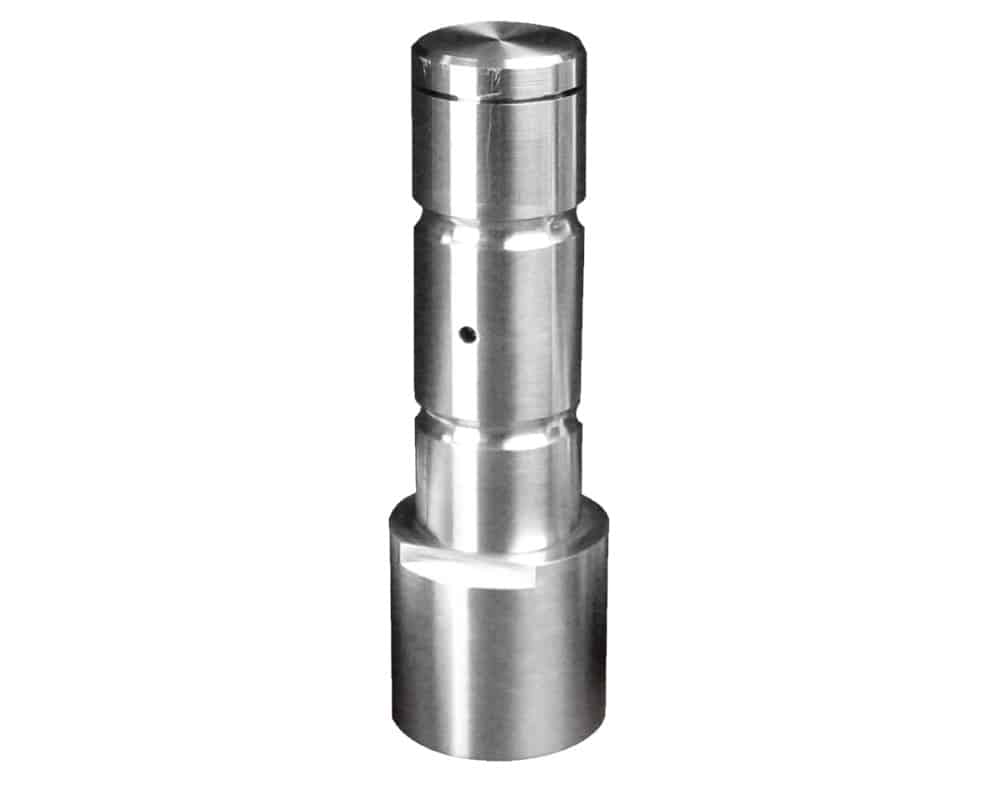

The LDP990 multipurpose clevis pin load cell from Stellar Technology offers maximum load ranges from 3k lbs to 200k lbs with an accuracy of ±0.2% FSO typical (repeatability). The LDP990 series from Stellar Technology is designed specifically for applications where clevis pins, shear pins, shear axles or pulley shafts are carrying the load, these load pins are ideal for real time force monitoring of loads carried by these types of devices. Constructed of all welded stainless steel and are hermetically sealed to meet the most severe operating conditions, they are also available with internal amplifiers providing high level analog and digital outputs.

  • Multipurpose clevis pin load cell
  • Maximum load range from 3k lbs to 200k lbs
  • Temperature range −65°F (-53.9°C) to +250°F (+121.1°C)
  • Tension or compression
  • Repeatability of ±0.2% FSO (typical)
  • Electrical output of 2mV/V (nominal)
  • All welded stainless steel construction
  • Temperature effect on zero of ±0.008% FSO/°F
  • Temperature effect on span of ±0.005% reading/°F
  • Zero balance of ±1% FSO
  • Shock and vibration resistant

Optional features for the Stellar Technology LDP990 series include:

  • Shackle kit w / orientation bracket
  • Customer specified electrical termination
  • Internal amplifiers for high level analog / digital outputs
  • Intrinsically approved 4-20mA output (ATEX and CSA)
  • Special full scale ranges
  • Submersible versions to 16,000 ft in sea water
  • Temperature range (mV/V unit) −320°F (-195.6°C) to +400°F (+121.1°C)
  • Special calibrations

Potential markets for the Stellar Technology LDP990 series include:

  • Aerospace
  • Industrial automation
  • Defence systems
  • Alternative energy

Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Options

Series / Model

Temperature Range (°C)

Output

Capacity

, , , , , , , , , , ,

Repeatability

Stellar Technology LDP990 Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Stellar Technology LDP990 series clevis pin load cell datasheet
