Emerson Paine™ 211-37-520 Series

Emerson Paine™ 211-37-520 Series
Emerson Paine™ 211-37-520 Series
Emerson Paine™ 211-37-520 Series
  • Paine

Product Features

  • High pressure and temperature transducer
  • Considered as an ideal solution for downhole, subsea and industrial design
  • Full scale (F.S.) sensitivity of 2.6mV/V ±0.2%
  • External case pressure up to 20,000 PSI
  • All-welded, sealed construction provides durability, resilience and stability in harsh and corrosive environments
  • Non-linearity and hysteresis combined: ±0.15% F.S. max (BSLM)

Applications

  • Oil & Gas
  • Subsea

Description

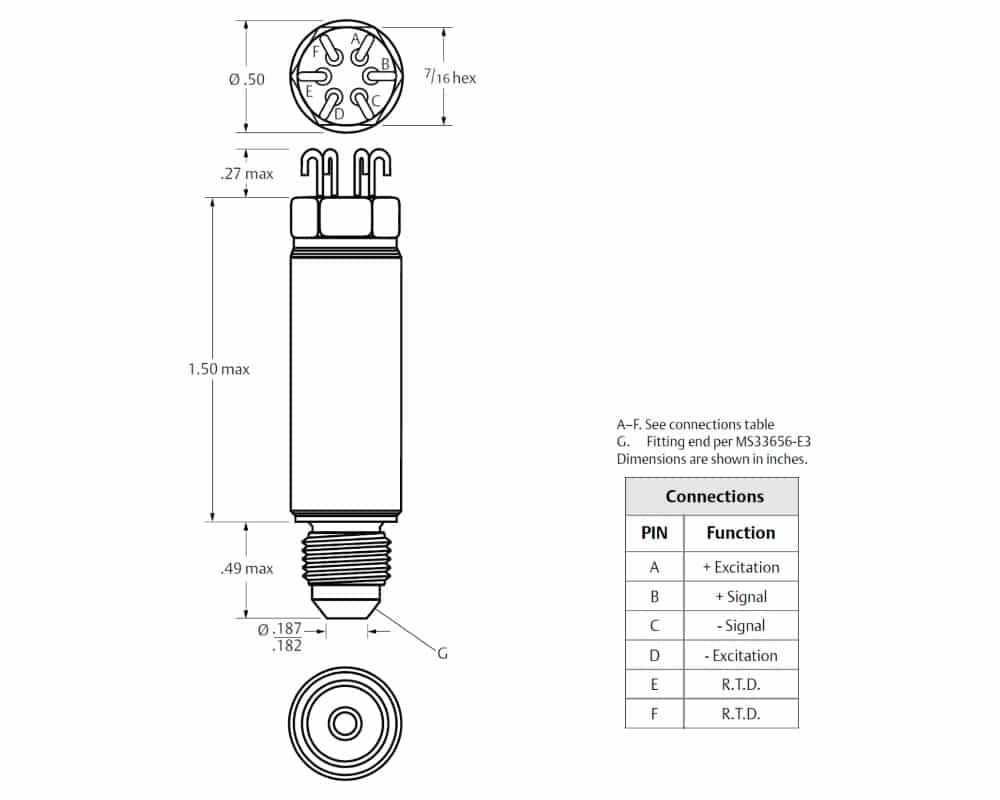

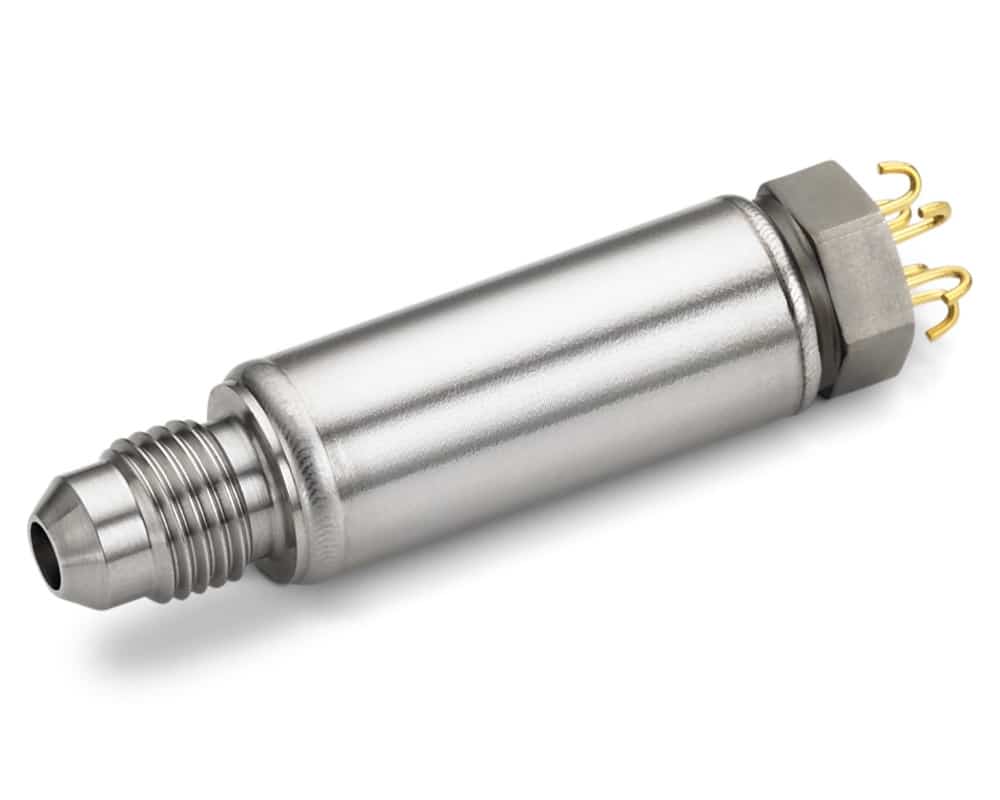

Emerson’s Paine™ 211-37-520 high pressure and temperature transducer is a high pressure/high temperature (HP/HT) combination transducer ready to perform in extreme conditions. This transducer from Emerson is engineered to withstand application temperatures of up to 204°C (400°F) and offer a pressure measurements of up to 30,000 PSIA. With a small form factor and sealed, all-welded construction, this device also has the ability to perform in harsh environments, making it an ideal solution for down-hole, subsea and industrial design.

  • High pressure and temperature transducer
  • Pressure range from 0-5,000 PSIA up to 0-30,000 PSIA
  • Temperature range −40°C to +204°C
  • Compensated temperature +23°C to +176°C
  • Process media is compatible with alloy UNS N07718 solution annealed and aged to a minimum hardness of 40HRC
  • External case pressure up to 20,000 PSI
  • Accuracy of 0.75% full scale
  • Output of mV/V
  • Full scale sensitivity of 2.6mV/V ±0.2%
  • Non-linearity and hysteresis combined of ±0.15% full scale max (BSLM)
  • Pressure fitting per MS33656-E3
  • Offered in a small ½ inch diameter form factor
  • All-welded, sealed construction provides durability, resilience and stability in harsh and corrosive environments
  • Customisation transducer options available for fit-for-use designs



Many new exciting industries are now using the Emerson’s Paine™ 211-37-520 series because of its rugged construction, accuracy, stability, and long term repeatability.

Potential applications for the Paine™ 211-37-520 series include:

  • Wireline and rotary steering tools
  • Hydraulic flow pressure and temperature monitoring
  • Oil and gas exploration and production
  • MWD, PWD and LWD tools



Please see below the pressure table for the Paine™ 211-37-520 series, which includes details on standard products available as well as proof and burst pressure ratings:

Paine™ 211-37-520 Specifications



Specifications

Weight 0.00000 kg
Dimensions 0.50 × 0.00 × 1.50 mm
Series / Model

Accuracy

Output

Temperature Range (°C)

Process Media

Pressure Range

, , , , , ,

Emerson Paine 211-37-520 Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Emerson Paine™ 211-37-520 high pressure and temperature transducer series datasheet
