High Pressure Transducer

Emerson Paine™ 310-38-0050 Series

  • Ultra miniature high pressure transducer
  • Designed to withstand harsh environments  of high cycle, high pressure and high temperature applications
  • Drift less than 0.05% of full scale over 60 days
  • Output at zero pressure of 0.1 mv/v ±0.01 mv/v at 75°F or 23°C
  • Total Error Band is ±0.025 % of full scale sensitivity for exceptional accuracy
  • Customisable transducer options available for fit-for-use designs
  • Paine

Specifications

Weight 0.00000 kg
Dimensions 1.50 x 0.00 x 0.37mm
Accuracy

±0.025% FS
Output

mV/V
Pressure Range

, ,

Process Media

Compatible with alloy UNS NO7718 solution annealed and aged to a minimum hardness of 40HRC Inconel® 718
Series / Model

Temperature Range

-40 to +218°C

High Pressure Transducer

Emerson Paine™ 310-38-0050 Series

  • Ultra miniature high pressure transducer
  • Designed to withstand harsh environments  of high cycle, high pressure and high temperature applications
  • Drift less than 0.05% of full scale over 60 days
  • Output at zero pressure of 0.1 mv/v ±0.01 mv/v at 75°F or 23°C
  • Total Error Band is ±0.025 % of full scale sensitivity for exceptional accuracy
  • Customisable transducer options available for fit-for-use designs
  • Paine

Request a Quote

Email Datasheet

Talk to our engineering team

Get help specifying or customising the right product for your application.

By email

Related High-Temperature Pressure Sensors items

Custom Component Solutions

Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

See what's possible

Related High-Temperature Pressure Sensors Components

ICS-NH PTM-10 Miniature Pressure Temperature Transmitter

ICS-NH PTM-10 Pressure Temperature Transmitter
  • Combined pressure and temperature transmitter in miniature design
  • Pressure ranges from 0–30 psig up to 0–8,700 psig
  • Ratiometric pressure output 0.5–4.5 V @ 5 V supply
  • Integrated PT1000 2-wire temperature output
  • Operating temperature range −40 °C to +150 °C (approx.)
  • Stainless steel housing with multiple connection options
View Product
Download Datasheet

ICS-NH MPT6C Series Cryogenic Pressure Transmitter

ICS-NH MPT6C Cryogenic Pressure Transmitter
  • Cryogenic pressure transmitter for extreme temperature applications
  • Pressure ranges from 2 bar to 2,000 bar
  • Operating temperature from −200 °C to +260 °C
  • Multiple output options including voltage, current and digital
  • Fully welded stainless steel construction
  • Vibration tested to DO-160 Cat. H and R
View Product
Download Datasheet

ICS-NH MPT6 Series

Actively compensated miniature pressure transmitter
Miniature actively compensated pressure transmitter with 0 to 30 psi to 0 to 15,000 psi ranges and 5 to 32VDC supply. Offers voltage, current, bridge, I²C and SPI outputs with DO-160 Cat. H/R vibration testing
View Product
Download Datasheet

ICS-NH MPT4A Miniature Pressure Transmitter

MPT4A Miniature Pressure Transmitter MPT4A
  • Miniature pressure transmitter with extremely compact design
  • Pressure ranges from 0–30 psi up to 0–3,000 psi
  • Ratiometric output 0.5–4.5 V @ 5 V supply
  • Supply voltage 4.5–5.5 V DC
  • Fast response time 0.1 ms
  • Stainless steel construction with multiple connection options
View Product
Download Datasheet

ICS-NH DPH100 Series

Differential pressure sensor
SOI differential pressure sensor with 0 to 400kPa range, 300 bar static pressure capability and <1ms response. Features 75mVDC output, 316L stainless steel media contact and -65°C to +170°C operation.
View Product
Download Datasheet

ICS-NH C10 Type

High Precision Pressure Sensor
High precision thin film pressure sensor with 10 mm cup diameter, 1.6 bar to 2,500 bar ranges and stainless steel full-bridge construction.
View Product
Download Datasheet

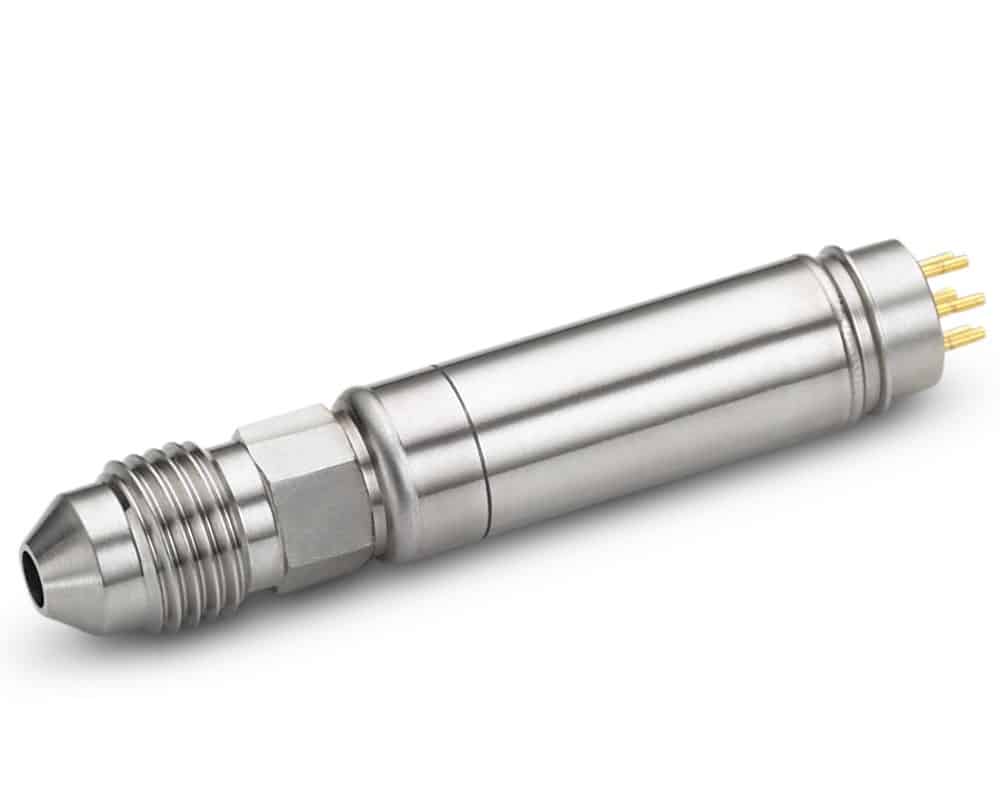

Providing critical, real-time data, the Paine™ 310-38-0050 high pressure transducer series from Emerson offers ultra-miniature, high precision measurement devices. This compact, yet durable, transducer series is specifically designed for harsh environments, including applications with extreme down-hole high cycle with a high pressure range of 0 – 25000 PSIA and high temperatures of up to +218°C. Emerson’s Paine™ 310-38-0050 transducer is engineered for measurement accuracy and the enhanced real-time data of these sensors allows for improved production efficiency.

  • Ultra miniature pressure transducer
  • Pressure ranges available from 0 – 5,000 PSIA up to 0 – 25,000 PSIA
  • Temperature range −40°C to +218°C
  • Drift less than ±0.05% of full scale over 60 days
  • A total error band of less than ±0.025%
  • Accuracy of 0.025% full scale
  • Output of mV/V
  • Process media is compatible with alloy UNS NO7718 solution annealed and aged to a minimum hardness of 40HRC Inconel® 718

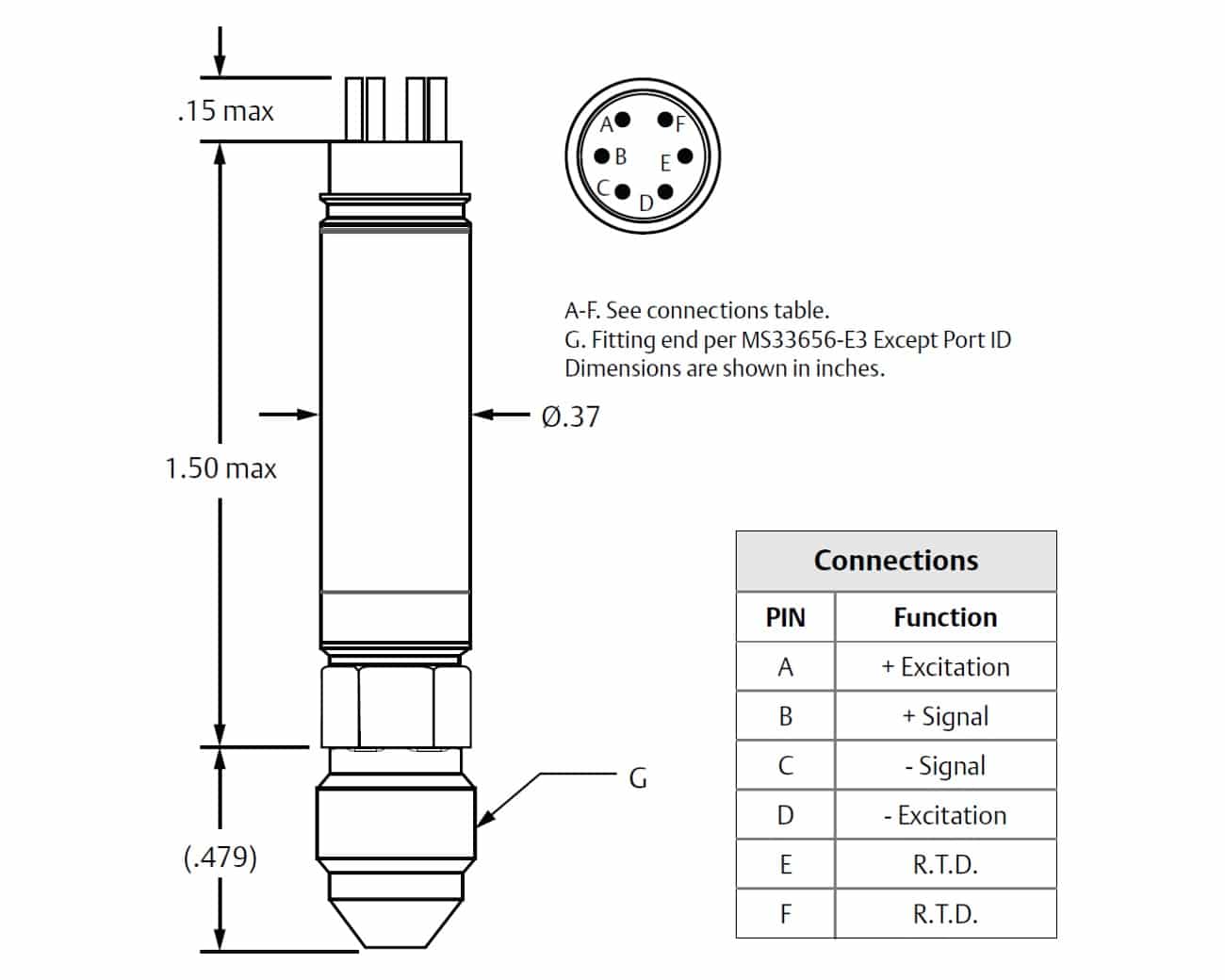

  • Ultra-Miniature 0.37 in (0.93 cm) diameter design provides a compact and narrow form factor to meet installation requirements
  • Engineered to withstand the harsh environments of high cycle, high pressure and high temperature applications
  • Precise, real-time data optimizes production parameters
  • Customisation options available for fit-for-use designs



The Paine™ 310-38-0050 additional features:-

  • Downhole tools (MWD, LWD, wireline and more)
  • Artificial lift and subsea risers
  • Subsea hydraulic controls



Please see the below pressure table for the Paine™ 310-38-0050 series, which includes details on standard products available as well as proof and burst pressure ratings:

Paine 310-38-0050 Specifications
