Emerson Paine™ 320-12-0010 Series

Emerson Paine™ 320-12-0010 Series
Emerson Paine™ 320-12-0010 Series
Emerson Paine™ 320-12-0010 Series
  • Paine

Product Features

  • Precision pressure and temperature transmitter with a Temperature Output of °F or °C
  • Micro-processor based technology provides precise digital measurements for optimal accuracy and a temperature resolution of 12 Bits minimum
  • Customisable transmitter options available for fit-for-use designs

Applications

  • Oil & Gas
  • Subsea

Description

Engineered with the latest in micro-processor based technology, Emerson’s Paine™ 320-12-0010 precision pressure and temperature transmitter series provides digital measurements through an easy-to-use communication interface. This transmitter from Emerson also features an all-welded small external form factor that is capable of operating in corrosive environments with a pressure range up to 30,000 PSIA and a temperature range of −40°C to +175°C. The Paine™ 320-12-0010 has an excellent long-term stability, also offers reliable performance and accurate digital measurements in harsh application conditions.

  • Precision pressure and temperature transmitter
  • Pressure ranges available from 0 – 5,000 PSIA up to 0 – 30,000 PSIA
  • Temperature range of −40°C to +175°C
  • Temperature resolution of 12 Bits minimum
  • Temperature output of °C or °F
  • Digital output of RS-485
  • Accuracy of ±0.05% full scale
  • Process media which are Fluids and gases compatible with NO7718, solution annealed and aged to a maximum hardness of 40 HRC
  • Micro-processor based technology provides precise digital measurements for optimal accuracy
  • Designed with a simple and easy-to-use communication interface for enhanced efficiency
  • Small external form factor is durable and withstands corrosive environments
  • High precision, digital transmitter engineered with long-term stability for consistent and reliable performance
  • Customisation options available for fit-for-use designs



Utilising the latest in micro-computer based technology providing precise digital measurements in a simple and easy to use communications interface

Potential applications for the Paine™ 320-12-0010 series include:

  • Down-hole tools (MWD, LWD, wireline and more)
  • Offshore energy exploration
  • Artificial lift and subsea rises
  • Subsea hydraulic controls



Please see below the pressure table for the Paine™ 320-12-0010 series, which includes details on standard products available as well as proof and burst pressure ratings:

Paine 320-12-0010 Specifications



Specifications

Weight 0.00000 kg

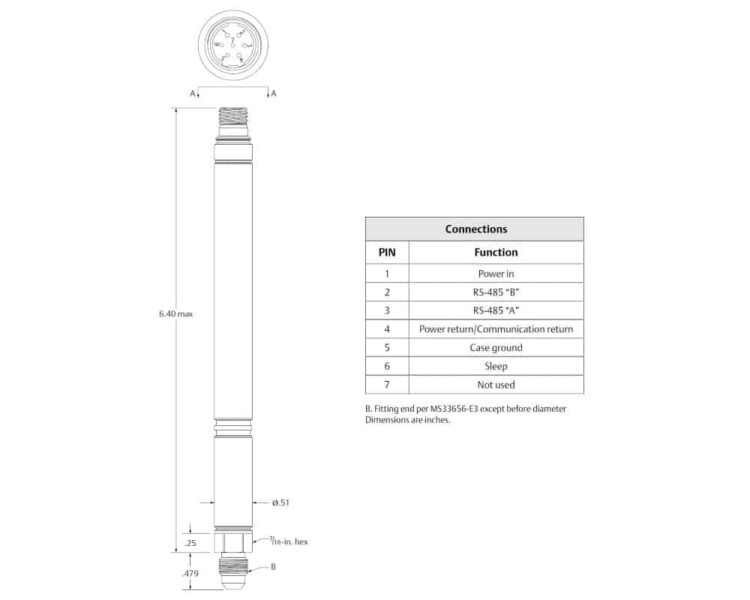

Dimensions 0.51 × 0.00 × 6.40 mm
Series / Model

Accuracy

Output

Temperature Range (°C)

Process Media

Pressure Range

, , ,

Emerson Paine 320-12-0010 Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Emerson Paine™ 320-12-0010 precision pressure and temperature transducer series datasheet
