Emerson Paine™ 320-10-010 Series

  • Paine

Product Features

  • High precision pressure and temperature transmitter with programmable temperature Output: °F or °C
  • Withstands harsh and extreme environments for durability in tough applications
  • Customisable transmitter options available for fit-for-use designs
  • CSA


  • Exempt

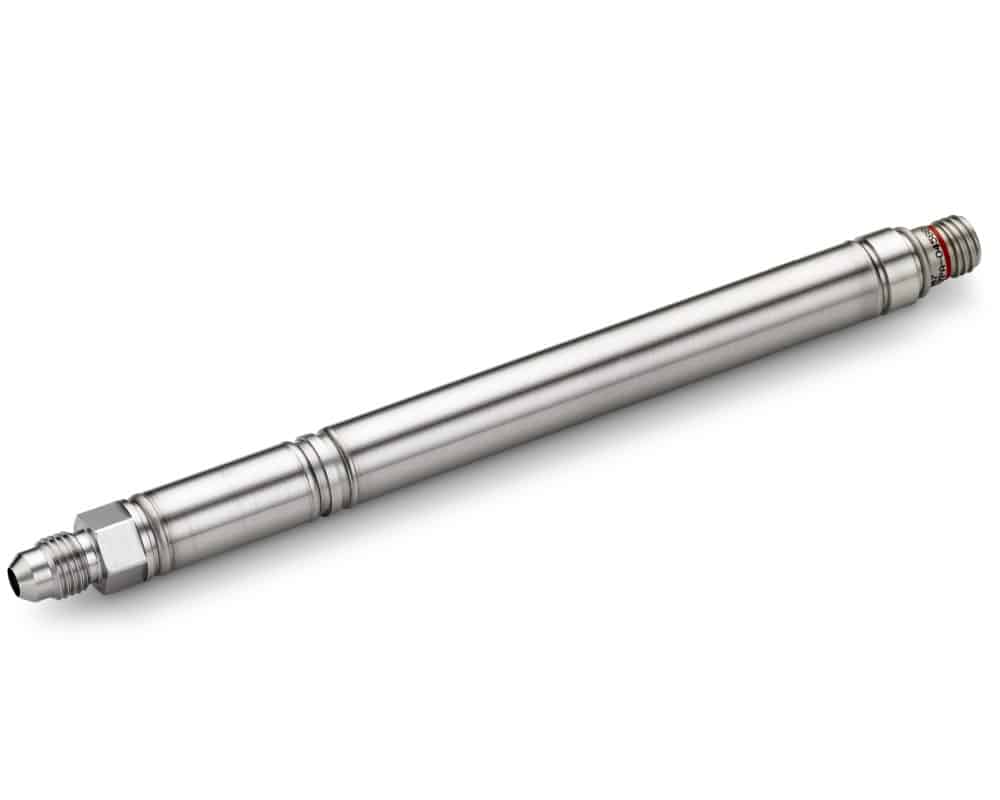

Engineered to provide digital measurement accuracy, Emerson’s Paine™ 320-10-010 high precision pressure and temperature transmitter series is an ideal solution for new tool designs and retrofits. This transmitter from Emerson comes with digital network flexibility as well as programmability, and is fully compensated and calibrated for pressure ranges of up to 30,000 PSIA. This durable device withstands extreme conditions and is an ideal choice for down-hole drilling pressure and temperature measurement at temperatures of −40°C to +155°C.

  • High precision pressure and temperature transmitter
  • Pressure ranges available from 0 – 5,000 PSIA up to 0 – 30,000 PSIA
  • Temperature range of −40°C to +155°C
  • Calibrated temperature range of +23°C to +150°C
  • Total error of digital pressure output 0.04% full scale
  • Programmable temperature output: °C or °F
  • Digital output options of RS-232, RS-485, Modbus, CANbus, CANopen & SPI
  • Resistant to highly corrosive media
  • Process media which are fluids and gases compatible with NO7718, solution annealed and aged to a maximum hardness of 40 HRC
  • Withstands harsh and extreme environments for durability in tough applications
  • Fully compensated and calibrated to offer exceptional accuracy across high pressure ranges
  • Digital network provides flexibility and programmability for varying applications
  • Customisation options available for fit-for-use designs


Potential applications for the Paine™ 320-10-010 series include:

  • Down-hole tools (MWD, LWD< wireline and more)
  • Offshore energy exploration
  • Artificial lift and subsea risers
  • Industrial control systems and automation

Please see the datasheet in the Technical Library tab for the for Paine™ 320-10-010 series, which includes details on standard products available as well as proof and burst pressure ratings.


Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.


Weight 0.00000 kg

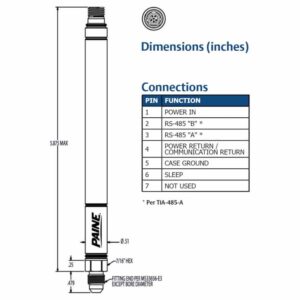

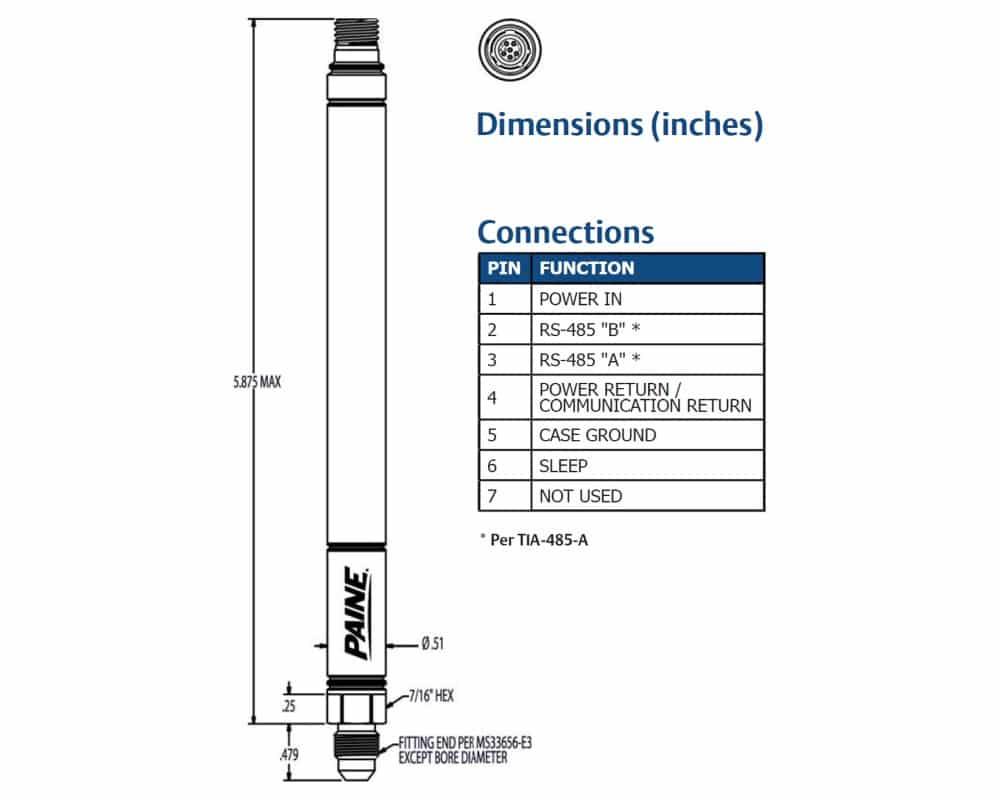

Dimensions 5.88 x 0.00 x 0.51mm


, , , , ,

Pressure Range

, ,

Process Media

Series / Model

Temperature Range (°C)

Emerson Paine 320-10-010 Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:



Emerson Paine™ 320-10-010 digital, high precision, pressure and temperature transmitter series datasheet
  • Energy
  • Oil & Gas
  • Subsea
  • Paine

Emerson Paine™ 320-10-010 Series
