Emerson Paine™ 212-30-010-0500

Emerson Paine™ 212-30-010-0500
Emerson Paine™ 212-30-010-0500
Emerson Paine™ 212-30-010-0500
  • Paine

Product Features

  • Miniature satellite and space pressure transmitter
  • Pressure range of 0 – 500 PSIA
  • All welded stainless steel construction
  • Input voltage of ±12 – 15VDC
  • Temperature range of −40°C to +60°C
  • Output voltage of 0.1 to 5.1VDC
  • Accuracy of ±1.5%

Applications

Description

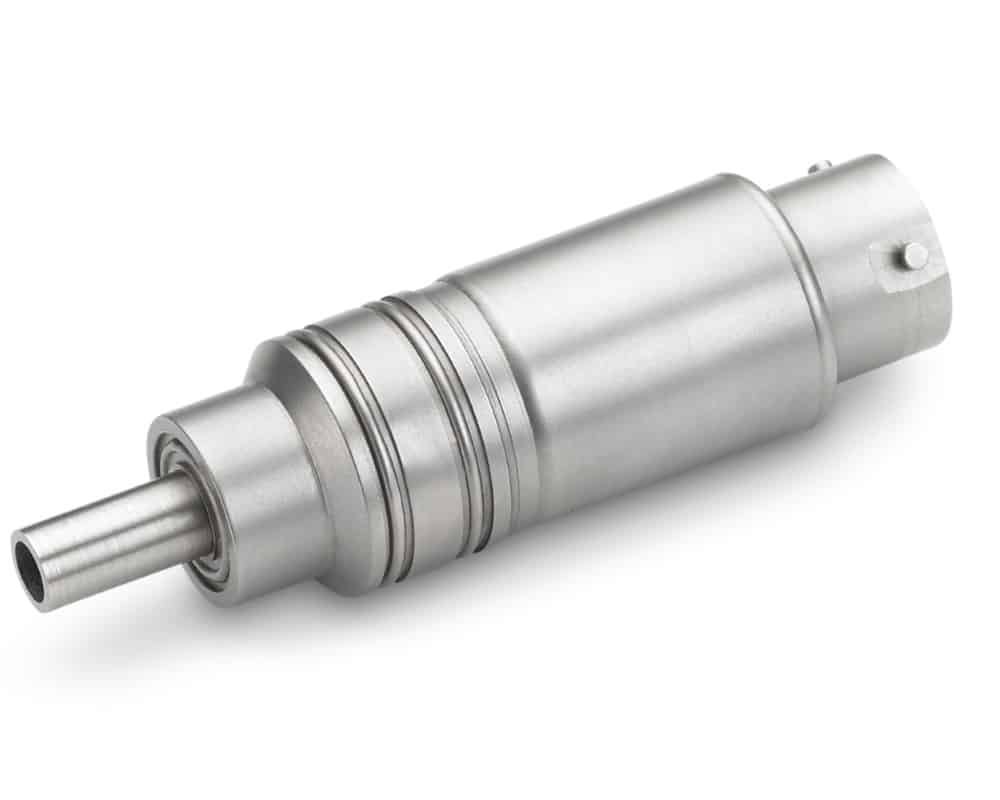

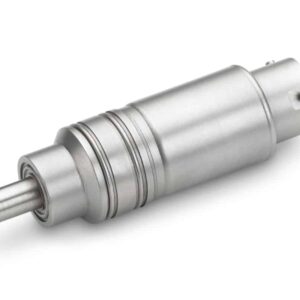

Emerson’s Paine™ 212-30-010-0500 miniature satellite and space pressure transmitter series is designed with Class ‘S’, QML-V / ELDRS free electronics to meet EEE INST-002/ MSFCSTD- 3012 Level 1 standards. This transmitter series from Emerson offers a pressure range of 0 – 500 PSIA and provides reliable measurement in mission critical applications. This high-performance transmitter features low mass of 75 grams, radiation hardening to 100KRad (Si) total dose and accuracy of ±1.5% full scale. Applications include fuel tank pressure and thrust-er propellant pressure.

  • Miniature satellite and space pressure transmitter
  • Pressure range of 0 – 500 PSIA
  • All welded stainless steel construction
  • Input voltage of ±12 – 15VDC
  • Temperature range of −40°C to +60°C
  • Designed with Class ‘S’, QML-V / ELDRS free electronics to meet EEE INST-002/ MSFCSTD- 3012 Level 1 standards
  • Performs in orbital environments with radiation hardening/rating to 100KRad (Si) total dose
  • Output voltage of 0.1 to 5.1VDC
  • Accuracy of ±1.5% of the full scale over the calibrated temperature range
  • Features immunity to Single Event Latch up (SEL)
  • Customisation options available for fit-for-use designs
  • Process media any compatible with 15-5 PH CRES & 321 CRES



The 212-30-010-0500 offers an all welded stainless steel construction that provides high measurement performance, accuracy and reliability in mission critical applications.

Potential applications for the Paine™ 212-30-010-0500 include:

  • Fuel tank pressure monitoring
  • Thrust pressure monitoring
  • Pressure regulator systems
  • Oxygen pressure monitoring
  • Space probe servo valve controls
  • ROV maneuvering controls

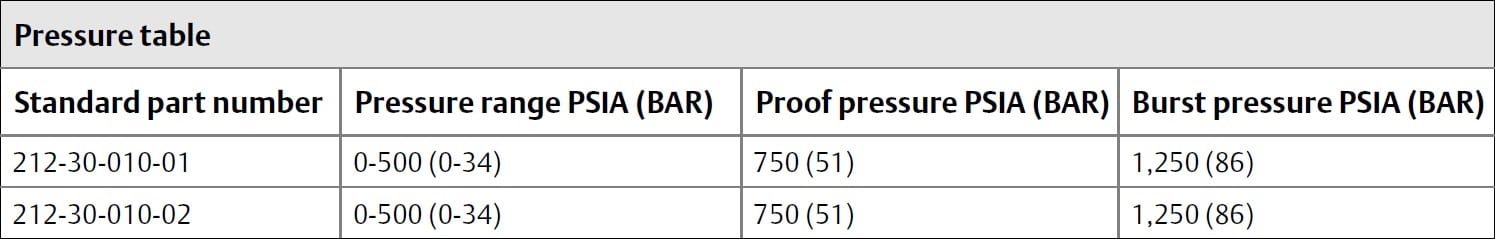

Please see the pressure table below for the Paine™ 212-30-010-0500, which includes details on standard products available as well as proof and burst pressure ratings:

Emerson Paine™ 12-30-010-0500 specifications



Specifications

Weight 0.07500 kg

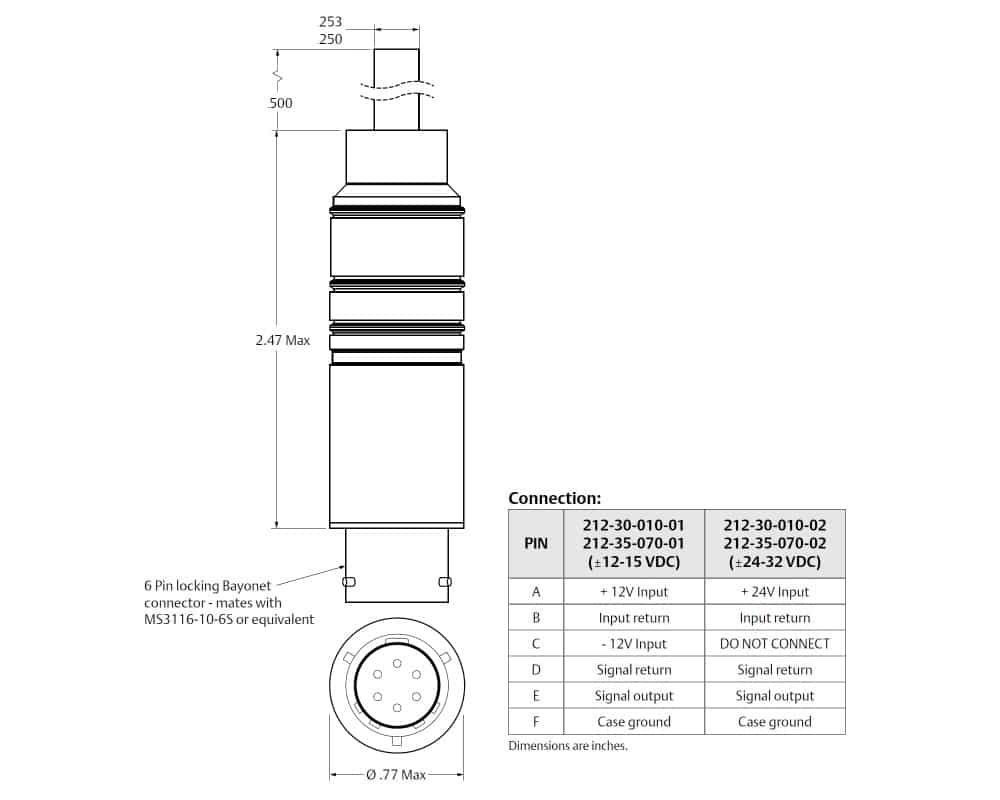

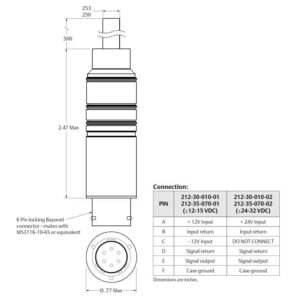

Dimensions 0.77 × 0.00 × 2.47 mm
Accuracy

Series / Model

Output

Temperature Range (°C)

Process Media

Pressure Range

Emerson Paine™ 212-30-010-0500

Emerson Paine™ 212-30-010-0500
Emerson Paine™ 212-30-010-0500
Emerson Paine™ 212-30-010-0500
