| Weight | 0.00000 kg |
|---|---|

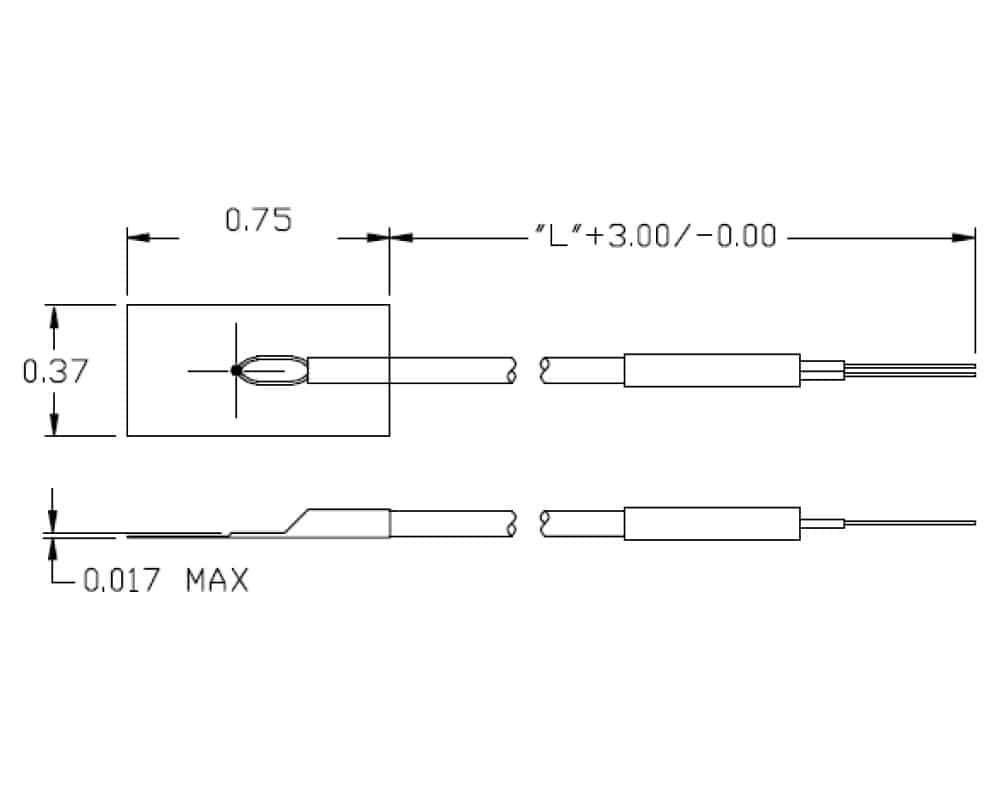

| Dimensions | 0.02 x 0.37 x 0.75mm |
| Accuracy | ±0.75%, ±1°C |
| Operating Current | 0.5mA |
| Mounting / Size | |
| Response Time | 0.25s (grounded), 0.5s (ungrounded) |
| Series / Model | |
| Temperature Range | -184 to +260°C |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

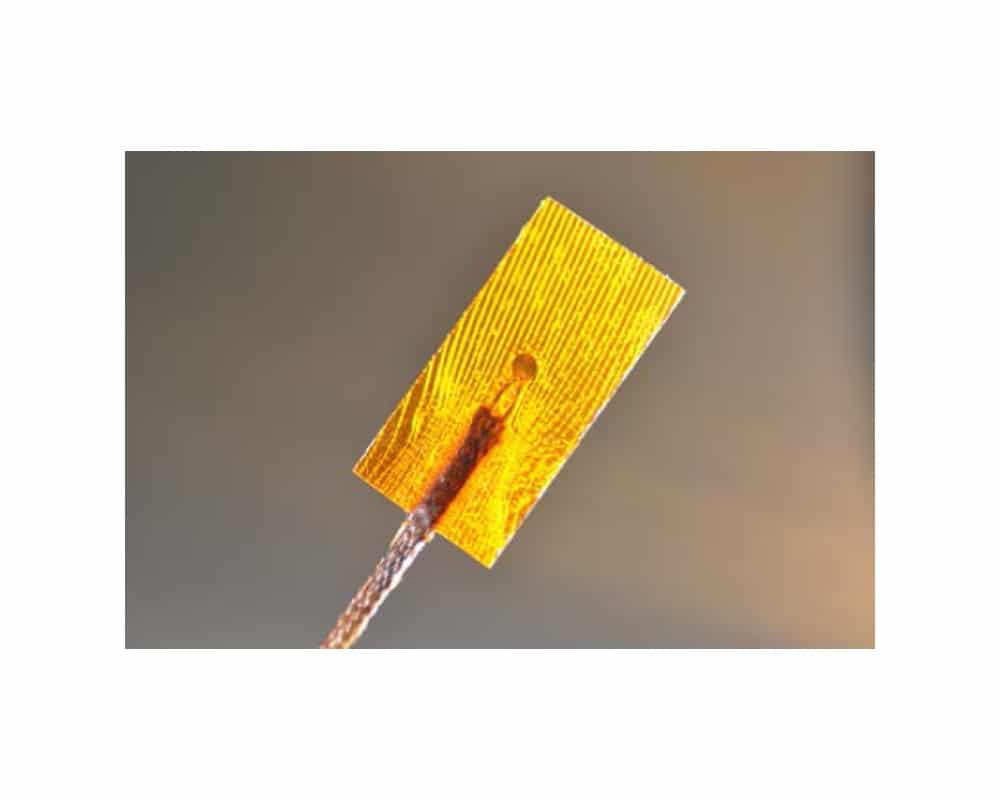

The 26722 Stikon® type T (Copper/Constantan) thermocouple temperature sensor series from RdF are embedded in a paper thin laminate intended for surface temperature measurement applications. These thermocouples have a response time of 0.25s (grounded) and 0.5s (ungrounded) for the sensor to reach 63.2% of a change in mounting surface temperature. This type T thermocouple offers an operating temperature range of -184°C up to +260°C (continuous), +371°C (short term) and provides an accuracy of ±1°C or ±0.75%. The 26722 series from RDF are without pre-applied cement so you can select the adhesive or clamp for extended temperature capability. These thermocouples use a Kapton® case material.
