ATEX
What is ATEX?
Objective of 2014/34/EU
The objective of ATEX is to ensure the free movement of Ex products within the European Union, by offering one harmonised compliance procedure accepted by all EU countries, eradicating the need for differing national standards.
The Directive removes barriers to trade by defining Essential Health and Safety Requirements (EHSRs) for Ex equipment. The EHSRs form the basis of an EU-accepted product conformity approval process that examines the potential ignition sources of equipment intended for use in explosive atmospheres.
ATEX Product Certification
ATEX product certification (or EU-Type Examination) is the verification of the design specification of a manufacturer’s product in relation to a series of relevant standards laid out under the directive.
This certification process must be undertaken by an ATEX Notified Body. This is an organisation that is appointed by its national government to issue ATEX certificates and conduct periodic surveillance of quality management systems, where necessary.
The certification process includes testing and assessment of the product, with an ATEX certificate and report being issued for conforming product.

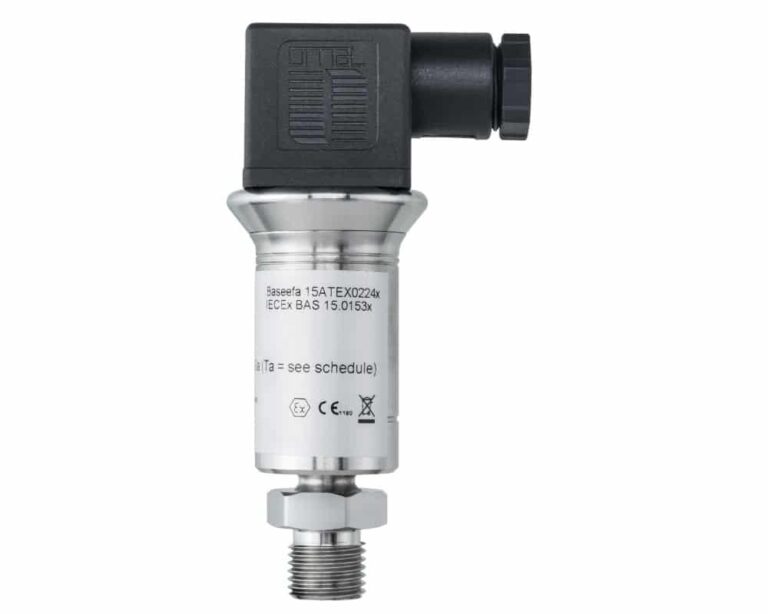

- Industrial Pressure Transducer (BSP)
- Piezo-resistive ceramic sensor
- ATEX and IECEx approved for use in Zone 2 Hazardous Areas (Ex II 1G Ex ia IIC T4 Ga (Ta – see datasheet))
- Excellent stability
- Excellent stability
- Excellent media compatibility
- Cable end float switches
- ATEX Ex II 1 G Ex ia IIC T6 certified for use in Hazardous areas
- High density polyethylene body
- Self-cleaning body
- Choice of cable length – 5m, 10m or 20m
- Unaffected by humidity, condensation and temperature changes

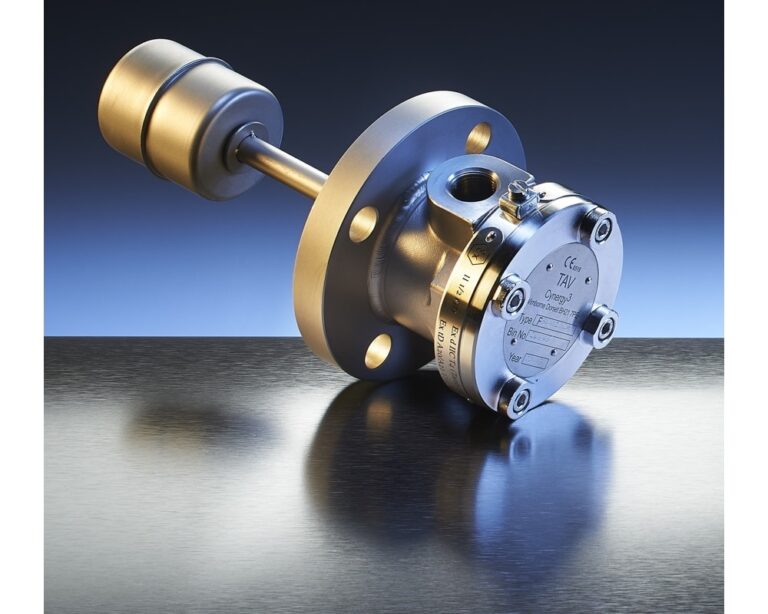

- Flameproof flange mount float switches
- Vertical mounting, up to 4 point level switches (SPST or SPDT)
- ATEX Certified for use in Zone 1 and 2 hazardous areas
- Each device is fully custom designed for a particular operation
- Multipurpose clevis pin load cell with extra robust electrical connectors
- Shock and vibration resistant
- All welded stainless steel construction
- Standard calibration is 5 points (0, 50%, 100%, 50%, 0) in both tension and compression
- Temperature effect on zero ±0.008% FSO/°F
- Temperature effect on span ±0.005% Reading/°F
- Zero balance ±1% FSO
- Shackle ready, rod end load cell
- In line tension
- Variety of thread combinations
- Shock and vibration resistant
- All welded stainless steel construction
- 5 point calibration record traceable to NIST (0, 50%, 100%, 50%, 0)
- Temperature effect on zero ±0.005% FSO/°F
- Temperature effect on span ±0.005% Reading/°F
- Zero balance ±1% FSO
