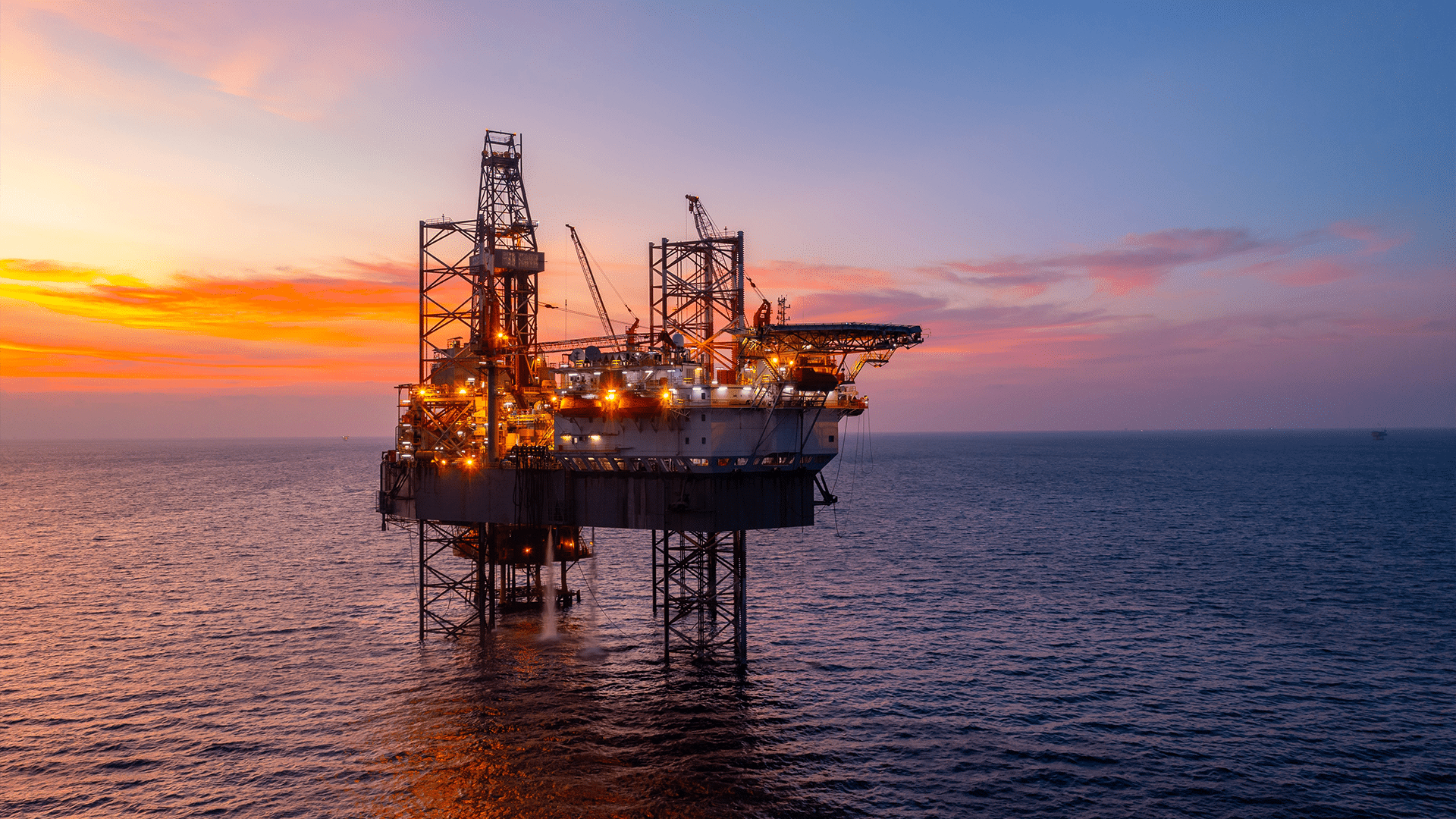

Oil & Gas

With extensive knowledge in the Oil & Gas market, we have successfully helped in projects with major blue-chip companies. From MWD, LWD and completion tools to artificial lift and chemical injection plus many more, we have the knowledge and products to help with whatever gets asked. Offering off-the-shelf products as well as offer many custom solutions to help you achieve your goals.

Oil & Gas

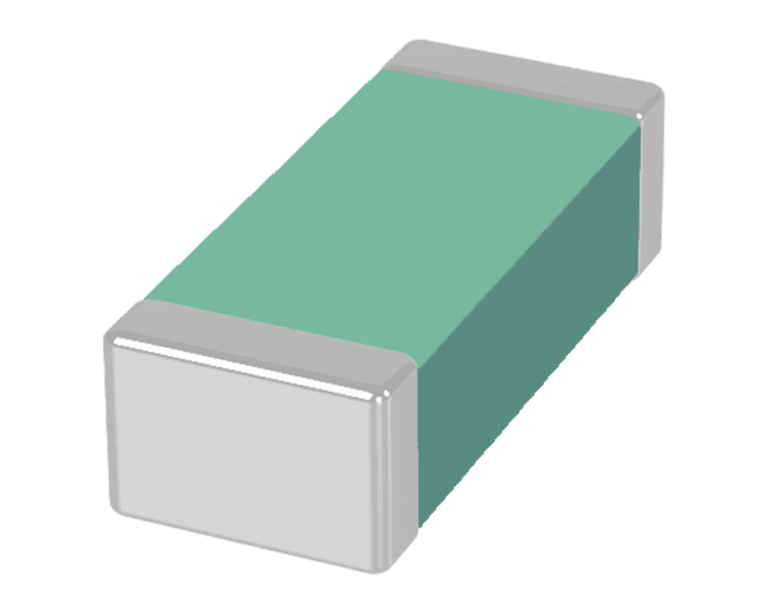

SMD High Temperature Class I Capacitors

High Temperature Class I SMD Capacitor
Capacitance from 0.1pF to 330nF
Voltages from 10V to 2000V
Ultra stable temperature compensating classe I ceramic up to 250°C
Tested in accordance to CECC 32100 and AEC-Q200
Custom voltage, package size, capacitance value on reques

Core Sensors CS15 Series

Non-Clogging submersible pressure transducer
Pressure ranges from 2 PSI to 50 PSI
Flush diaphragm prevents clogging
Hastelloy C276 diaphragm material
IP68 rated
Operating temperature of -40 to +85°C
Compensated temperatures from 0 to +55°C

Core Sensors CS20 Series

Industrial temperature transmitter
RTD sensor type, PT100, Class B
Media temperature range of -40°C up to +200°C *
Operating temperature range of -40°C up to +85°C
Total error at RT & FS of ≤±1%
Maximum pressure of 5,000 PSI
Amplified 4-20mA or 1-5V output signal

Core Sensors CS50 Series

Non-incendive pressure transducer
Pressure ranges from 50 PSI to 30,000 PSI
Accuracy of ≤±0.25% BFSL at 25°C
Stability of ≤±0.25% of FS
Pressure cycles of 100 million
Overpressure of 2x minimum
Burst pressure of 5x or 60,000 PSI

Core Sensors CS51 Series

Non-incendive low pressure transducer
Pressure ranges from 1 PSI up to 49 PSI
Temperature range from −20°C up to +80°C *
Accuracy of ≤±0.25% BFSL at 25°C **
Stability of ≤±0.25% of FS (1 year)
Pressure cycles of 100 million
Overpressure of 2x minimum

Core Sensors CS54 Series

Non-Incendive Differential Pressure Transducer
Differential pressure up to 50 PSI
Line pressure up to 500 PSI
Accuracy of ≤±0.25% BFSL / ≤±0.5% BFSL (2 PSI & below)
Overpressure of 2X or 500 PSI (whichever is less)
Temperature range −40°C to +80°C
Media temperature of -40 to +125°C

Core Sensors CS60 Series

Explosion-Proof Pressure Transducer
Pressure ranges from 50 PSI to 30,000 PSI
One piece diaphragm design – No internal O-rings or welds
Factory sealed stainless steel case – Withstands harsh environments
Accuracy of ≤±0.25% BFSL at 25°C (<10,000 PSI)
Pressure cycles of 100 million
Overpressure of 2x minimum

Emerson Paine™ 210-60-090 Series

Very low thermal sensitivity shift of ±0.01% of F.S. per°C
Small, lightweight manifold style mounting for easy installation
Temperature compensated design provides highly accurate pressure measurements
Shock and vibration resistant design offers highly accurate and reliable pressure monitoring in many operating conditions
Durable solution withstands harsh environments for long-lasting performance
Custom electrical connection and pressure port adaptors are available on request

Emerson Paine™ 210-65-010 Series

Thermal sensitivity shift of ±0.01% of F.S. per °C
Small, lightweight manifold style mounting for easy installation
Shock and vibration resistant design offers highly accurate and reliable pressure monitoring in many operating conditions
Compact design for an easy-to-use differential measurement solution
Durable solution withstands harsh environments for long-lasting performance
Custom electrical connection and pressure port adaptors are available on request

Emerson Paine™ 211-37-520 Series

High pressure and temperature transducer
Considered as an ideal solution for downhole, subsea and industrial design
Full scale (F.S.) sensitivity of 2.6mV/V ±0.2%
External case pressure up to 20,000 PSI
All-welded, sealed construction provides durability, resilience and stability in harsh and corrosive environments
Non-linearity and hysteresis combined: ±0.15% F.S. max (BSLM)

Emerson Paine™ 211-50-070 Series

High pressure and temperature transducer
Considered as an ideal solution for downhole, subsea and industrial design
Offered in a small ½ inch diameter form factor
External case pressure up to 20,000 PSI
Custom designs available on request
All-welded, sealed construction provides durability, resilience and stability in harsh and corrosive environments

Emerson Paine™ 212-40-020 Series

High pressure and temperature transducer
Compact and resilient design withstands harsh environments
Engineered with SOI technology for precise and continuous high temperature measurement
Performs in high pressure and temperature ranges (up to 30000 psia or 2069 bar) for a durable solution
Offered in a ½ inch diameter small form factor
Customisable transmitter options available for fit-for-use designs

Emerson Paine™ 310-38-0050 Series

Ultra miniature high pressure transducer
Designed to withstand harsh environments of high cycle, high pressure and high temperature applications
Drift less than 0.05% of full scale over 60 days
Output at zero pressure of 0.1 mv/v ±0.01 mv/v at 75°F or 23°C
Total Error Band is ±0.025 % of full scale sensitivity for exceptional accuracy
Customisable transducer options available for fit-for-use designs

Emerson Paine™ 310-38-520 Series

High pressure and temperature transducer which is resistant to highly corrosive media
Provides real-time pressure and temperature measurement for enhanced control and monitoring
Engineered to measure pressures up to 35000 psi (2413 bar) for application adaptability
Class A Pt1000 RTD included
Small body diameter
Customisable transducer options available for fit-for-use designs

Emerson Paine™ 320-10-010 Series

High precision pressure and temperature transmitter with programmable temperature Output: °F or °C
Withstands harsh and extreme environments for durability in tough applications
Fully compensated and calibrated to offer exceptional accuracy across high pressure ranges
Digital network provides flexibility and programmability for varying applications
Customisable transmitter options available for fit-for-use designs

Emerson Paine™ 320-12-0010 Series

Precision pressure and temperature transmitter with a Temperature Output of °F or °C
Micro-processor based technology provides precise digital measurements for optimal accuracy and a temperature resolution of 12 Bits minimum
Designed with a simple and easy-to-use communication interface for enhanced efficiency
Engineered with long-term stability for consistent and reliable performance
Customisable transmitter options available for fit-for-use designs
