Non-Magnetic

SRT CBW 0603

Bondable Thick Film Chip Resistors
  • Non-magnetic thick film chip resistor
  • Resistance range from 10Ω to 100GΩ
  • Tolerances from ±5.0% to ±30%
  • TCR from ±100 ppm/°C to ±3000 ppm/°C
  • Power rating of 0.1W (at +70°C)
  • Temperature from -55°C to +155°C

SRT CBW 0805

Bondable Thick Film Chip Resistors
  • Non-magnetic thick film chip resistor
  • Resistance range from 10Ω to 1TΩ
  • Tolerances from ±5.0% to ±30%
  • TCR from ±100 ppm/°C to ±3000 ppm/°C
  • Power rating of 0.125W (at +70°C)
  • Temperature range from -55°C up to +155°C

SRT CBW 1206

Bondable Thick Film Chip Resistors
  • Non-magnetic thick film chip resistor
  • Resistance range from 10Ω to 1TΩ
  • Tolerances from ±5.0% to ±30%
  • TCR from ±100 ppm/°C to ±2000 ppm/°C
  • Power rating of 0.25W (at +70°C)
  • Temperature range from -55°C to +155°C

Talk to an Engineer

Get help specifying or customising the right product for your application.

SRT CHM 0805-HT

Precision High Value Thick Film Chip Resistors
  • High temperature, non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 1TΩ
  • Tolerances from ±2% to ±30%
  • TCR from ±25 ppm/°C to ±2000 ppm/°C
  • Power rating of 0.125W (at +70°C)
  • Temperature range from -55°C up to +300°C

SRT CHM 1206

Precision High Value Thick Film Chip Resistors
  • Non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 1TΩ
  • Tolerances from ±0.5% to ±30%
  • TCR from ±25 ppm/°C to ±2000 ppm/°C
  • Power rating of 0.250W (at +70°C)
  • Temperature range from -55°C up to +155°C

SRT CHM 1206-HT

Precision High Value Thick Film Chip Resistors
  • High temperature, non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 1TΩ
  • Tolerances from ±1% to ±30%
  • TCR from ±25 ppm/°C to ±2000 ppm/°C
  • Power rating of 0.25W (at +70°C)
  • Temperature range from -55°C up to +300°C

SRT CHM 1210

Precision High Value Thick Film Chip Resistors
  • Non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 1TΩ
  • Tolerances from ±0.5% to ±30%
  • TCR from ±25 ppm/°C to ±2000 ppm/°C
  • Power rating of 0.35W (at +70°C)
  • Temperature range from -55°C up to +155°C

SRT CHM 1210-HT

Precision High Value Thick Film Chip Resistors
  • High temperature, non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 1TΩ
  • Tolerances from ±1% to ±30%
  • TCR from ±25 ppm/°C to ±2000 ppm/°C
  • Power rating of 0.35W (at +70°C)
  • Temperature range from -55°C up to +300°C

SRT CHM 2010

Precision High Value Thick Film Chip Resistors
  • Non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 1TΩ
  • Tolerances from ±0.5% to ±30%
  • TCR from ±25 ppm/°C to ±1000 ppm/°C
  • Power rating of 0.5W (at +70°C)
  • Temperature range from -55°C up to +155°C

SRT CHM 2010-HT

Precision High Value Thick Film Chip Resistors
  • High temperature, non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 1TΩ
  • Tolerances from ±2% to ±30%
  • TCR from ±25 ppm/°C to ±1000 ppm/°C
  • Power rating of 0.5W (at +70°C)
  • Temperature range from -55°C up to +300°C

SRT CHM 2512

Precision High Value Thick Film Chip Resistors
  • Non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 10TΩ
  • Tolerances from ±0.5% to ±30%
  • TCR from ±25 ppm/°C to ±3000 ppm/°C
  • Power rating of 1W (at +70°C)
  • Temperature range from -55°C up to +155°C

SRT CHM 2512-HT

Precision High Value Thick Film Chip Resistors
  • High temperature, non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 10TΩ
  • Tolerances from ±1% to ±30%
  • TCR from ±25 ppm/°C to ±3000 ppm/°C
  • Power rating of 1W (at +70°C)
  • Temperature range from -55°C up to +300°C

SRT CHM 4020

Precision High Value Thick Film Chip Resistors
  • Non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 10TΩ
  • Tolerances from ±0.5% to ±30%
  • TCR from ±25 ppm/°C to ±2000 ppm/°C
  • Power rating of 2W (at +70°C)
  • Temperature range from -55°C up to +155°C

SRT CHM 4020-HT

Precision High Value Thick Film Chip Resistors
  • High temperature, non-magnetic thick film chip resistor
  • Resistance range from 100kΩ to 10TΩ
  • Tolerances from ±1% to ±30%
  • TCR from ±25 ppm/°C to ±2000 ppm/°C
  • Power rating of 2W (at +70°C)
  • Temperature range from -55°C up to +300°C

SRT CHP Series

Power Chip Resistors on Aluminium‑Nitride Substrates (AlN)
Thick-film power chip resistors on aluminium-nitride substrates in sizes 1216, 2010, 2040, 2512 and 4020, with power ratings up to 2.5 W at 70 °C and operating temperatures from -55 °C to +200 °C. High thermal conductivity AlN and optional untrimmed versions support efficient heat spreading and enhanced pulse performance.

SRT CHR 0603-HT

Non-Magnetic Thick Film Chip Resistors
  • High temperature, non-magnetic chip resistor
  • Resistance range from 1Ω to 10MΩ
  • Tolerances from ±2% to ±20%
  • TCR from ±50 ppm/°C to ±250 ppm/°C
  • Power rating of 0.1W (at +70°C)
  • Temperature range from -55°C up to +300°C

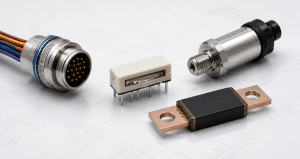

Custom Component Solutions

Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.
