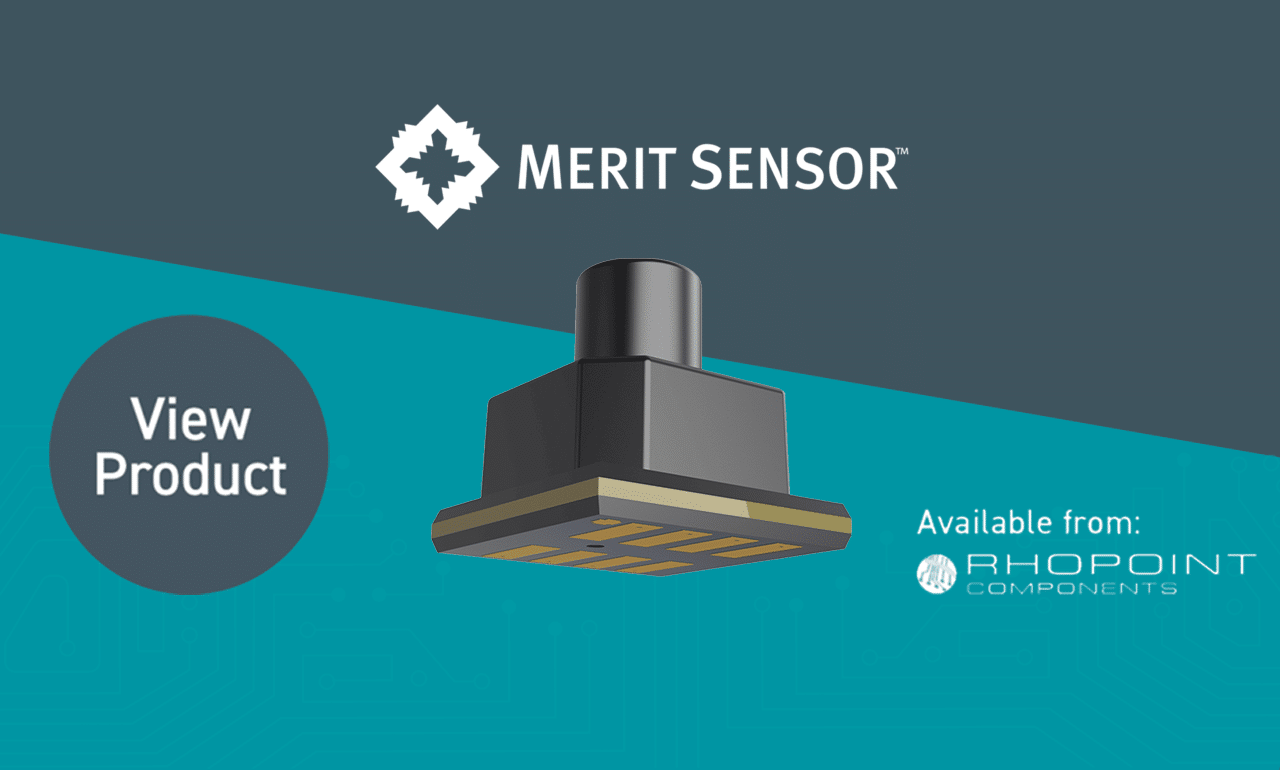

Merit Sensor CMS Series – High-Precision, Compact Pressure Sensors

Now Available at Rhopoint Components!

Rhopoint Components is pleased to announce the addition of the Merit Sensor CMS Series to our product lineup. These state-of-the-art piezoresistive pressure sensors are engineered for applications requiring high accuracy, compact size, and low power consumption.

Key Features:

  • Pressure Range: 2 to 150 psi (0.14 to 10.34 bar; 13.79 to 1,034.21 kPa)
  • Pressure Types: Absolute and gauge options
  • Output: Digital I²C and SPI interfaces
  • Compact Size: 6.8 mm x 6.8 mm footprint
  • Operating Voltage: 2.7V to 5.5V
  • Temperature Range: -40°C to 85°C
  • Low Power Mode: Ideal for battery-operated devices
  • Media Compatibility: Clean, dry air and non-corrosive gases; gel option available for liquids compatible with silicone
  • Packaging: Bulk, Tape & Reel

The CMS Series utilizes an ASIC for calibration and thermal compensation, ensuring long-term stability and accuracy. Its compact design and versatile features make it suitable for a wide range of applications, including medical devices, industrial systems, and consumer electronics.

Learn more about the CMS Series: Merit Sensor CMS Series at Rhopoint Components
