NVE IL261-3E

  • NVE

Product Features

  • High Speed digital isolators
  • Five channel, multidirectional isolation
  • 2.5kVRMS isolation voltage
  • 600VRMS woking voltage per VDE V 0884-10
  • 50 kV/μs typical (30 kV/μs minimum) common mode transient immunity
  • No carrier or clock for low EMI emissions and susceptibility
  • Quiescent current of 0.0012A per channel minimum
  • 2ns typical pulse width distortion
  • 100ps pulse jitter
  • 4ns typical propagation delay skew
  • 44000 year barrier life
  • Excellent magnetic immunity
  • VDE V 0884-10 certified; UL 1577 recognised
  • 1.5″ 16-pin SOIC package


  • Medical
  • Motion Control
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement

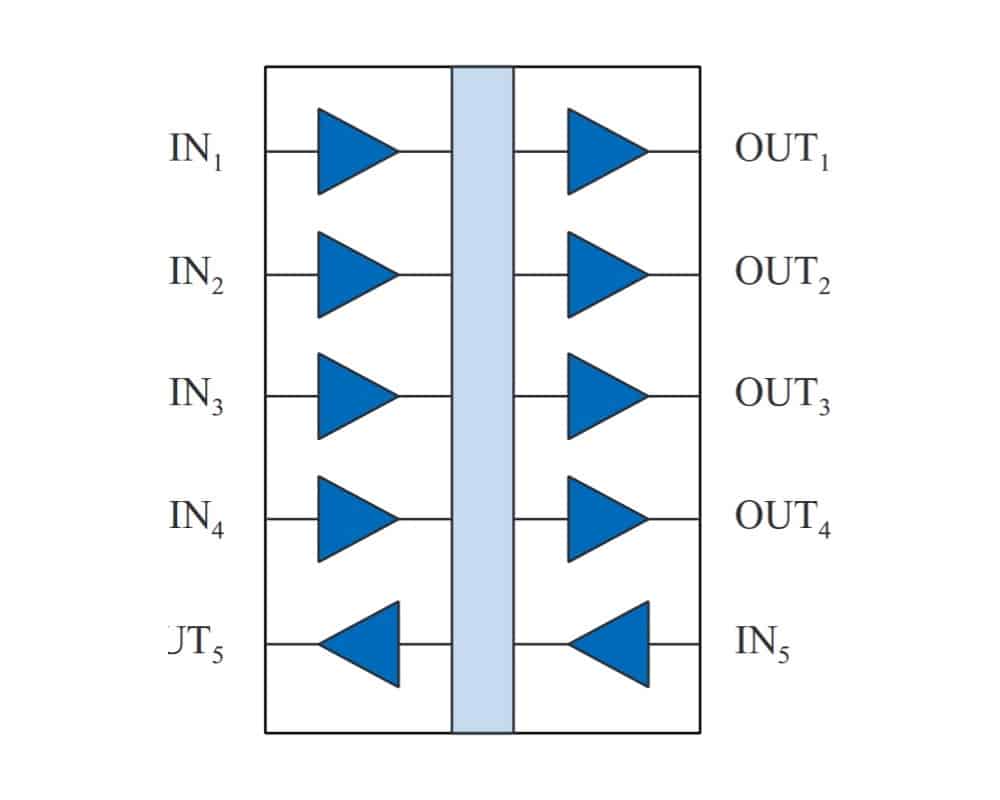

The IL261-3E high speed digital isolator from NVE is a five channel CMOS device with typical data rate of 110Mbps. They feature working voltage of 600VRMS and isolation voltage of 2.5kVrms. The IL261-1E is available in 0.15″ 16-pin SOIC package, specified over a temperature range of −40°C to +85°C. These isolators are manufactured with NVE’s patented IsoLoop® spintronic Giant Magnetoresistive (GMR) technology. The IL261-3E features symmetric magnetic coupling barrier, providing the best specification in terms of propagation delay and pulse width distortion on the market. The unique fifth channel can be used to distribute isolated clocks or handshake signals to multiple delta-sigma A/D converters. The unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. The IL261 series, including IL261-3E is UL1577 recognised and certified to VDE 0884-10.

  • Surface-mount high speed digital isolator
  • Multidirectional five channel isolation
  • High speed with typical data rate of 110 Mbps
  • Isolation voltage of 2.5kVrms
  • Working voltage of 600VRMS
  • Operating temperature range of −40°C to +85°C
  • 50 kV/μs typical (30 kV/μs minimum) common mode transient immunity
  • No carrier or clock for low EMI emissions and susceptibility
  • Typical quiescent current of 0.0012A per channel
  • Typical pulse width distortion of 2ns
  • Pulse jitter of 100ps
  • Channel to channel skew of 2ns
  • Typical propagation delay of 10ns
  • Barrier life of 44000 years
  • Excellent magnetic immunity
  • VDE V 0884-10 certified; UL 1577 recognised

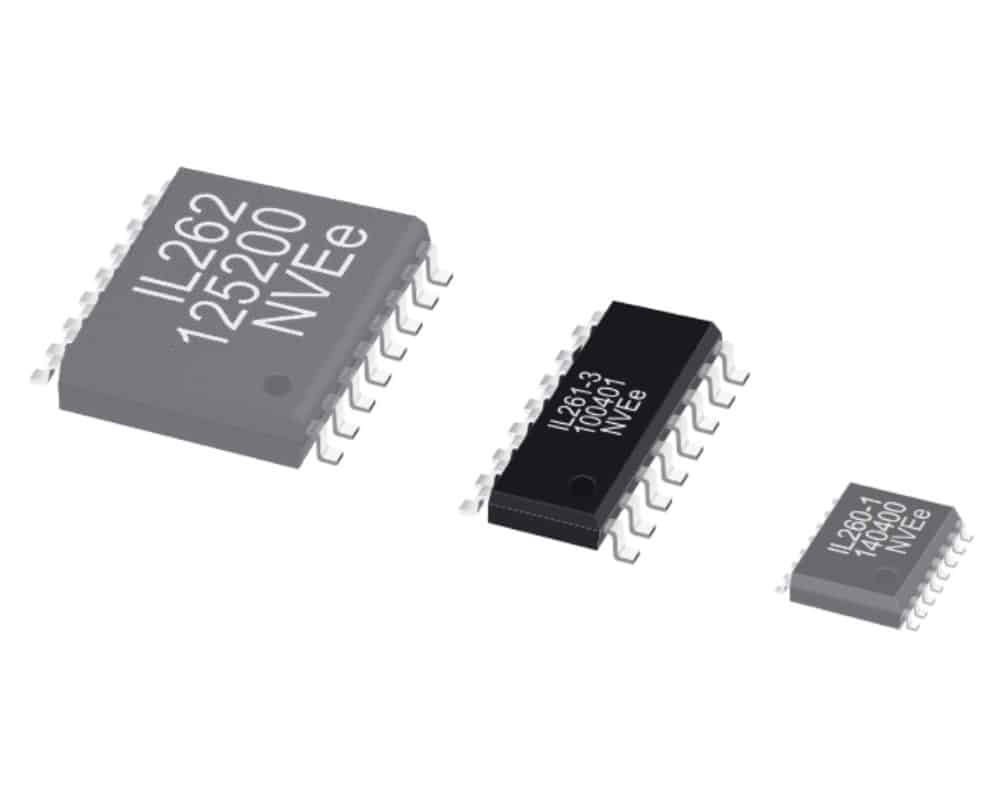

  • 0.15″ 16-pin SOIC package

Typical applications for the IL261 series include:

  • ADCs and DACs
  • Multiplexed data transmission
  • Board-to-board communication
  • Equipment covered under IEC 61010-1 Edition 3
  • 5kVRMS rated IEC 60601-1 medical applications

The below table gives the recommended operating conditions of the NVE IL261 high speed digital isolator series including the IL261-3E:

NVE IL261-3E Specifications


Weight 0.02500 kg
Dimensions 10.00 × 4.00 × 1.58 mm
Additional Features

Temperature Range (°C)

Supply Voltage

Maximum Data Rate

Propagation Delay

Creepage Distance

RoHS Compliant Product – NVE

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
