NVE IL262-3E

  • Compliant
  • NVE

Product Features

  • High Speed digital isolators
  • Five channel, multidirectional isolation
  • 2.5kVRMS isolation voltage
  • 600VRMS woking voltage per VDE V 0884-10
  • 50 kV/μs typical (30 kV/μs minimum) common mode transient immunity
  • No carrier or clock for low EMI emissions and susceptibility
  • Quiescent current of 0.0012A per channel minimum
  • 2ns typical pulse width distortion
  • 100ps pulse jitter
  • 4ns typical propagation delay skew
  • 44000 year barrier life
  • Excellent magnetic immunity
  • VDE V 0884-10 certified; UL 1577 recognised
  • 1.5″ 16-pin SOIC package

Applications

  • Medical
  • Motion Control
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement

Description

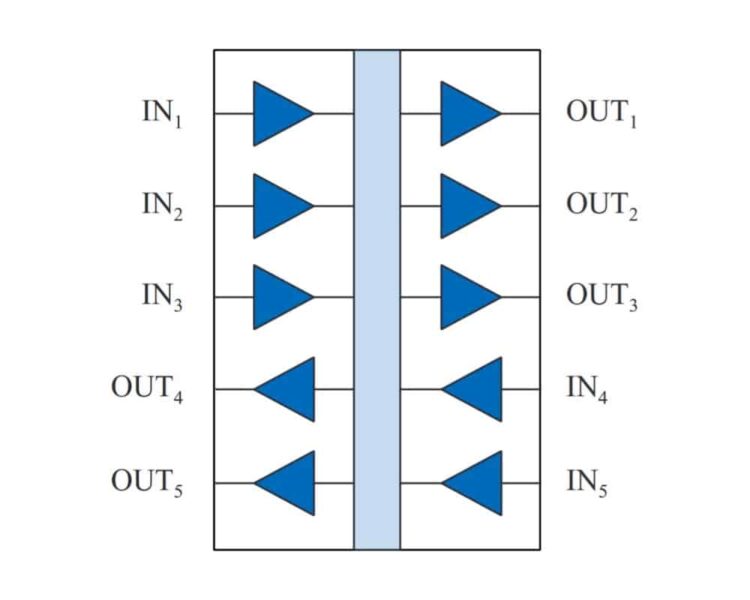

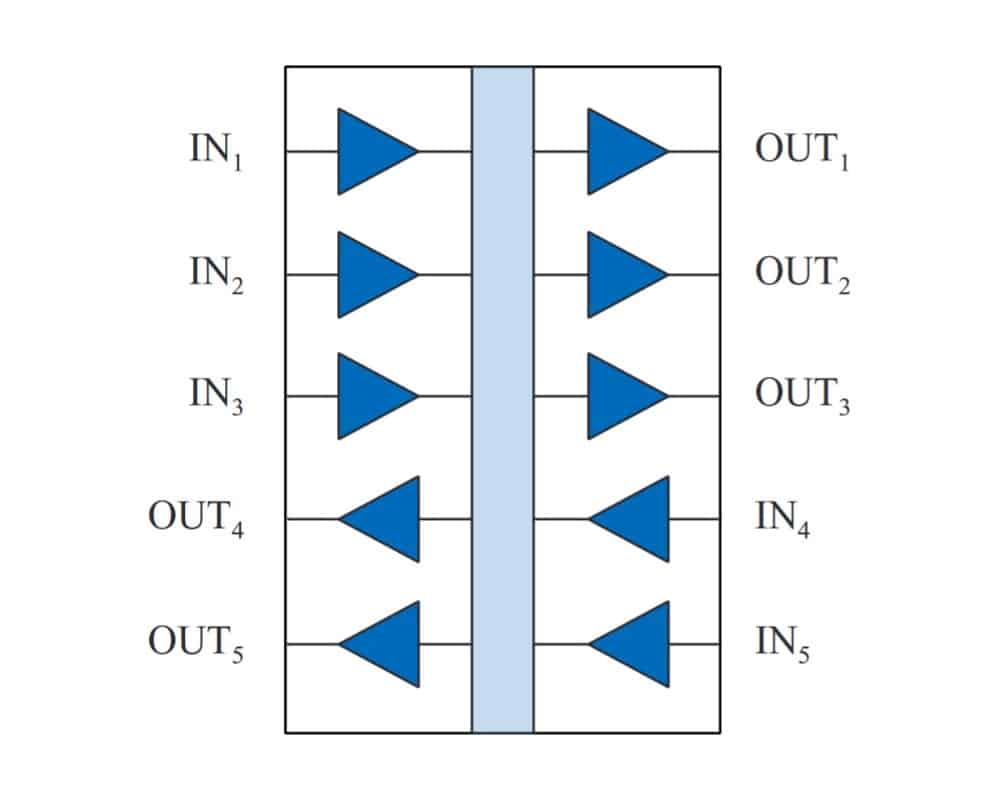

The IL262-3E high speed digital isolator from NVE is a five channel CMOS device with a typical data rate of 110Mbps. They feature working voltage of 600VRMS and isolation voltage of 2.5kVrms. The IL262-1E is available in 0.15″ 16-pin SOIC package, specified over a temperature range of −40°C to +85°C. These isolators are manufactured with NVE’s patented IsoLoop® spintronic Giant Magnetoresistive (GMR) technology. The IL262-3E features symmetric magnetic coupling barrier, providing the best specification in terms of propagation delay and pulse width distortion on the market. The unique fifth channel can be used to distribute isolated clocks or handshake signals to multiple delta-sigma A/D converters. The unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. The IL262 series, including IL262-3E is UL1577 recognised and certified to VDE 0884-10.

  • Surface-mount high speed digital isolator
  • Multidirectional five channel isolation
  • High speed with typical data rate of 110 Mbps
  • Isolation voltage of 2.5kVrms
  • Working voltage of 600VRMS
  • Temperature range of −40°C to +85°C
  • 50 kV/μs typical (30 kV/μs minimum) common mode transient immunity
  • No carrier or clock for low EMI emissions and susceptibility
  • Typical quiescent current of 0.0012A per channel
  • Typical pulse width distortion of 2ns
  • Pulse jitter of 100ps
  • Channel to channel skew of 2ns
  • Typical propagation delay of 10ns
  • Barrier life of 44000 years
  • Excellent magnetic immunity
  • VDE V 0884-10 certified; UL 1577 recognised

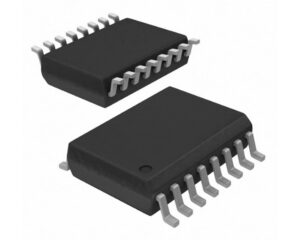

  • 0.15″ 16-pin SOIC package

Typical applications for the IL262 series include:

  • ADCs and DACs
  • Multiplexed data transmission
  • Board-to-board communication
  • Equipment covered under IEC 61010-1 Edition 3
  • 5kVRMS rated IEC 60601-1 medical applications

The below table gives the recommended operating conditions of the NVE IL262 high speed digital isolator series including the IL26-3E:

NVE IL262-3E Specifications

Specifications

Weight 0.02500 kg
Dimensions 10.00 × 4.00 × 1.58 mm
Additional Features

High Speed digital isolators Five channel, multidirectional isolation 2.5kVRMS isolation voltage 600VRMS woking voltage per VDE V 0884-10 50 kV/μs typical (30 kV/μs minimum) common mode transient i

Temperature Range (°C)

Series / Model

Supply Voltage

Maximum Data Rate

Propagation Delay

Creepage Distance

RoHS Compliant Product – NVE

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
