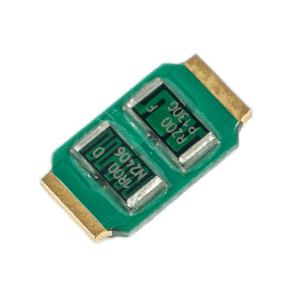

dtpm-adaptor-board-ab127-assembly-product-image

dtpm-adaptor-board-ab127-assembly-dimensions

dtpm-adaptor-board-ab126-assembly-dimensions

Adaptor Board AB126/127 Assembly

DTPM Adaptor Board AB126/127 Assembly

Adaptor Board AB126/127 with SMD resistors
Resistance ranges from 0.0068Ω to 3.9Ω *
Tolerances of 0.5% and 1%
Power Rating of 5W

Datasheet

Resistance Value

Tolerance

Assembly Type

Clear

Custom resistance value (Ω) *
Custom AT Range (AT) *
Custom Capacity (lbs) *
Custom Pressure (Bar/PSI) *
Custom Resistance Value Element 1 (Ω) *
Custom Resistance Value Element 2 (Ω) *
Custom lead length (mm) *
Custom lead length (inches) *

Quantity

Add to Compare

Any questions, contact us?

Why buy from Rhopoint?

Frequently Asked Questions

Application Notes

Assembly consisting of Adaptor Board AB126/127 and suitable standard SMD resistor components for a pin-compatible replacement of WSR2/3/5-series of Vishay (case size 4527), SL2/3-series of KOA (case size 4527) or SMR-series of Isabellenhuette (case size 4723)
Resistance ranges from 0.0068Ω to 3.9Ω *
Tolerances of 0.5% and 1%
Power Rating of 5W
Mounting: Reflow-, IR- and vapour phase soldering
Packaging: tape/reel accordingly to EN 60286-3
RoHS 2011/65/EU compliant
Excellent long-term stability (dR/R < ±0.5% in 2000hrs at rated power and temperature)
On request: lot inspection per MIL-PRF-55342 (scope to be determined as required)

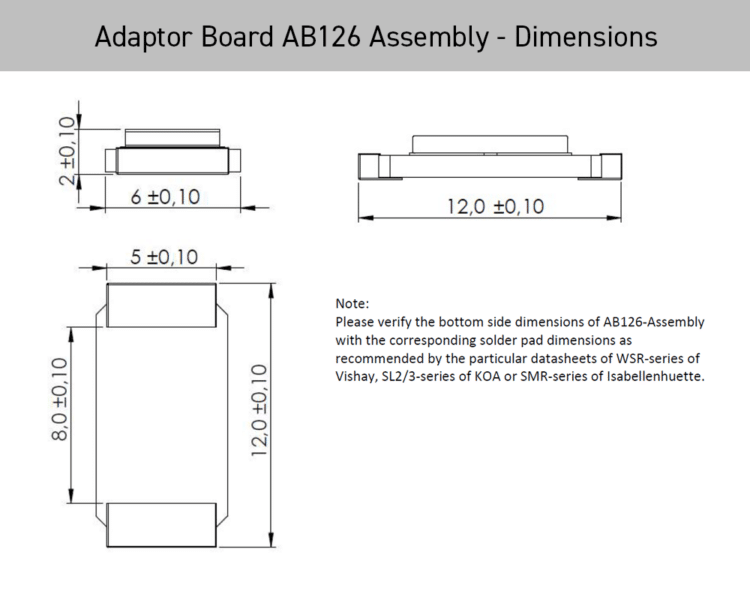

AB126 Dimensions: 2mm x 6mm x 12mm (±0.1mm)
AB127 Dimensions: 2mm x 7.2mm x 12mm (±0.1mm)

Assembly	Power Rating P(70) [W]	Resistance value range [Ω]*	Resistance value tolerance*
AB126-2817R	5	0.0068 – 3.9	0.5%, 1%
AB127-2010DSR	5	0.051 – 1.5	0.5%, 1%
AB127-2010DPR	5	0.0068 – 0.240	0.5%, 1%

^{* Ranges are dependant on the model selected, a full list of available resistances can be found in the table below.}

Specifications

Resistance Value	0.011Ω, 0.013Ω, 0.016Ω, 0.024Ω, 0.036Ω, 0.043Ω, 0.051Ω, 0.091Ω, 0.110Ω, 0.130Ω, 0.430Ω, 0.510Ω, 0.620Ω, 1.10Ω, 0.0068Ω, 0.0075Ω, 0.0082Ω, 0.0091Ω, 0.01Ω, 0.012Ω, 0.015Ω, 0.018Ω, 0.02Ω, 0.022Ω, 0.027Ω, 0.03Ω, 0.033Ω, 0.039Ω, 0.047Ω, 0.05Ω, 0.056Ω, 0.062Ω, 0.068Ω, 0.075Ω, 0.082Ω, 0.1Ω, 0.12Ω, 0.15Ω, 0.16Ω, 0.18Ω, 0.2Ω, 0.22Ω, 0.24Ω, 0.27Ω, 0.3Ω, 0.33Ω, 0.36Ω, 0.39Ω, 0.47Ω, 0.56Ω, 0.68Ω, 0.82Ω, 1Ω, 1.2Ω, 1.5Ω, 1.8Ω, 2Ω, 2.2Ω, 2.7Ω, 3Ω, 3.3Ω, 3.60Ω, 3.9Ω
Tolerance	±0.5%, ±1%
Power Rating	5W
Assembly Type	AB126, AB127

Type of Assembly * (AB12X)

AB126-2817

AB127-2010DP

Resistance Value (XRXX)

Resistance value, in ohms, is expressed by a series of 4 characters, 3 of which represent significant digits. R (ohms) designates the location of the decimal point.

Tolerance (X)

D: ±0.5%
F: ±1%

Available resistor values

E12 series [Ω]	E24 series [Ω]	AB126	AB127-DS	AB127-DP
0.0068	0.0068	✓		✓
	0.0075			✓
0.0082	0.0082			✓
	0.0091	✓		✓
0.010	0.010	✓		✓
	0.011			✓
0.012	0.012			✓
	0.013			✓
0.015	0.015	✓		✓
	0.016			✓
0.018	0.018	✓		✓
	0.020	✓
0.022	0.022	✓		✓
	0.024			✓
0.027	0.027	✓		✓
	0.030			✓
0.033	0.033	✓
	0.036			✓
0.039	0.039	✓
	0.043			✓
0.047	0.047	✓
	-0.050	✓
	0.051		✓
0.056	0.056	✓
	0.062			✓
0.068	0.068	✓
	0.075			✓
0.082	0.082	✓
	0.091		✓
0.10	0.10	✓
	0.11		✓
0.12	0.12	✓
	0.13		✓
0.15	0.15	✓
	0.16			✓
0.18	0.18	✓
	0.20	✓
0.22	0.22	✓
	0.24			✓
0.27	0.27	✓
	0.30		✓
0.33	0.33	✓
	0.36		✓
0.39	0.39	✓
	0.43		✓
0.47	0.47	✓
	0.51		✓
0.56	0.56	✓
	0.62		✓
0.68	0.68	✓
	0.75
0.82	0.82	✓
1.00	1.00	✓
	1.10		✓
1.20	1.20	✓	✓
1.50	1.50	✓	✓
1.80	1.80	✓
	2.00	✓
2.20	2.20	✓
2.70	2.70	✓
	3.00	✓
3.30	3.30	✓
	3.60	✓
3.90	3.90	✓

Product Variations

SKU	Resistance Value	Tolerance	Assembly Type
AB126-28170R0068D	0.0068Ω	±0.5%	AB126
AB126-28170R0091D	0.0091Ω	±0.5%	AB126
AB126-28170R01D	0.01Ω	±0.5%	AB126
AB126-28170R015D	0.015Ω	±0.5%	AB126
AB126-28170R018D	0.018Ω	±0.5%	AB126
AB126-28170R02D	0.02Ω	±0.5%	AB126
AB126-28170R022D	0.022Ω	±0.5%	AB126
AB126-28170R027D	0.027Ω	±0.5%	AB126
AB126-28170R033D	0.033Ω	±0.5%	AB126
AB126-28170R039D	0.039Ω	±0.5%	AB126
AB126-28170R047D	0.047Ω	±0.5%	AB126
AB126-28170R050D	0.05Ω	±0.5%	AB126
AB126-28170R056D	0.056Ω	±0.5%	AB126
AB126-28170R068D	0.068Ω	±0.5%	AB126
AB126-28170R082D	0.082Ω	±0.5%	AB126
AB126-28170R100D	0.1Ω	±0.5%	AB126
AB126-28170R120D	0.12Ω	±0.5%	AB126
AB126-28170R150D	0.15Ω	±0.5%	AB126
AB126-28170R180D	0.18Ω	±0.5%	AB126
AB126-28170R200D	0.2Ω	±0.5%	AB126
AB126-28170R220D	0.22Ω	±0.5%	AB126
AB126-28170R270D	0.27Ω	±0.5%	AB126
AB126-28170R330D	0.33Ω	±0.5%	AB126
AB126-28170R390D	0.39Ω	±0.5%	AB126
AB126-28170R470D	0.47Ω	±0.5%	AB126
AB126-28170R560D	0.56Ω	±0.5%	AB126
AB126-28170R680D	0.68Ω	±0.5%	AB126
AB126-28170R820D	0.82Ω	±0.5%	AB126
AB126-28171R00D	1Ω	±0.5%	AB126
AB126-28171R20D	1.2Ω	±0.5%	AB126
AB126-28171R50D	1.5Ω	±0.5%	AB126
AB126-28171R80D	1.8Ω	±0.5%	AB126
AB126-28172R00D	2Ω	±0.5%	AB126
AB126-28172R20D	2.2Ω	±0.5%	AB126
AB126-28172R70D	2.7Ω	±0.5%	AB126
AB126-28173R00D	3Ω	±0.5%	AB126
AB126-28173R30D	3.3Ω	±0.5%	AB126
AB126-28173R60D	3.60Ω	±0.5%	AB126
AB126-28173R90D	3.9Ω	±0.5%	AB126
AB127-2010DS0R051D	0.051Ω	±0.5%	AB127
AB127-2010DS0R091D	0.091Ω	±0.5%	AB127
AB127-2010DS0R110D	0.110Ω	±0.5%	AB127
AB127-2010DS0R130D	0.130Ω	±0.5%	AB127
AB127-2010DS0R300D	0.3Ω	±0.5%	AB127
AB127-2010DS0R360D	0.36Ω	±0.5%	AB127
AB127-2010DS0R430D	0.430Ω	±0.5%	AB127
AB127-2010DS0R510D	0.510Ω	±0.5%	AB127
AB127-2010DS0R620D	0.620Ω	±0.5%	AB127
AB127-2010DS1R100D	1.10Ω	±0.5%	AB127
AB127-2010DS1R200D	1.2Ω	±0.5%	AB127
AB127-2010DS1R500D	1.5Ω	±0.5%	AB127
AB127-2010DP0R0068D	0.0068Ω	±0.5%	AB127
AB127-2010DP0R0075D	0.0075Ω	±0.5%	AB127
AB127-2010DP0R0082D	0.0082Ω	±0.5%	AB127
AB127-2010DP0R0091D	0.0091Ω	±0.5%	AB127
AB127-2010DP0R010D	0.01Ω	±0.5%	AB127
AB127-2010DP0R011D	0.011Ω	±0.5%	AB127
AB127-2010DP0R012D	0.012Ω	±0.5%	AB127
AB127-2010DP0R013D	0.013Ω	±0.5%	AB127
AB127-2010DP0R015D	0.015Ω	±0.5%	AB127
AB127-2010DP0R016D	0.016Ω	±0.5%	AB127
AB127-2010DP0R018D	0.018Ω	±0.5%	AB127
AB127-2010DP0R022D	0.022Ω	±0.5%	AB127
AB127-2010DP0R024D	0.024Ω	±0.5%	AB127
AB127-2010DP0R027D	0.027Ω	±0.5%	AB127
AB127-2010DP0R030D	0.03Ω	±0.5%	AB127
AB127-2010DP0R036D	0.036Ω	±0.5%	AB127
AB127-2010DP0R043D	0.043Ω	±0.5%	AB127
AB127-2010DP0R062D	0.062Ω	±0.5%	AB127
AB127-2010DP0R075D	0.075Ω	±0.5%	AB127
AB127-2010DP0R160D	0.16Ω	±0.5%	AB127
AB127-2010DP0R240D	0.24Ω	±0.5%	AB127
AB126-28170R0068F	0.0068Ω	±1%	AB126
AB126-28170R0091F	0.0091Ω	±1%	AB126
AB126-28170R01F	0.01Ω	±1%	AB126
AB126-28170R015F	0.015Ω	±1%	AB126
AB126-28170R018F	0.018Ω	±1%	AB126
AB126-28170R02F	0.02Ω	±1%	AB126
AB126-28170R022F	0.022Ω	±1%	AB126
AB126-28170R027F	0.027Ω	±1%	AB126
AB126-28170R033F	0.033Ω	±1%	AB126
AB126-28170R039F	0.039Ω	±1%	AB126
AB126-28170R047F	0.047Ω	±1%	AB126
AB126-28170R050F	0.05Ω	±1%	AB126
AB126-28170R056F	0.056Ω	±1%	AB126
AB126-28170R068F	0.068Ω	±1%	AB126
AB126-28170R082F	0.082Ω	±1%	AB126
AB126-28170R100F	0.1Ω	±1%	AB126
AB126-28170R120F	0.12Ω	±1%	AB126
AB126-28170R150F	0.15Ω	±1%	AB126
AB126-28170R180F	0.18Ω	±1%	AB126
AB126-28170R200F	0.2Ω	±1%	AB126
AB126-28170R220F	0.22Ω	±1%	AB126
AB126-28170R270F	0.27Ω	±1%	AB126
AB126-28170R330F	0.33Ω	±1%	AB126
AB126-28170R390F	0.39Ω	±1%	AB126
AB126-28170R470F	0.47Ω	±1%	AB126
AB126-28170R560F	0.56Ω	±1%	AB126
AB126-28170R680F	0.68Ω	±1%	AB126
AB126-28170R820F	0.82Ω	±1%	AB126
AB126-28171R00F	1Ω	±1%	AB126
AB126-28171R20F	1.2Ω	±1%	AB126
AB126-28171R50F	1.5Ω	±1%	AB126
AB126-28171R80F	1.8Ω	±1%	AB126
AB126-28172R00F	2Ω	±1%	AB126
AB126-28172R20F	2.2Ω	±1%	AB126
AB126-28172R70F	2.7Ω	±1%	AB126
AB126-28173R00F	3Ω	±1%	AB126
AB126-28173R30F	3.3Ω	±1%	AB126
AB126-28173R60F	3.60Ω	±1%	AB126
AB126-28173R90F	3.9Ω	±1%	AB126
AB127-2010DS0R051F	0.051Ω	±1%	AB127
AB127-2010DS0R091F	0.091Ω	±1%	AB127
AB127-2010DS0R110F	0.110Ω	±1%	AB127
AB127-2010DS0R130F	0.130Ω	±1%	AB127
AB127-2010DS0R300F	0.3Ω	±1%	AB127
AB127-2010DS0R360F	0.36Ω	±1%	AB127
AB127-2010DS0R430F	0.430Ω	±1%	AB127
AB127-2010DS0R510F	0.510Ω	±1%	AB127
AB127-2010DS0R620F	0.620Ω	±1%	AB127
AB127-2010DS1R100F	1.10Ω	±1%	AB127
AB127-2010DS1R200F	1.2Ω	±1%	AB127
AB127-2010DS1R500F	1.5Ω	±1%	AB127
AB127-2010DP0R0068F	0.0068Ω	±1%	AB127
AB127-2010DP0R0075F	0.0075Ω	±1%	AB127
AB127-2010DP0R0082F	0.0082Ω	±1%	AB127
AB127-2010DP0R0091F	0.0091Ω	±1%	AB127
AB127-2010DP0R010F	0.01Ω	±1%	AB127
AB127-2010DP0R011F	0.011Ω	±1%	AB127
AB127-2010DP0R012F	0.012Ω	±1%	AB127
AB127-2010DP0R013F	0.013Ω	±1%	AB127
AB127-2010DP0R015F	0.015Ω	±1%	AB127
AB127-2010DP0R016F	0.016Ω	±1%	AB127
AB127-2010DP0R018F	0.018Ω	±1%	AB127
AB127-2010DP0R022F	0.022Ω	±1%	AB127
AB127-2010DP0R024F	0.024Ω	±1%	AB127
AB127-2010DP0R027F	0.027Ω	±1%	AB127
AB127-2010DP0R030F	0.03Ω	±1%	AB127
AB127-2010DP0R036F	0.036Ω	±1%	AB127
AB127-2010DP0R043F	0.043Ω	±1%	AB127
AB127-2010DP0R062F	0.062Ω	±1%	AB127
AB127-2010DP0R075F	0.075Ω	±1%	AB127
AB127-2010DP0R160F	0.16Ω	±1%	AB127
AB127-2010DP0R240F	0.24Ω	±1%	AB127

Resources

Product Datasheet

DTPM Adaptor Board AB126/127 Assembly Datasheet
