DLA | Precision Current Sense Resistor

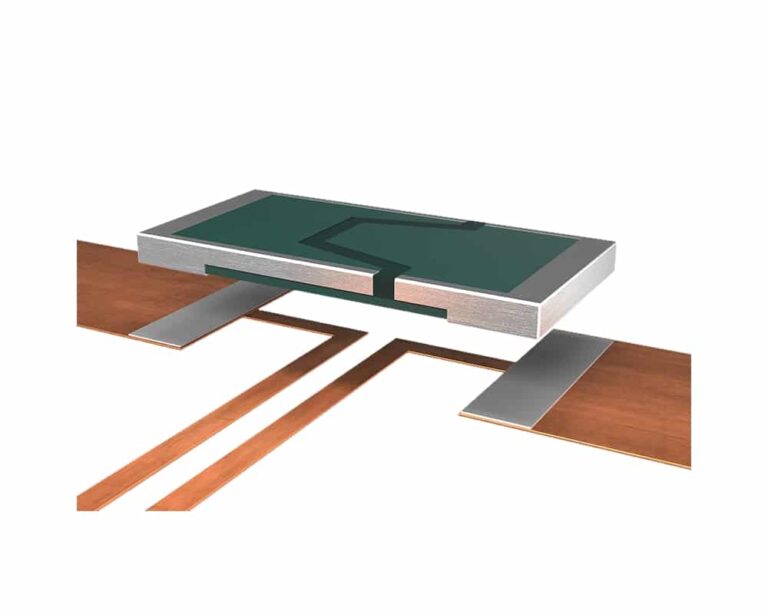

The Isabellenhütte 25004 / VMK is a DLA-qualified precision current sense resistor designed for high-reliability applications requiring controlled performance, traceability and long-term stability.
Manufactured in a compact 1206 surface-mount package, this two-terminal resistor provides accurate current measurement in space-constrained designs.

With resistance values ranging from 10mΩ to 470mΩ and a 0.75W power rating at 70 °C, the VMK supports stable and repeatable current sensing across a wide operating range.
The resistor is engineered for consistent electrical behaviour, with low drift and strong thermal performance, ensuring measurement accuracy under varying load and temperature conditions.

Designed for extreme environments, the device operates from −65°C to +170°C and is available in industrial (Test Code A), military (Test Code B) and space-level (Test Code T) variants.
These options meet stringent qualification and testing requirements, making the VMK suitable for mission-critical systems.

Key Features

• DLA-qualified 2-terminal current sense resistor
• Resistance range: 10 mΩ to 470 mΩ
• Tolerance: ±0.5% or ±1%
• Power rating: 0.75 W at 70 °C
• Temperature coefficient down to ±35 ppm/K
• Operating temperature range −65 °C to +170 °C
• Excellent long-term stability
• Strong thermal behaviour and heat dissipation
• SnPb plated terminals
• Available in industrial, military and space-qualified versions
• DLA-qualified for military-grade reliability and traceability.

Application Industries and Use Cases

• Aerospace & Space: Current sensing in satellite power systems and onboard electronics.
• Defence Electronics: Precision current measurement in mission-critical systems.
• Industrial Power Electronics: Current sensing in converters and power supplies.
