| Weight | 0.00000 kg |
|---|---|

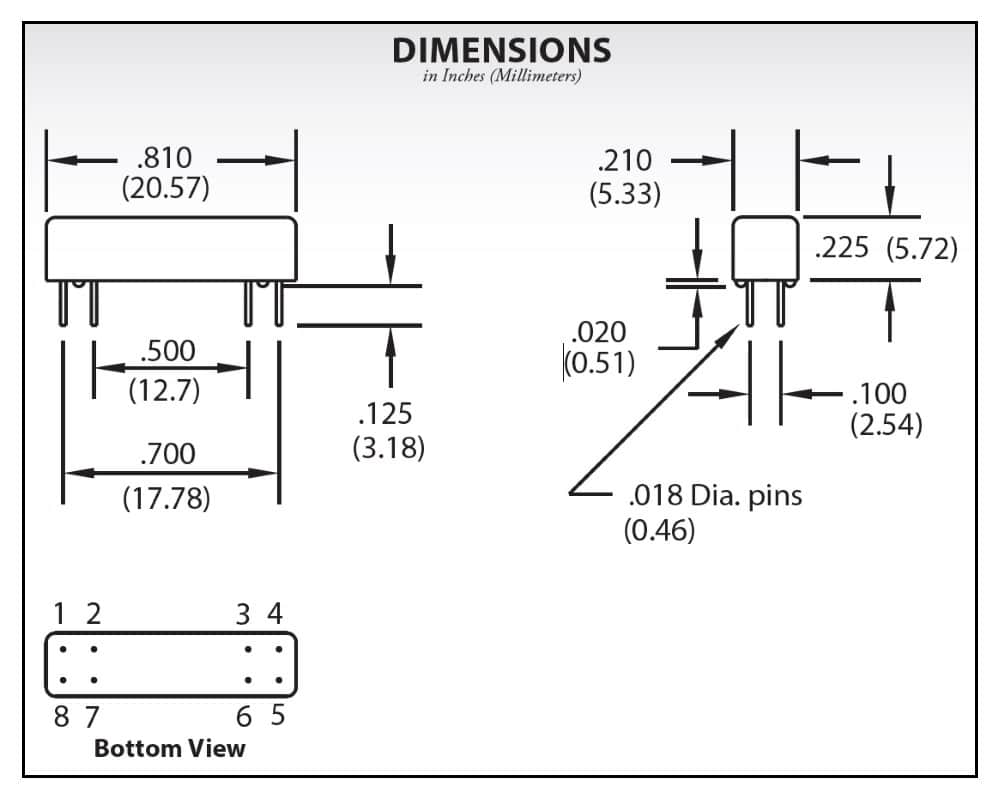

| Dimensions | 6.23 x 5.33 x 20.57mm |
| Coil Voltage | 5V |
| Contact Form | 1A |
| Contact Rating | 10W |
| Dielectric Strength | 250VDC |
| Series / Model | |
| Switching Voltage | 150V |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

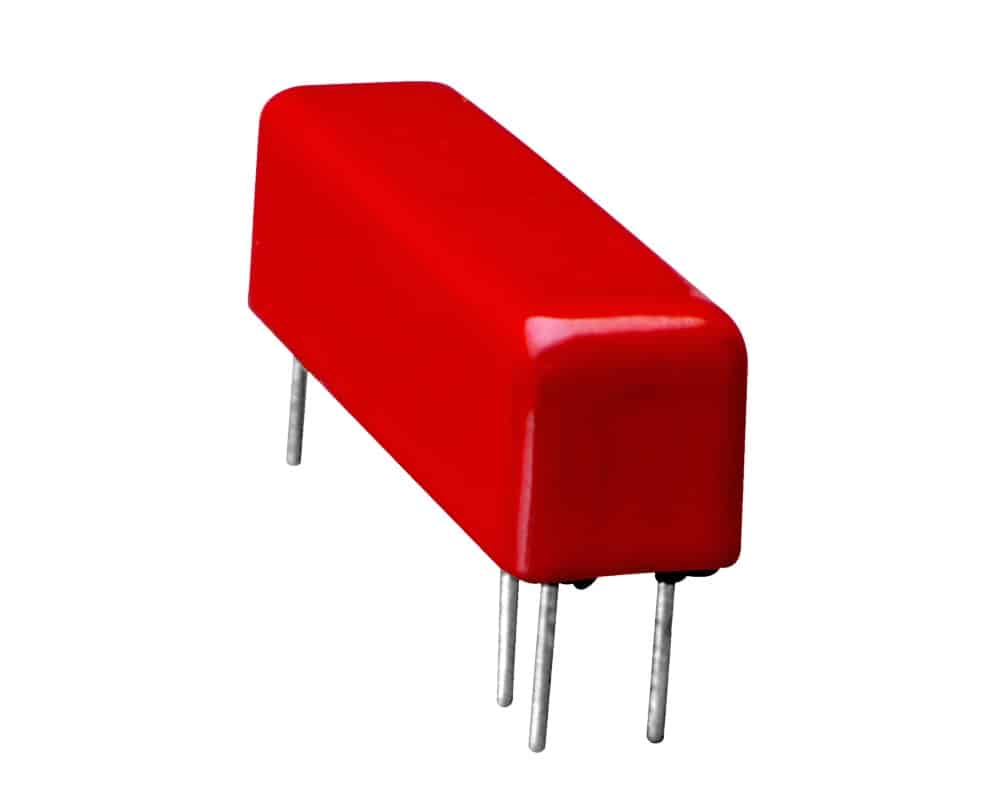

The 2200-2301 reed relay from Coto features a coil voltage of 5VDC with a switching voltage of 150V and switching current of 0.5A. The 2200 series from Coto are considered ideal for high speed switching compared to electromechanical relays, very small footprint of 0.17in2and have an electrostatic shield. They have hermetically sealed contacts for long life and their epoxy coated steel shell provides magnetic shielding. The 2200-2301 is ideally suited to the needs of automated test equipment and RF requirements, specifically engineered for OEM designs and maintenance of existing production fixtures.
Typical Applications include:
For further information regarding coil specifications, contact ratings and relay specifications please see the datasheet on the Technical Library tab.
Coto is a worldwide market leader of small signal-switching products sold into the Automatic Test Equipment, Data Acquisition, Instrumentation, Process Control, Telecommunications, Medical and Security markets. Coto specialises in the manufacture of relay, switch and sensor products. Coto are the pioneers of the RedRock® analog and digital TMR magnetic sensors, offering the lowest power consumption, highest sensitivity, ultra-miniature package size, short lead times and a highly-competitive price. Please visit https://cotorelay.com/ for more information.
