Coto 2204 Series

  • Coto Technology

Product Features

  • Reed relays
  • High insulation resistance of 1012Ω minimum
  • Switching current 0.5A
  • Optional coaxial or electrostatic shield
  • Temperature range −20°C to +85°C


  • Compliant

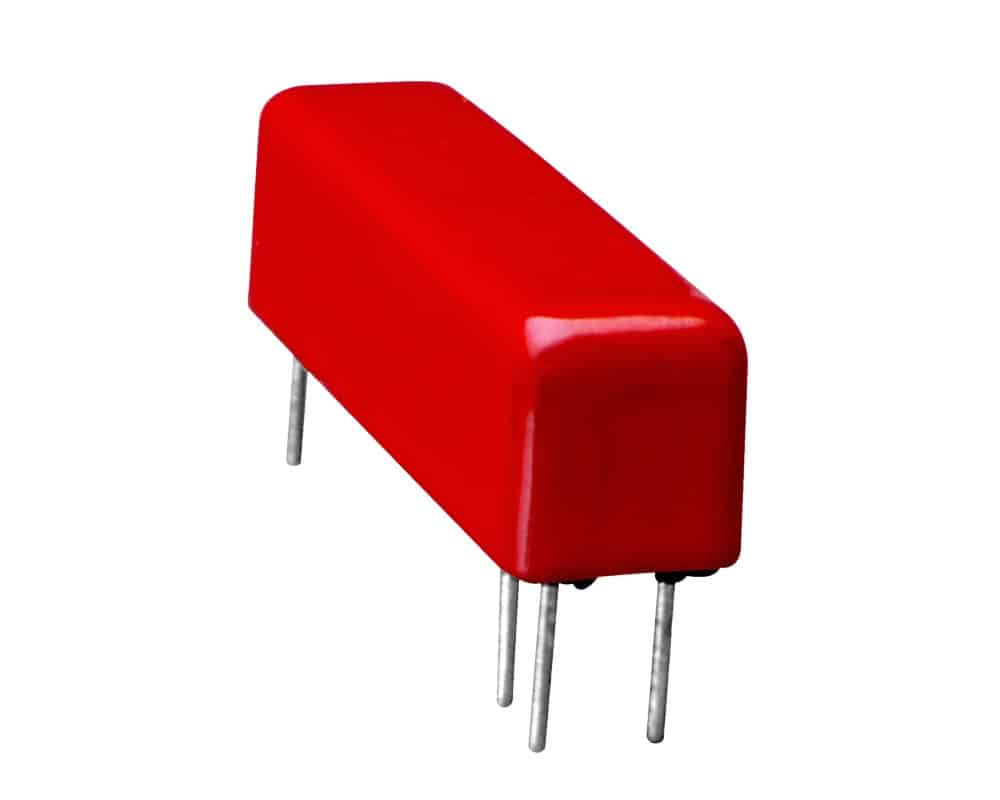

The 2204 series reed relays from Coto features coil voltage options of 5VDC and 12VDC with optional electrostatic shield for reducing capacitive coupling, coaxial shielding for 50Ω impedance. The 2200 series from Coto are considered ideal for high speed switching compared to electromechanical relays, very small footprint of 0.17in2. They have hermetically sealed contacts for long life and their epoxy coated steel shell provides magnetic shielding. The 2204 series is ideally suited to the needs of automated test equipment and RF requirements, specifically engineered for OEM designs and maintenance of existing production fixtures.

  • Reed relay
  • Nominal coil voltage options available 5VDC or 12VDC
  • Contact form of 1A
  • Switching voltage of 200V
  • Dielectric strength of 250VDC
  • Contact rating 10W
  • Switching current 0.5A
  • No shielding, electrostatic shielding or coaxial shielding options available
  • Temperature range −20°C to +85°C
  • Encapsulated PICO package

Typical Applications include:

  • Automated test equipment
  • RF requirements

For further information regarding coil specifications, contact ratings and relay specifications please see the datasheet on the Technical Library tab.

Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.


Weight 0.00000 kg
Dimensions 6.23 x 5.33 x 20.57mm
Coil Voltage


Contact Form

Contact Rating

Dielectric Strength

Series / Model


, ,

Switching Voltage

RoHS Compliant Product – Coto

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
