Coto 2211 Series

  • Coto Technology

Product Features

  • High reliability reed relays
  • Switching current 0.25A
  • Very small footprint of 0.17in2
  • Temperature range −20°C to +85°C

Applications

  • Compliant

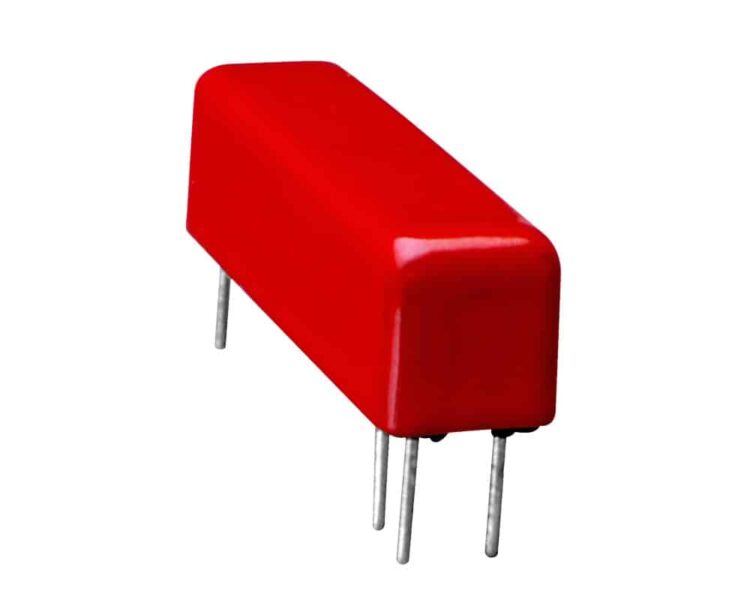

The 2211 series reed relay from Coto features coil voltage options of 5VDC or 12VDC with a switching voltage of 100V and switching current of 0.25A. The 2200 series from Coto are considered ideal for high speed switching compared to electromechanical relays, very small footprint of 0.17in2. They have hermetically sealed contacts for long life and their epoxy coated steel shell provides magnetic shielding. The 2211 series are ideally suited to the needs of automated test equipment and RF requirements, specifically engineered for OEM designs and maintenance of existing production fixtures.

  • Reed relay
  • Nominal coil voltage options available 5VDC or 12VDC
  • Contact form of 1C
  • Switching voltage of 100V
  • Dielectric strength of 200VDC
  • Contact rating 3W
  • Switching current 0.25A
  • Temperature range −20°C to +85°C
  • Encapsulated PICO package

Typical Applications include:

  • Automated test equipment
  • RF requirements

For further information regarding coil specifications, contact ratings and relay specifications please see the datasheet on the Technical Library tab.


Clear
Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Weight 0.00000 kg

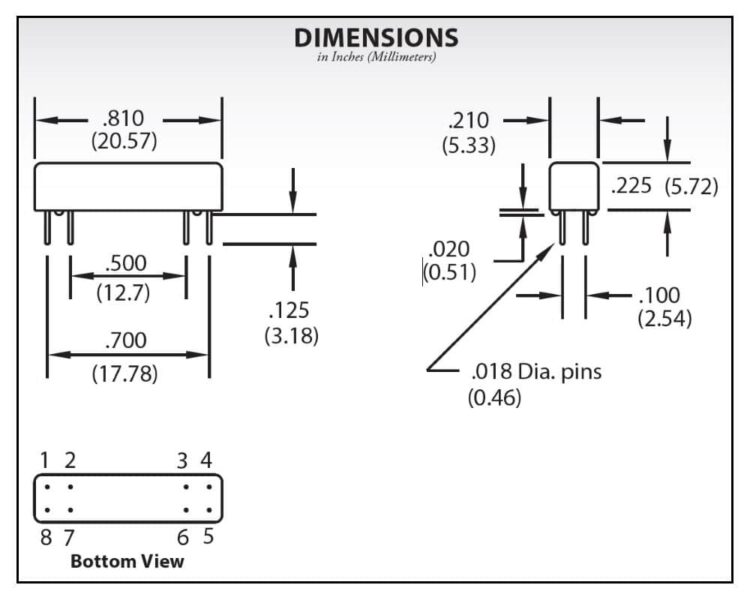

Dimensions 6.23 x 5.33 x 20.57mm
