Coto 3602 Series

  • Coto Technology

Product Features

  • Surface-mount low thermal EMF reed relays
  • High insulation resistance of 1012Ω minimum
  • Switching current 0.25A
  • Electrostatic shield standard for reducing capacitive coupling
  • Low thermal EMF range of between <0.5µV and <5µV
  • Epoxy coated steel shell provides magnetic shielding
  • Temperature range −20°C to +85°C

Applications

  • Compliant

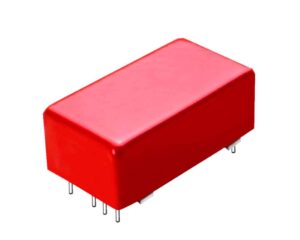

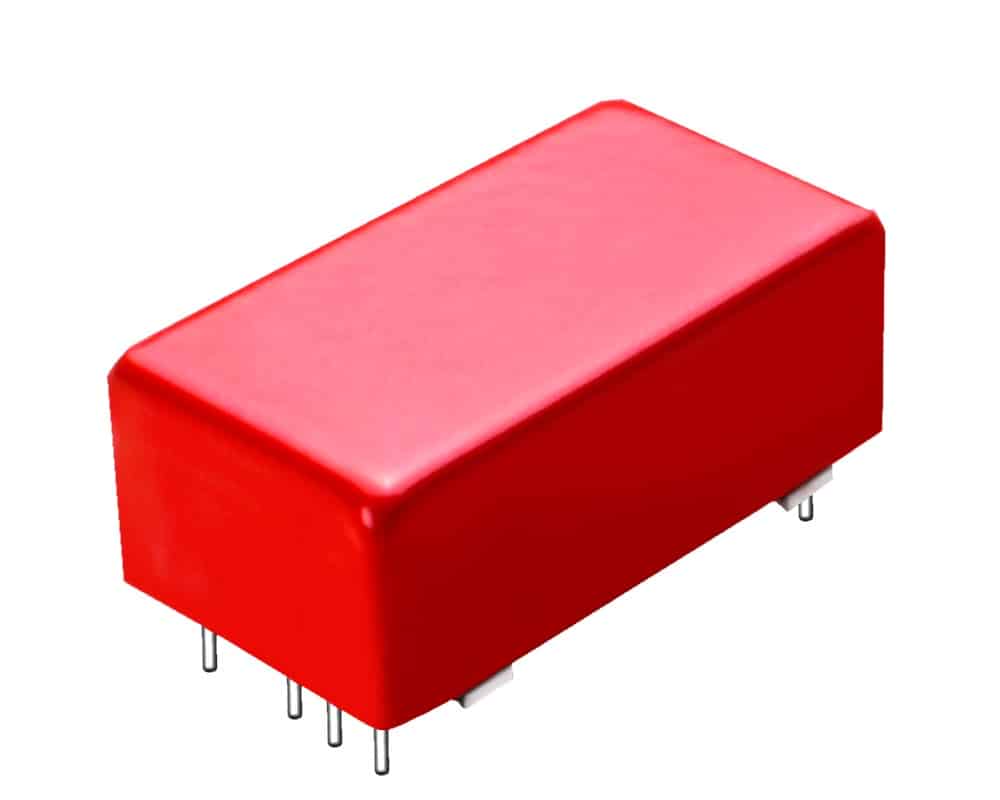

The 3602 surface-mount low thermal EMF reed relay series from Coto features available coil voltage options of 5VDC and 12VDC with a switching voltage of 150V and switching current of 0.25A. The 3602 series is designed to a offer low thermal EMF range of <0.5µV to <5µV with an epoxy coated steel shell providing magnetic shielding, an electrostatic shield as standard for reducing capacitive coupling, as well as hermetically sealed contacts for long life and high reliability. The 3602 series is ideally suited to the needs of instrumentation, data acquisition and process control.

  • Surface-mount low thermal EMF Reed Relay
  • Nominal coil voltage options of 5VDC and 12VDC
  • Contact form of 2A
  • Switching voltage of 150V
  • Dielectric strength of 250VDC
  • Thermal EMF options range between <0.5µV and <5µV
  • Contact rating 5W
  • Switching current 0.25A
  • High insulation resistance of 1012Ω minimum
  • Temperature range −20°C to +85°C
  • Potted package size

Typical Applications include:

  • High accuracy DVM’s
  • Multiplexers
  • Digital or analog multi-point recorders

For further information regarding coil specifications, contact ratings and relay specifications please see the datasheet on the Technical Library tab.

Specifications

Weight 0.00000 kg
Dimensions 12.06 x 16.76 x 30.48mm
Coil Voltage

5V, 12V

Contact Form

2A

Contact Rating

5W

Dielectric Strength

250VDC

Series / Model

Voltage Rating

RoHS Compliant Product – Coto

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
