| Weight | 0.00000 kg |
|---|---|
| Dimensions | 6.98 x 8.46 x 19.50mm |
| Coil Voltage | 5V, 12V, 24V |
| Contact Form | 2A |
| Contact Rating | 10W |
| Dielectric Strength | 250VDC |
| Diode Option | Diode, No Diode |
| Series / Model | |
| Shielding | Electrostatic Shield, No Shield |
| Switching Voltage | 200V |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

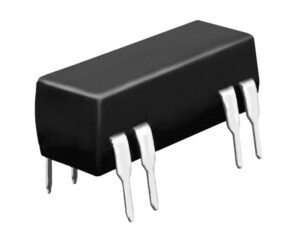

The 8L02 surface-mount economy DIP reed relay series from Coto features available coil voltage options of 5VDC, 12VDC and 24VDC with a switching voltage of 200V and switching current of 0.5A. The 8L02 series is designed as a drop-in low cost replacement for industry standard DIP packages with a moulded thermostat body on integral lead frame design, hermetically sealed contacts, with optional electrostatic shield and coil suppression diode. The 8L02 series is ideally suited to the needs of telecom, security and other general purpose applications.
Coto is a worldwide market leader of small signal-switching products sold into the Automatic Test Equipment, Data Acquisition, Instrumentation, Process Control, Telecommunications, Medical and Security markets. Coto specialises in the manufacture of relay, switch and sensor products. Coto are the pioneers of the RedRock® analog and digital TMR magnetic sensors, offering the lowest power consumption, highest sensitivity, ultra-miniature package size, short lead times and a highly-competitive price. Please visit https://cotorelay.com/ for more information.
