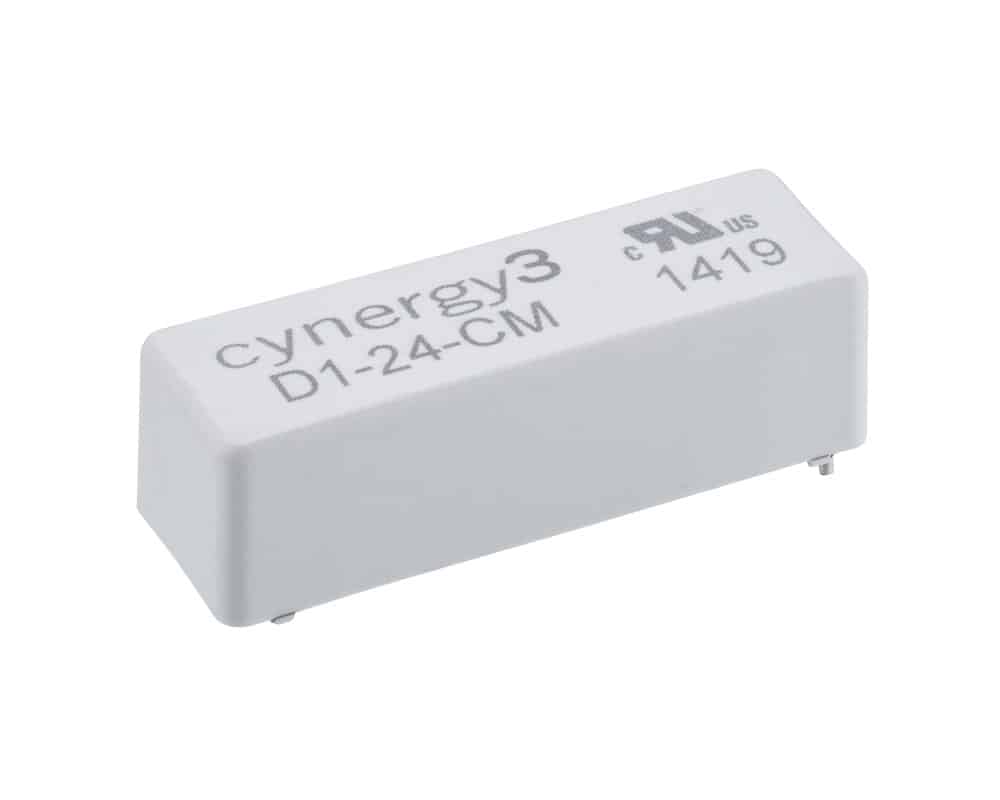

Cynergy3 D1 Form C (changeover) Relay Series

  • Cynergy3

Product Features

  • D Size Form C (Changeover) relays
  • UL Approved
  • 100W switching po
  • Excellent switching characteristics
  • With or without magnetic screen
  • UL

Applications

The D1 series of reed relays with changeover contacts offers 100W switching power (at 33.3V DC switching voltage), an isolation across contacts of 0.75kV (AC or DC peak) and highly reliable tungsten contacts. These relays utilise high vacuum reed switches to achieve their excellent switching characteristics, and are often used in safety critical applications. The D1 series of relays is offered with or without magnetic screen and is PCB mountable, with custom mounting options available upon request. The series has been UL approved as per pollution degree 2 classification. The D1 series offers a working temperature range from -40°C up to +65°C.

  • UL approved, D Size Form C (Changeover) relays
  • 100W switching power
  • Tungsten changeover contacts
  • Isolation across contacts 0.75kV (AC or DC peak)
  • Maximum switching voltage of 240V DC
  • Choice of three coil voltage ratings – 5V, 12V or 24V DC

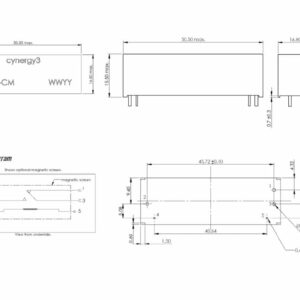

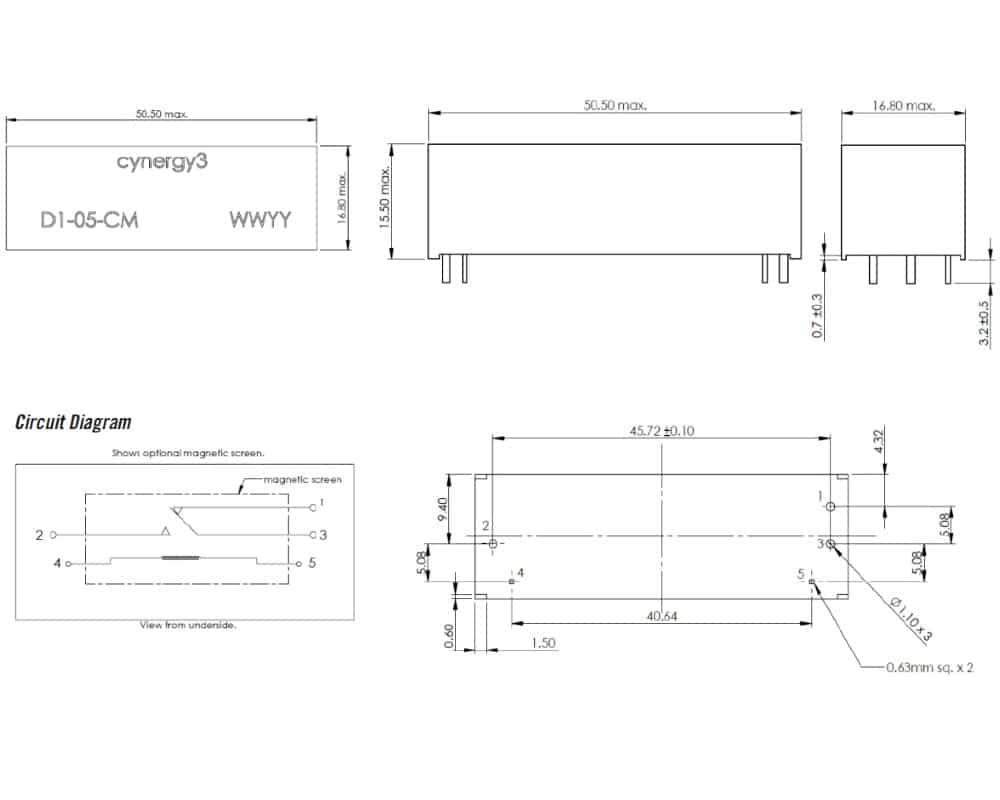

  • PCB mount (custom mounting options available upon request)
  • Available with or without magnetic screen
  • Temperature range from -40°C up to +65°C

Typical applications for the Cynergy3 D1 changeover relay series include:

  • Test equipment
  • High voltage power supplies

The below table gives the full specifications for each resistor model available including the Cynergy3 D1 series:

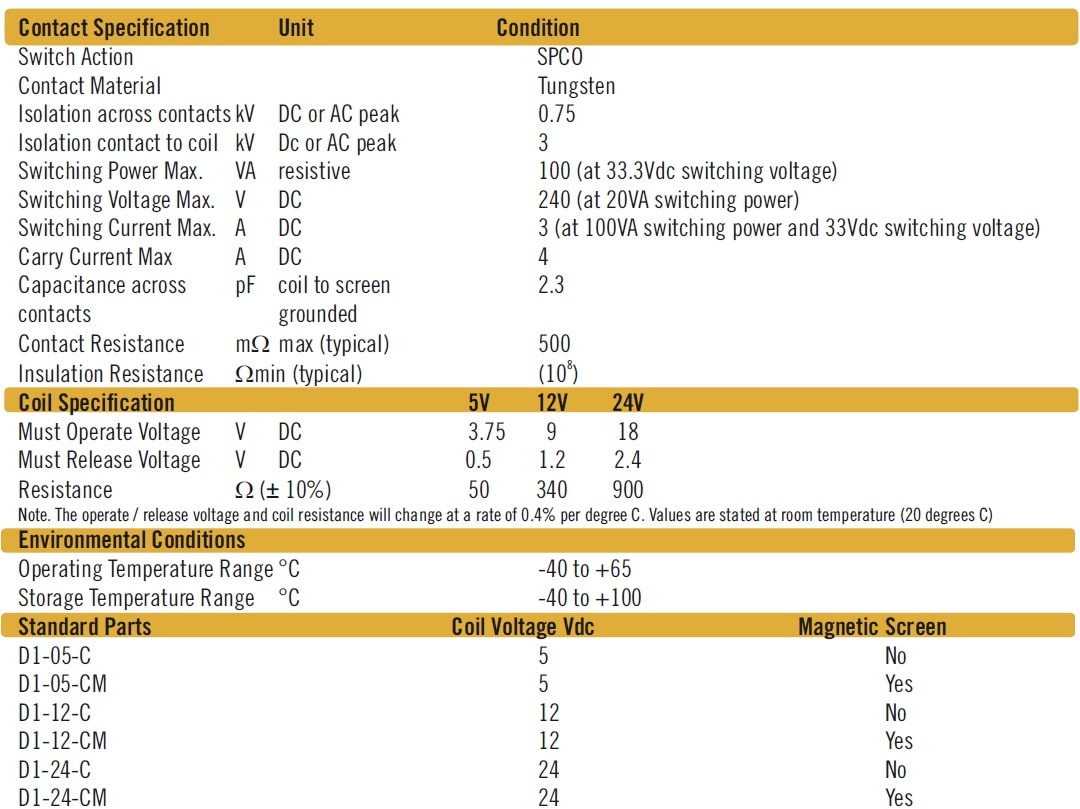

Cynergy3 D1 series specifications
