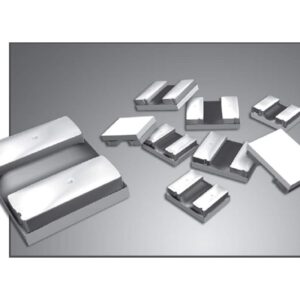

Caddock CD2015FC Series

  • Caddock

Product Features

  • Low resistance precision flip-chip surface-mount resistor
  • Utilises the proven Caddock Micronox® resistance films to achieve the unique low resistance range
  • Pedestal terminal design helps maintain precision and its copper core provides heat spreading which enhances the high power handling capabilities
  • Chip size of 2015
  • Bare ceramic back surface
  • Inductance of less than 5nH typical
  • Maximum chip temperature of +150°C
  • Operating temperature range of -55°C to +150°C

Applications

Description

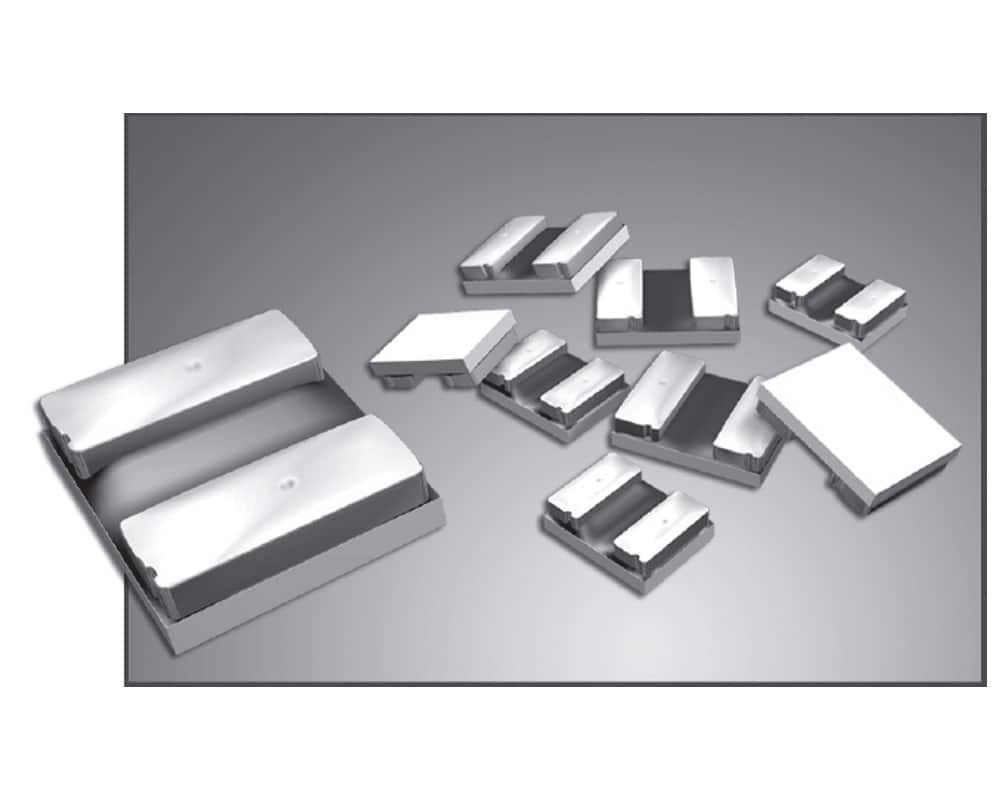

The CD2015FC low resistance precision flip-chip surface-mount resistor series from Caddock offers resistance values from as low as 0.01Ω up to 0.2Ω making it ideal for current sensing applications. The CD2015FC series features a unique pedestal terminal design for surface-mount applications as well as low inductance of 5nH (typical) which provides excellent high frequency and pulse response, with high pulse handling and overload capabilities. For general applications, the CD2015FC series has a power rating of 1W (at +70°C).

  • Flip-chip version for surface-mount applications (FC)
  • 2015 chip size
  • Resistance values from 0.01Ω to 0.2Ω
  • Pedestal terminal design helps maintain precision and its copper core provides heat spreading which enhances the high power handling capabilities
  • Bare ceramic back surface
  • High pulse handling and overload capabilities
  • Low inductance of 5nH (typical) provides excellent high frequency and pulse response
  • Tolerance of ±1.0%
  • TCR from as low as 0 to +100 ppm/°C (resistance values of 0.05Ω up to 0.2Ω)
  • Operating temperature range from -55°C up to +150°C

Thermal resistance is provided for the CD2015FC series to optimise high power designs when utilising higher thermal conductivity circuit board substrates such as IMS or Alumina. Please see datasheet for further details.

Please note that during soldering of all CD resistors from Caddock, the soldering temperature profile must not cause the pedestal terminals of this device to exceed +220°C.

The recommended solders for flip-chip solder attachment are Sn (62) / Pb (36) / Ag (2).

The below table gives the available specifications for the complete CD FC series including the CD2015FC:

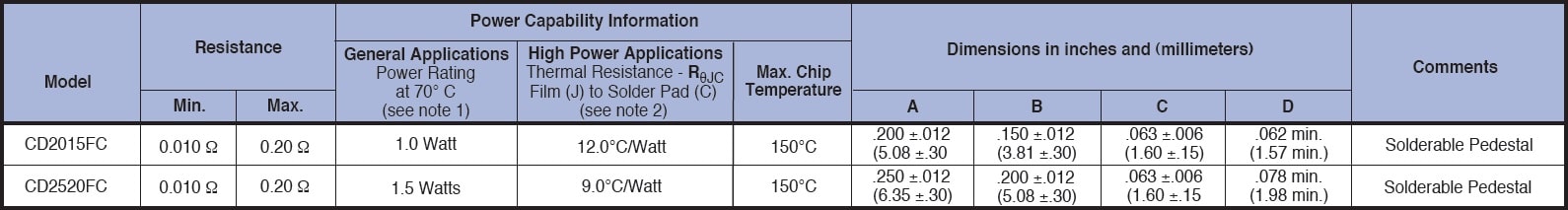

Caddock CD FC Specifications

Please see datasheet for notes relating to the power capabilities.


Specifications

Weight 0.00000 kg

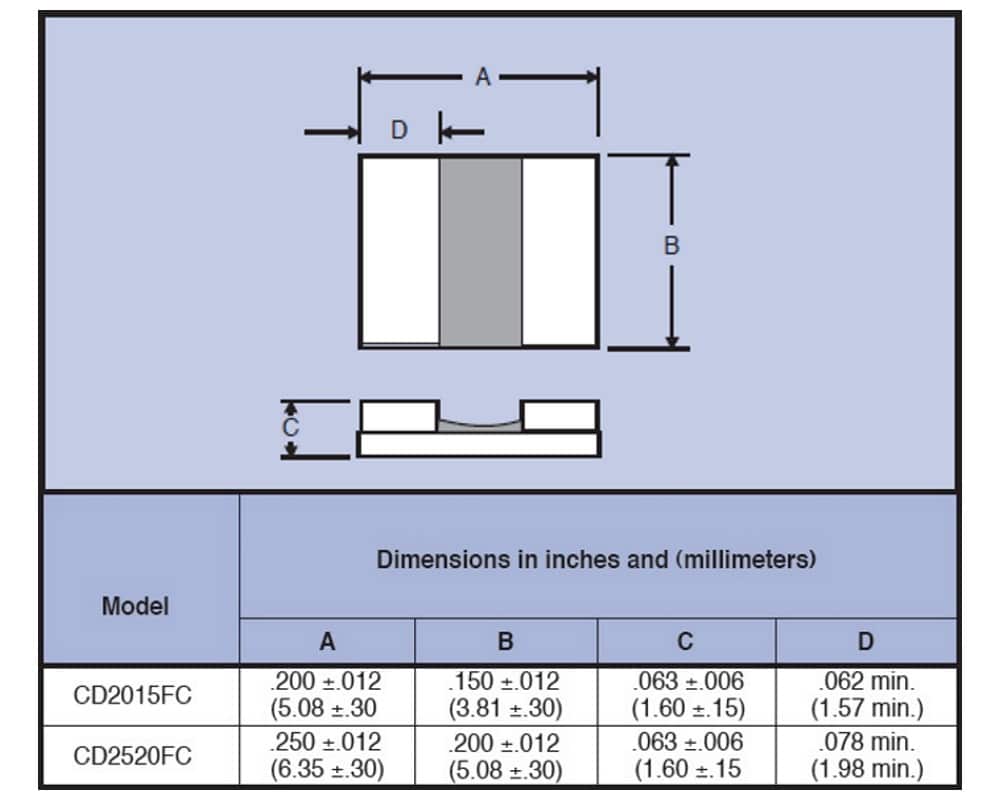

Dimensions 5.08 × 3.81 × 1.60 mm
Minimum Resistance

Maximum Resistance

Temperature Coefficient

,

Power Rating

Additional Features

Tolerance

RoHS Compliant Product but not process – Caddock

This product is available fully compliant to the RoHS EU directive 2011/65/EU, but are not compatible with high temperature lead-free solder reflow processes. The bodies of these resistors must not exceed 219°C.

Caddock CD Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Caddock CD low resistance precision chip resistor series datasheet
Designing with Caddock TO-style heat sink mountable power film resistors application note (AEN-0101)
Understanding the power rating of Caddock MP9100 resistors application note (AEN-0102)
Application of the type CHR high resistance precision chip resistor products application note (AEN-0103)
Terminal finish and soldering process information for Caddock resistor products application note (AEN-0104)
Caddock resistor products and the RoHS directive application note (AEN-0105)
Customer applications that are outside the scope of the RoHS directive application note (AEN-0106)
Caddock REACH compliance statement application note (AEN-0107)
Recommended solder reflow profile for Caddock surface-mount resistors application note (AEN-0108)
