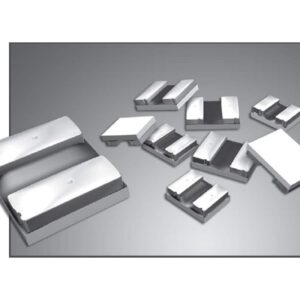

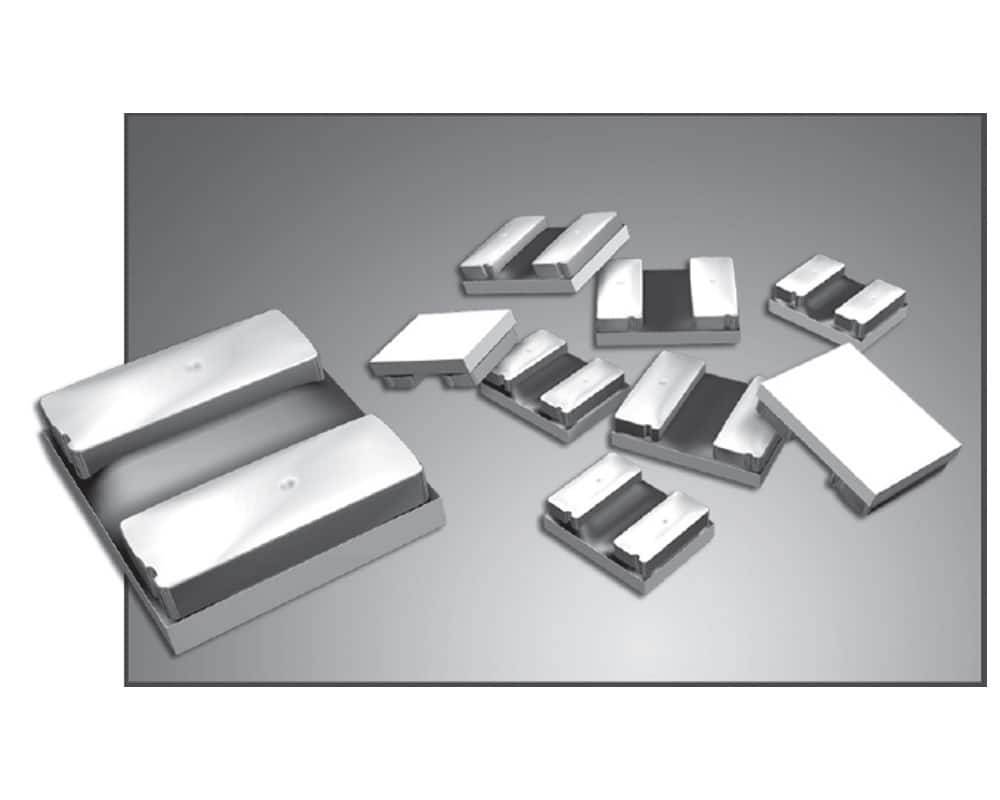

Caddock CD2520FC Series

  • Caddock

Product Features

  • Low resistance precision flip-chip surface-mount resistor
  • Utilises the proven Caddock Micronox® resistance films to achieve the unique low resistance range
  • Pedestal terminal design helps maintain precision and its copper core provides heat spreading which enhances the high power handling capabilities
  • Chip size of 2520
  • Bare ceramic back surface
  • Inductance of less than 5nH typical
  • Maximum chip temperature of +150°C
  • Operating temperature range of -55°C to +150°C



The CD2520FC low resistance precision flip-chip surface-mount resistor series from Caddock offers resistance values from as low as 0.01Ω up to 0.2Ω making it ideal for current sensing applications. The CD2520FC series features a unique pedestal terminal design for surface-mount applications as well as low inductance of 5nH (typical) which provides excellent high frequency and pulse response, with high pulse handling and overload capabilities. For general applications, the CD2520FC series has a power rating of 1.5W (at +70°C).

  • Low resistance precision flip-chip resistor
  • Flip-chip version for surface-mount applications (FC)
  • 2520 chip size
  • Resistance values from 0.01Ω to 0.2Ω
  • Pedestal terminal design helps maintain precision and its copper core provides heat spreading which enhances the high power handling capabilities
  • Bare ceramic back surface
  • High pulse handling and overload capabilities
  • Low inductance of 5nH (typical) provides excellent high frequency and pulse response
  • Tolerance of ±1.0%
  • TCR from as low as 0 to +100 ppm/°C (resistance values of 0.05Ω up to 0.2Ω)
  • Operating temperature range from -55°C up to +150°C

Thermal resistance is provided for the CD2520FC series to optimise high power designs when utilising higher thermal conductivity circuit board substrates such as IMS or Alumina. Please see datasheet for further details.

Please note that during soldering of all CD resistors from Caddock, the soldering temperature profile must not cause the pedestal terminals of this device to exceed +220°C.

The recommended solders for flip-chip solder attachment are Sn (62) / Pb (36) / Ag (2).

The below table gives the available specifications for the complete CD FC series including the CD2520FC:

Caddock CD FC Specifications

Please see datasheet for notes relating to the power capabilities.


Weight 0.00000 kg

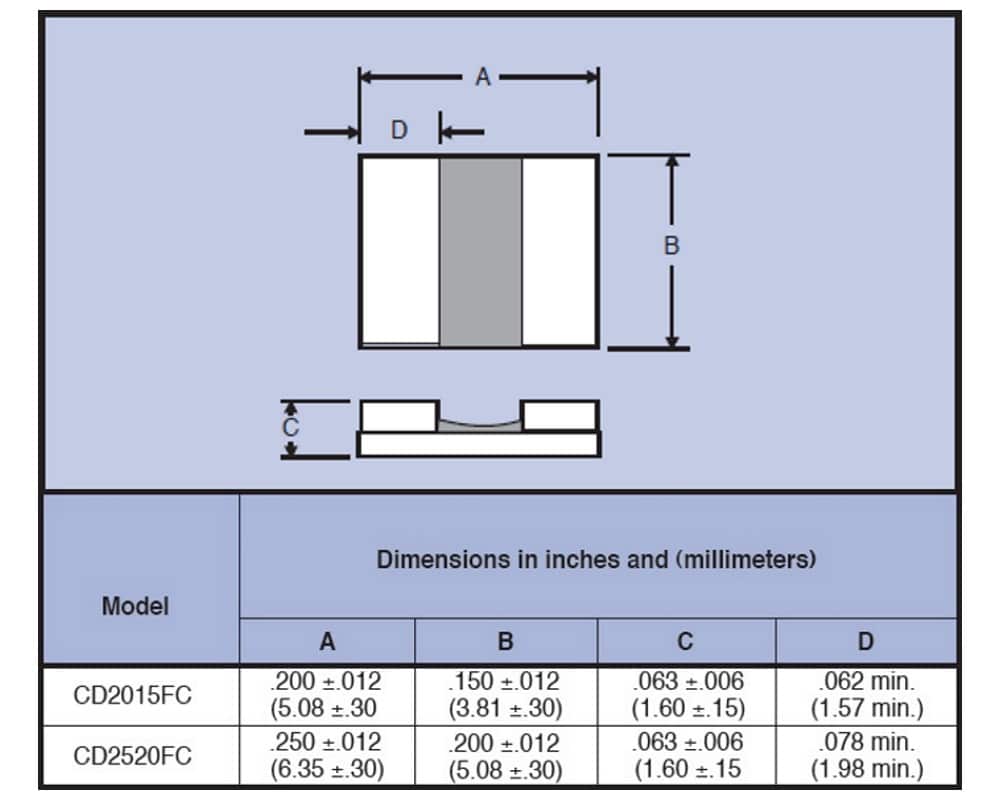

Dimensions 6.35 × 5.08 × 1.60 mm
Minimum Resistance

Maximum Resistance

Temperature Coefficient


Power Rating

Additional Features


RoHS Compliant Product but not process – Caddock

This product is available fully compliant to the RoHS EU directive 2011/65/EU, but are not compatible with high temperature lead-free solder reflow processes. The bodies of these resistors must not exceed 219°C.
