Isabellenhütte BAC Series

  • Isabellenhütte

Product Features

  • Shunt resistor
  • 8420 Package size
  • Resistance values of 50µΩ or 100µΩ
  • Tolerance of ±5.0%
  • TCR of <±150 ppm/°C
  • Power rating of 15W or 10W
  • Temperature range from -10°C to +125°C

Applications

  • Compliant

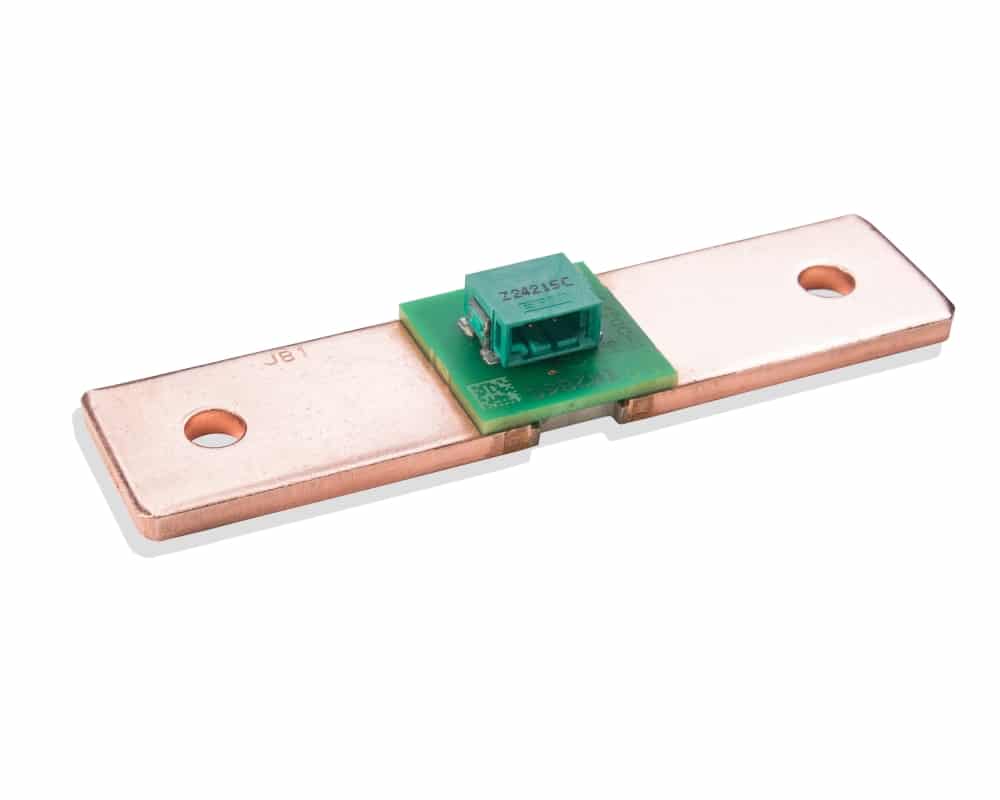

The BAC current & voltage sensing resistor series from Isabellenhütte has a built-in PCB with a connector. This shunt resistor offers low resistance value options of 50µΩ or 100µΩ making these parts ideal for battery management systems or welding equipment. The BAC series is available with untinned or Ni-plated terminals and a continuous load up to 550A (50µΩ). All of this is based on a package size of 8420.

  • Shunt resistor
  • Bolt down design with a maximum fastening torque of 10Nm
  • Resistance values of 50µΩ or 100µΩ
  • Tolerance of ±5.0%
  • TCR of <±150 ppm/°C (+20°C to +60°C)
  • Temperature range from -10°C to +125°C
  • Power rating of 15W or 10W
  • Inductance of <3nH
  • Available with untinned or Ni-plated terminals
  • 8420 Package size



Typical applications for the BAC current & voltage sensing resistor series include:

  • Current sensor for electronic battery management in cars, trucks, forklifts and other hybrid and electric vehicles
  • Current sensing in bus bars
  • Current sensing in welding equipment

Isabellenhütte BAC Series Specification Table

AttributesValue
Product Ordering CodeBAC-M-R0001-5.0-NIBAC-M-R00005-5.0-NI
Resistance Value 0.1mΩ0.05mΩ
Tolerance±5%±5%
TCR<±150 ppm/°C (20-60°C)<±150 ppm/°C (20-60°C)
Temperature range-10°C to +125°C-10°C to +125°C
Power rating10W15W
Internal heat resistance2°C/W (Rth)1.3°C/W (Rth)
Thermal EMV<1μV/°C (0-60°C)<1μV/°C (0-60°C)
Inductance<3nH<3nH
Stability (deviation after 2000hrs)<0.5% (Tᴋ = 105°C)
Tᴋ = Terminal Temperature
<0.5% (Tᴋ = 105°C)
Tᴋ = Terminal Temperature

Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de for more information.

Clear
Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

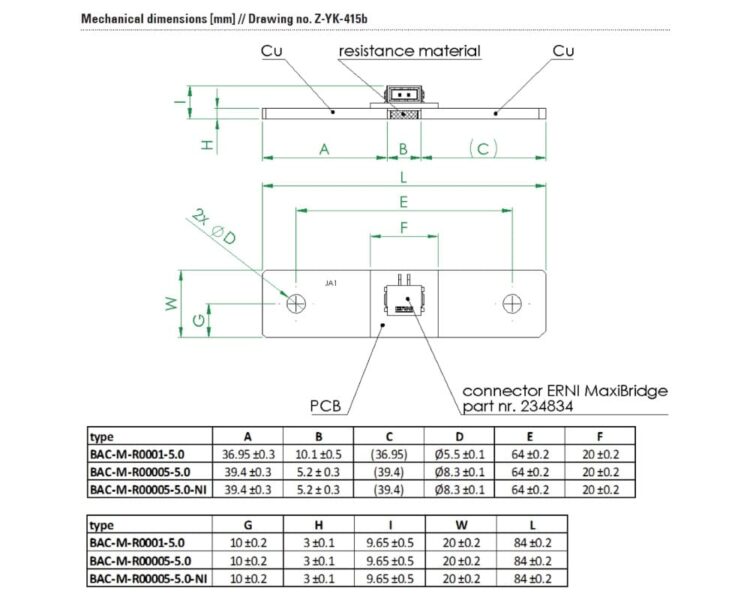

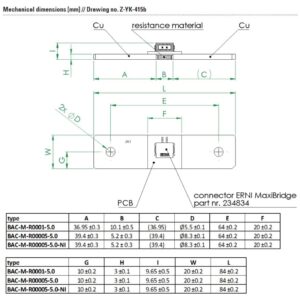

Dimensions 9.85 x 20 x 87mm
Product Type

Package / Size

,

Minimum Resistance

Maximum Resistance

Material Type

Resistance Value

,

Tolerance

Temperature Coefficient

Current Rating

Power Rating

,

Temperature Range (°C)

Termination / Connection Type

,

Series / Model

Isabellenhütte BAC Series Ordering Info

Below is the model number configuration for the BAC series from Isabellenhütte.

Ordering example: BAC-M-R00005-5.0-NI
BACXXXXXXXX.XXX

Series / Model (BAC)

BAC
BAC

Material Type (X)

M
MANGANIN®

Resistance Value (XXXXXX)

Resistance value, in ohms, is expressed by a series of 5 or 6 characters, where the character R (ohms) designates the location of the decimal point.

Tolerance (X.X)

5.0
±5%

Termination / Connection Type (XX)

NI for Nickel plated terminations or alternatively leave blank for standard terminations

Isabellenhütte BAC Series – Available Resistance Values and Tolerances


Resistance Value Part Number Value 5% Tolerance
0.00005Ω R00005
0.0001Ω R0001
