Isabellenhütte SMV-PW Series

  • Non-compliant
  • Isabellenhütte

Product Features

  • Space approved precision resistor
  • 4-terminal surface-mount 4723 chip size
  • Resistance range from 0.0033Ω to 1Ω
  • Tolerances of ±0.5% and ±1%
  • TCR from ≤50 ppm/°C (+20°C to +60°C)
  • Power rating of 3W (at +80°C)
  • Temperature range from -55°C to +140°C
  • Aerospace

Applications

  • Aerospace

Description

The SMV-PW space approved precision resistor series from Isabellenhütte offers SnPb tinned connections suitable for aviation and aerospace applications. Developed to be ESCC 4001/028 qualified, with a temperature range of -55°C to +140°C, with a 3W permanent power at 80°C and selective resistance values available are between 0.0033Ω and 1Ω. The SMV-PW series from Isabellenhütte offers high pulse power rating and is suitable for reflow, infrared and wave soldering. The SMV-PW come in a 4-terminal surfacemount design with a 4723 chip size

  • Space approved precision resistor
  • 4-terminal surface-mount design in a 4723 chip size
  • Resistance range from 0.0033Ω to 1Ω
  • Tolerances of ±0.5% and ±1%
  • TCR of ≤50ppm/°C at ≤0.01Ω or ≤100ppm/°C at >±0.01Ω (+22°C to +60°C)
  • Permanent power of 3W (at +80°C)
  • Continuous current load up to 30A (0.0033Ω)
  • Temperature range from -55°C to +140°C
  • Stability of <0.2% (TK=80°C)
    (at rated power, deviation after 2000h according to ESCC generic specification)
  • SnPb tinned contacts
  • ESCC 4001/028 qualified



Typical applications for the SMV-PW space approved precision resistor series include:



Isabellenhütte SMV-PW Series Specification Table

Attributes
Resistance value *3.3mΩ to ≤10mΩ>10mΩ to 1Ω
Tolerance *±0.5% / ±1%±0.5% / ±1%
TCR±50ppm/°C (+22°C to +60°C)±30ppm/°C (+22°C to +60°C)
Temperature range
-55°C to +140°C-55°C to +140°C
Power rating3W3W
Internal heat resistance <20°C/W (Rthi)<20°C/W (Rthi)
Isolation voltage1000V AC/DC1000V AC/DC
Stability (deviation after 2000hrs)
According to ESCC Generic Specification
<0.2% (Tᴋ = 80°C)
Tᴋ = Terminal Temperature
<0.2% (Tᴋ = 80°C)
Tᴋ = Terminal Temperature

* For further details please see the Ordering Info tab


Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de/en/ for more information.

Specifications

Weight 0.00000 kg

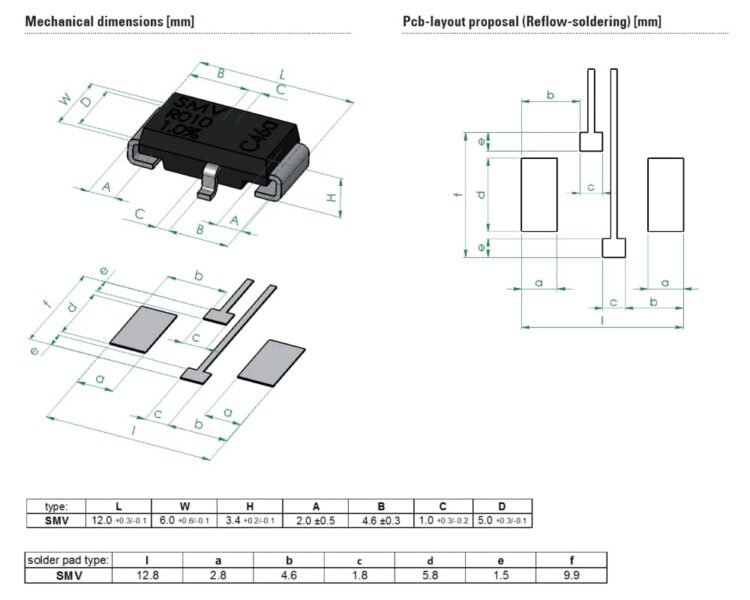

Dimensions 12.00 × 6.00 × 3.40 mm
Product Type

Temperature Coefficient

,

Minimum Resistance

Series / Model

Maximum Resistance

Tolerance

,

Power Rating

Resistance Value

, , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Current Rating

Package / Size

,

Termination / Connection Type

Temperature Range (°C)

Isabellenhütte SMV-PW Series Resources

Product Datasheet

Supporting Product Information

Supporting Manufacturer Information

Isabellenhütte SMV-PW Series Ordering Info

The SMV-PW resistor series is available with various options including standard resistance values and tolerances. The information below gives an example of the part numbering system used for these resistors and the standard options available.

Below is an example of the part number break down for the SMV-PW resistor series:

SMV-PW Series Ordering Info

Isabellenhütte SMV-PW Series – Available Resistance Values, Tolerances & ESCC Numbers *


Resistance Value Part Number Value 0.5% Tolerance 1% Tolerance
0.0033Ω R0033
ESCC: 400102802R0033F
0.0039Ω R0039
ESCC: 400102802R0039F
0.005Ω R005
ESCC: 400102802R005F
0.0068Ω R0068
ESCC: 400102802R0068F
0.01Ω R010
ESCC: 400102802R010D

ESCC: 400102802R010F
0.012Ω R012
ESCC: 400102802R012D
0.015Ω R015
ESCC: 400102802R015D

ESCC: 400102802R015F
0.018Ω R018
ESCC: 400102802R018D

ESCC: 400102802R018F
0.02Ω R020
ESCC: 400102802R020D

ESCC: 400102802R020F
0.022Ω R022
ESCC: 400102802R022D

ESCC: 400102802R022F
0.027Ω R027
ESCC: 400102802R027D
0.033Ω R033
ESCC: 400102802R033D

ESCC: 400102802R033F
0.039Ω R039
ESCC: 400102802R039D

ESCC: 400102802R039F
0.047Ω R047
ESCC: 400102802R047D

ESCC: 400102802R047F
0.05Ω R050
ESCC: 400102802R050F
0.056Ω R056
ESCC: 400102802R056D
0.068Ω R068
ESCC: 400102802R068D

ESCC: 400102802R068F
0.082Ω R082
ESCC: 400102802R082D
0.1Ω R100
ESCC: 400102802R100D

ESCC: 400102802R100F
0.12Ω R120
ESCC: 400102802R120F
0.15Ω R150
ESCC: 400102802R150D

ESCC: 400102802R150F
0.18Ω R180
ESCC: 400102802R180D

ESCC: 400102802R180F
0.2Ω R200
ESCC: 400102802R200F
0.22Ω R220
ESCC: 400102802R220D

ESCC: 400102802R220F
0.33Ω R330
ESCC: 400102802R330D

ESCC: 400102802R330F
0.47Ω R470
ESCC: 400102802R470D

ESCC: 400102802R470F
0.56Ω R560
ESCC: 400102802R560D
0.68Ω R680
ESCC: 400102802R680D

ESCC: 400102802R680F
1R00
ESCC: 4001028021R0D0

ESCC: 4001028021R00F

* Other resistance values available upon request
