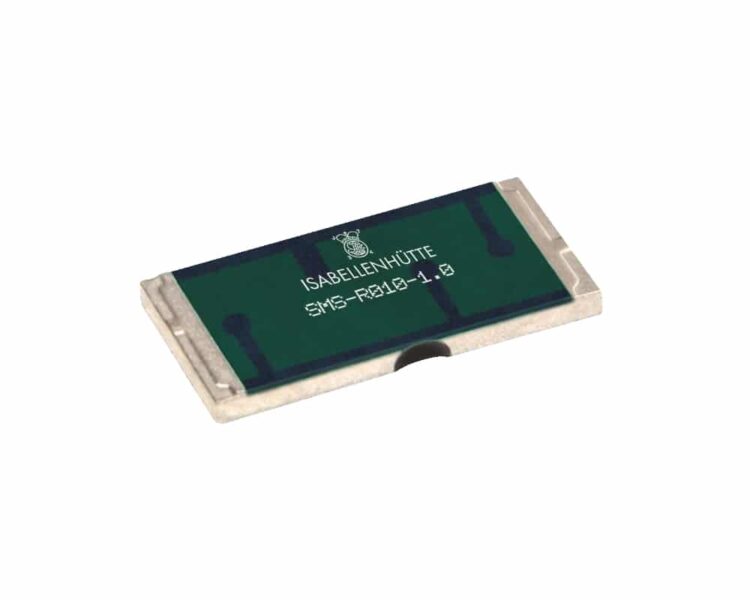

Isabellenhütte SMS-PW Series

  • Isabellenhütte

Product Features

  • Space approved current sensing precision resistor
  • 2-terminal surface-mount design in a 2512 chip size
  • Resistance range of 0.003Ω to 1Ω
  • Tolerances of ±0.5% and ±1%
  • TCR from ±50ppm/°C (+22°C to +60°C)
  • Power rating of 2W (at +120°C)
  • Temperature range from -55°C to +170°C
  • Aerospace

Applications

  • Non-compliant

Description

The SMS-PW space approved current sensing precision resistor series from Isabellenhütte offers SnPb tinned connections suitable for aviation and aerospace applications being ESCC 4001/027 qualified. Higher power ratings and low internal temperature rises due to the larger pad termination sizes. The MANGANIN® alloy resistance element has a resistance range of 0.003Ω to 1Ω, TCR of ±50ppm/°C at ≥0.01Ω or ±100ppm/°C at <±0.01Ω over the temperature range of +22°C to +60°C (please see the table below for further information) and offers excellent long term stability. The SMS-PW model offers these capabilities in a 2512 chip size.

  • Space approved current sensing precision resistor
  • 2-terminal surface-mount design in a 2512 chip size
  • Resistance range from 0.003Ω to 1Ω
  • Tolerances of ±0.5% and ±1%
  • TCR of ±50ppm/°C at ≥0.01Ω or ±100ppm/°C at <±0.01Ω (+22°C to +60°C)
  • Permanent power rating of 2W (at +120°C)
  • Constant current up to 25A (0.005Ω)
  • Temperature range from -55°C to +170°C
  • Stability of <0.2% (TK=120°C)
    (at rated power, deviation after 2000h according to ESCC generic specification)
  • SnPb tinned connections
  • ESCC 4001/027 qualified



Typical applications for the SMS-PW Space approved current sensing precision resistor series include:

  • Aviation and aerospace applications
  • Current sensor for power hybrid applications
  • Control systems for the automotive market
  • Frequency converters and power modules
  • Switch mode power supplies



Isabellenhütte SMS-PW Series Specification Table

Attributes
Resistance value *3mΩ to <10mΩ10mΩ to 1Ω
Tolerance *±0.5% / ±1%±0.5% / ±1%
TCR-140, +0ppm/°C (-55 to +22°C)
±100ppm/°C (+22°C to +170°C)
±100ppm/°C (+22°C to +60°C)
-100, +0ppm/°C (-55 to +22°C)
±60ppm/°C (+22°C to +170°C)
±50ppm/°C (+22°C to +60°C)
Temperature range
-55°C to +170°C-55°C to +170°C
Power rating2W2W
Stability (deviation after 2000hrs)
According to ESCC Generic Specification
<0.2% (Tᴋ = 120°C)
Tᴋ = Terminal Temperature
<0.2% (Tᴋ = 120°C)
Tᴋ = Terminal Temperature

* Please contact us or see the Ordering Info tab for more information on the standard resistance values and tolerance


Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de/en/ for more information.

Specifications

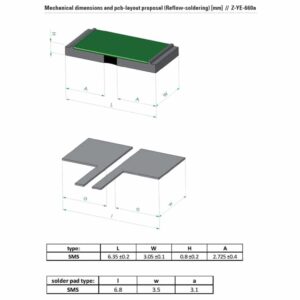

Dimensions 6.35 × 3.05 × 0.80 mm
Product Type

Resistance Value

, , , , , , , , , , , , , , , , , , , , , , , , , ,

Minimum Resistance

Series / Model

Maximum Resistance

Temperature Coefficient

, , , ,

Tolerance

,

Power Rating

Current Rating

Package / Size

Termination / Connection Type

Temperature Range (°C)

Isabellenhütte SMS-PW Series Resources

Product Datasheet

Supporting Product Information

Supporting Manufacturer Information

Isabellenhütte SMS-PW Series Ordering Info

The SMS-PW resistor series is available with various options including standard resistance values and tolerances. The information below gives an example of the part numbering system used for these resistors and the standard options available.

Below is an example of the part number break down for the SMS-PW resistor series:

SMS-PW Series Ordering Info

Isabellenhütte SMS-PW Series – Available Resistance Values, Tolerances & ESCC Numbers *


Resistance Value Part Number Value 0.5% Tolerance 1% Tolerance
0.005Ω R005
ESCC: 400102705R005F
0.008Ω R008
ESCC: 400102705R008D
0.01Ω R010
ESCC: 400102702R010D

ESCC: 400102702R010F
0.015Ω R015
ESCC: 400102702R015D

ESCC: 400102702R015F
0.020Ω R020
ESCC: 400102702R020F
0.022Ω R022
ESCC: 400102702R022F
0.027Ω R027
ESCC: 400102702R027F
0.033Ω R033
ESCC: 400102702R033D

ESCC: 400102702R033F
0.04Ω R040
ESCC: 400102702R040F
0.047Ω R047
ESCC: 400102702R047F
0.05Ω R050
ESCC: 400102702R050D

ESCC: 400102702R050F
0.056Ω R056
ESCC: 400102702R056F
0.068Ω R068
ESCC: 400102702R068D

ESCC: 400102702R068F
0.082Ω R082
ESCC: 400102702R082D
0.1Ω R100
ESCC: 400102702R100D

ESCC: 400102702R100F
0.12Ω R120
ESCC: 400102702R120F
0.15Ω R150
ESCC: 400102702R150F
0.18Ω R180
ESCC: 400102702R180F
0.2Ω R200
ESCC: 400102702R200F
0.22Ω R220
ESCC: 400102702R220D

ESCC: 400102702R220F
0.33Ω R330
ESCC: 400102702R330D

ESCC: 400102702R330F
0.39Ω R390
ESCC: 400102702R390F
0.47Ω R470
ESCC: 400102702R470F
0.5Ω R500
ESCC: 400102702R500F
0.56Ω R560
ESCC: 400102702R560F
0.68Ω R680
ESCC: 400102702R680D

ESCC: 400102702R680F
1R00
ESCC: 4001027021R00D

ESCC: 4001027021R00F

* Other resistance values available on request
