Isabellenhütte VLK Series

Isabellenhütte VLK Series
Isabellenhütte VLK Series
Isabellenhütte VLK Series
  • Isabellenhütte

Product Features

  • Current sensing precision resistor
  • 2-terminal surface-mount 0612 chip size
  • Resistance range from 0.001Ω to 0.005Ω
  • Tolerance range from to ±1.0% to ±5.0%
  • TCR of <±50 ppm/°C
  • Power rating of 1W (at +140°C)
  • Temperature range from -65°C to +170°C
  • Automotive

Applications

  • Automotive
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement
  • Compliant

Description

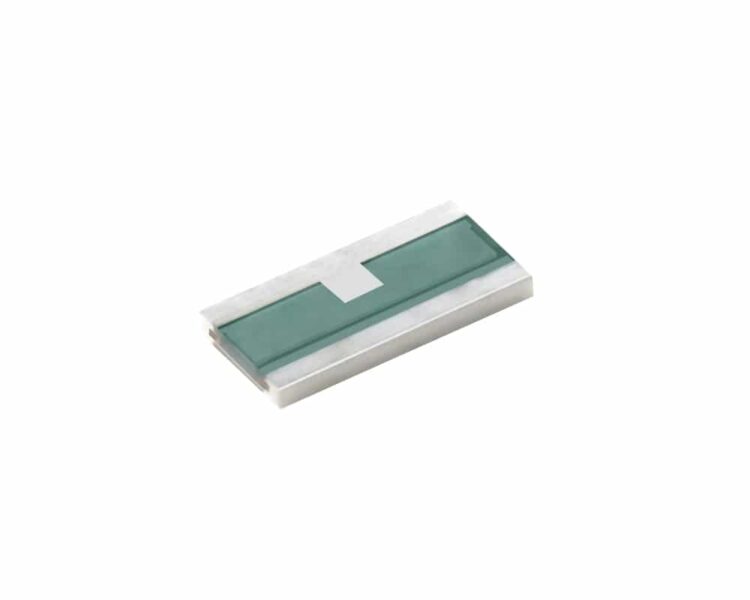

The VLK current sensing precision resistor series from Isabellenhütte offers 2-terminal surface-mount connection technology for current sensing applications. Developed with a small chip size of 0603, low resistance values of 0.001Ω, 0.003Ω and 0.005Ω, and a 1W permanent power rating at +140°C. The VLK series from Isabellenhütte offers excellent long term stability and high pulse power rating.

  • Current sensing precision resistor
  • 2-terminal surface-mount design
  • 0612 chip size
  • Resistance values of 0.001Ω, 0.003Ω and 0.005Ω
  • Tolerances of ±1%, ±3% and ±5%
  • TCR value <±50 ppm/°C (+20°C to +60°C)
  • Power rating 1W (at +140°C)
  • Continuous current up to 30A (0.001Ω)
  • Temperature range from -65°C to +170°C
  • Excellent long term stability
  • Mounting: reflow and IR soldering
  • Suitable for 4 pad layout
  • AEC-Q200 qualified



Typical applications for the VLK current sensing precision resistor series include:

  • Current sensor for power hybrid applications
  • Control systems for the automotive market
  • Frequency converters, power modules and switch mode power supplies



Isabellenhütte VLK Series Specification Table

AttributesValues
Resistance value *1mΩ / 3mΩ / 5mΩ
Tolerance *±1% / ±2% / ±5%
TCR±50ppm/°C (+22°C to +60°C)
Temperature range
-65°C to +170°C
Power rating1W
Internal heat resistance <30°C/W (Rthi)
Dielectric withstanding voltage200V AC/DC
Inductance<1nH
Stability (deviation after 2000hrs)
According to ESCC Generic Specification
<0.5% (Tᴋ = 110°C) / <0.7% (Tᴋ = 140°C)
Tᴋ = Terminal Temperature

* Please contact us or see Ordering Info tab for further details


Isabellenhütte is one of the world’s leading suppliers of high-quality precision and power resistors. They produce these low-resistance resistors for a variety of applications such as the ones above. Isabellenhütte & Rhopoint Components are your ideal partners when it comes to achieving the best possible measurement results in the smallest spaces. Please visit www.isabellenhuette.de for more information.

Specifications

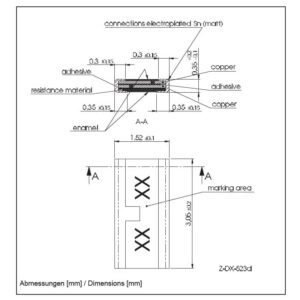

Dimensions 3.05 × 1.52 × 0.35 mm
Series / Model

Product Type

Package / Size

,

Resistance Value

, ,

Minimum Resistance

Maximum Resistance

Tolerance

, ,

Temperature Coefficient

Current Rating

Power Rating

Temperature Range (°C)

Isabellenhütte VLK Series Ordering Info

The VLK resistor series is available with various options including standard resistance values and tolerances. The information below gives an example of the part numbering system used for these resistors and the standard options available.

Below is an example of the part number break down for the VLK resistor series:

VLK Series Ordering Info

Isabellenhütte VLK Series – Available Resistance Values and Tolerances*


Resistance Value Part Number Value 1% Tolerance 2% Tolerance 5% Tolerance
0.001Ω R001
0.003Ω R003
0.005Ω R005

* Further values and tolerances are available upon request, please contact us for more details
