| Weight | 0.00000 kg |
|---|---|
| Dimensions | 0.50 x 1.60 x 3.20mm |
| Maximum Resistance | 30kΩ |
| Minimum Resistance | 5Ω |
| Power Rating | |
| Product Type | |
| Resistance Value | Custom (5Ω – 30Ω), Custom (30Ω – 100Ω), Custom (100Ω – 1kΩ), Custom (1kΩ – 30kΩ) |
| Series / Model | |
| Temperature Coefficient | |
| Temperature Range | -65 to +155°C |
| Termination / Connection | Wrap-around Terminals |
| Tolerance |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

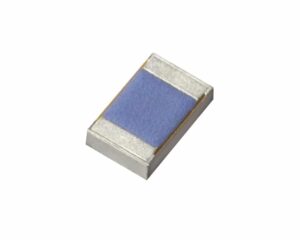

The RWC precision wraparound SMD resistor series from Alpha Electronics offers resistances from 5Ω up to 30kΩ, all with a small 1206 chip size. By utilising Alpha’s Bulk Metal® foil resistor technology, they are able to offer low tolerances down to ±0.01% (between 1kΩ and 30kΩ) as well as a low TCR of ±2 ppm/°C (between -25°C and +125°C) from 100Ω up to 30kΩ. The Alpha RWC series also offers excellent load-life stability of ±0.005% typical (+70°C, 2000 hours at rated power).
The RWC high precision wraparound surface-mount resistor series offers high precision and excellent stability thanks to Alpha’s Bulk Metal® foil resistor technology, making them suitable for the most demanding precision applications.
The below table gives the full specifications for each resistor model available including the Alpha RWC series:
