High Precision series

  • ICS-NH

ICS-NH C10 Type

High precision thin film pressure sensor with 10 mm cup diameter, 1.6 bar to 2,500 bar ranges and stainless steel full-bridge construction.
  • ICS-NH

ICS-NH C8 Type

High precision thin film pressure sensor with 8mm cup diameter and 25 to 800 bar pressure ranges. Features raw mV/V output, 2mV/V nominal span and temperature variants up to -65°C to +260°C.
  • Resi

Resi ARCS6918-L050

High-current shunt sensing module with 50µΩ resistance, 700A rating and low thermal EMF for accurate current measurement in power electronics systems.
  • Compliant
ARCS6918XL050XX
  • Resi

Resi HRES6918BL025MST0

High-precision shunt current sensing module with 25µΩ resistance, 600A rated current and 15mV output for BMS, ESS, EV and eVTOL applications.
  • Compliant
HRES6918BL025MST0
  • Resi

Resi PTFR Series

Precision thin film chip resistor with 10Ω to 5.1MΩ range, tolerance down to ±0.01% and TCR as low as ±5ppm/℃ for high-stability SMD circuits.
  • Compliant
PTFRXXXXXXXXXXX
  • Resi

Resi PZFR Series

Precision foil chip resistor with 5Ω to 125kΩ range, ±0.01% tolerance and ±2 ppm TCR for ultra-stable SMD circuit designs.
  • Compliant
PZFRXXXXXXXXXXX
  • Resi

Resi SRES6918BL100VST0

High-precision shunt current sensing module with 100µΩ resistance, 400A current rating and ±0.1% accuracy for EV, BMS and energy storage systems.
  • Compliant
SRES6918BL100VST0
  • VPG Foil Resistors

VPG RWA Series

  • High precision wraparound resistor
  • Resistance range form 100Ω to 5kΩ
  • Tolerance of ±005% or ±0.1%
  • TCR of ±5 ppm/°C
  • Power rating of 0.1W (at 70°C)
  • Temperature range from -65°C to +155°C
  • Compliant
VPG RWA Series
  • VPG Foil Resistors

VPG RWB Series

  • High precision wraparound resistor
  • Resistance range form 10Ω to 10kΩ
  • Tolerance from ±0.02% to ±0.5%
  • TCR of ±2 ppm/°C, ±5 ppm/°C or ±10 ppm/°C
  • Power rating of 0.2W (at 70°C)
  • Temperature range from -65°C to +155°C
  • Compliant
VPG RWB Series
  • VPG Foil Resistors

VPG RWC Series

  • High precision wraparound resistor
  • Resistance range form 5Ω to 130kΩ
  • Tolerance from ±0.01% to ±0.5%
  • TCR of ±2 ppm/°C, ±5 ppm/°C or ±10 ppm/°C
  • Power rating of 0.3W (at 70°C)
  • Temperature range from -65°C to +155°C
  • Compliant
VPG RWC Series

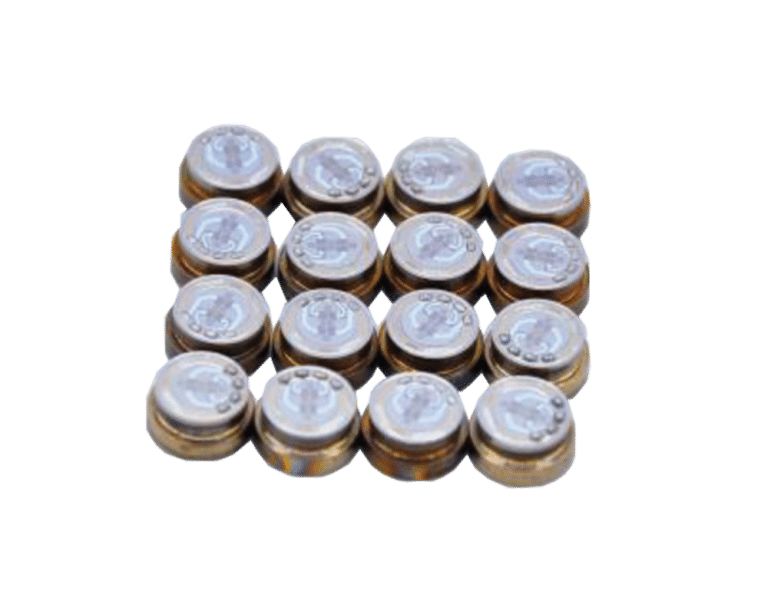

ICS-NH C10 Type

High Precision Pressure Sensor
High precision thin film pressure sensor with 10 mm cup diameter, 1.6 bar to 2,500 bar ranges and stainless steel full-bridge construction.

ICS-NH C8 Type

High Precision Pressure Sensor
High precision thin film pressure sensor with 8mm cup diameter and 25 to 800 bar pressure ranges. Features raw mV/V output, 2mV/V nominal span and temperature variants up to -65°C to +260°C.

Resi ARCS6918-L050

High-Precision Shunt Based Current Sensing Module
High-current shunt sensing module with 50µΩ resistance, 700A rating and low thermal EMF for accurate current measurement in power electronics systems.

Resi HRES6918BL025MST0

High-Precision Shunt Based Current Sensing Module
High-precision shunt current sensing module with 25µΩ resistance, 600A rated current and 15mV output for BMS, ESS, EV and eVTOL applications.

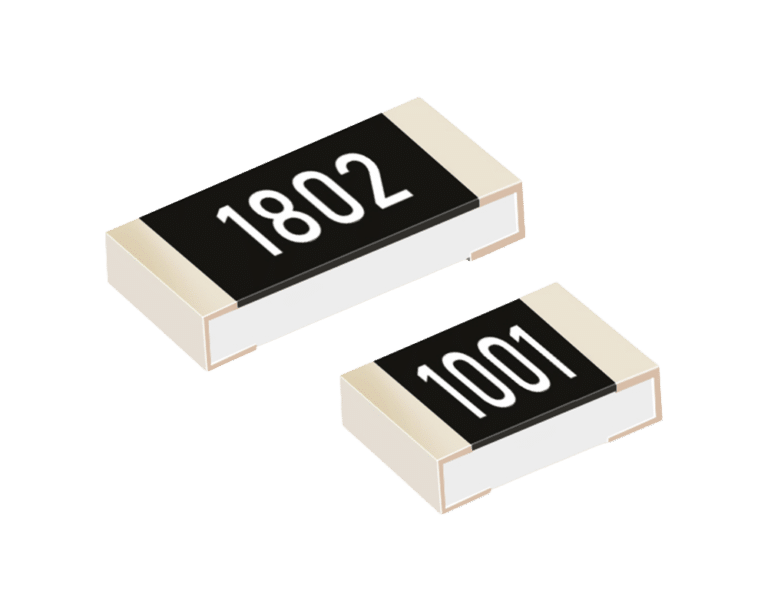

Resi PTFR Series

High-Stability Precision Thin Film Chip Resistor
Precision thin film chip resistor with 10Ω to 5.1MΩ range, tolerance down to ±0.01% and TCR as low as ±5ppm/℃ for high-stability SMD circuits.

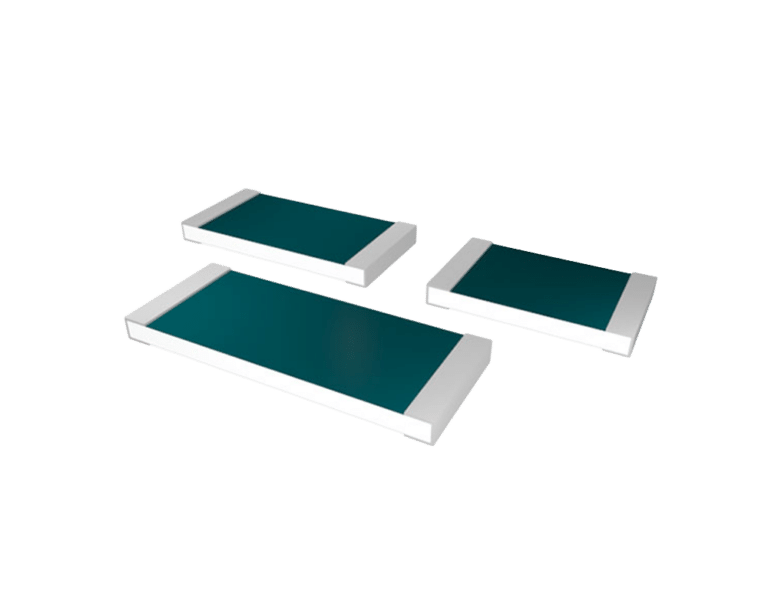

Resi PZFR Series

Precision Foil Chip Resistor
Precision foil chip resistor with 5Ω to 125kΩ range, ±0.01% tolerance and ±2 ppm TCR for ultra-stable SMD circuit designs.

Resi SRES6918BL100VST0

High-Precision Shunt Based Current Sensing Module
High-precision shunt current sensing module with 100µΩ resistance, 400A current rating and ±0.1% accuracy for EV, BMS and energy storage systems.

VPG RWA Series

RWA Surface Mount Precision Resistor
  • High precision wraparound resistor
  • Resistance range form 100Ω to 5kΩ
  • Tolerance of ±005% or ±0.1%
  • TCR of ±5 ppm/°C
  • Power rating of 0.1W (at 70°C)
  • Temperature range from -65°C to +155°C

VPG RWB Series

RWB Surface Mount Precision Resistor
  • High precision wraparound resistor
  • Resistance range form 10Ω to 10kΩ
  • Tolerance from ±0.02% to ±0.5%
  • TCR of ±2 ppm/°C, ±5 ppm/°C or ±10 ppm/°C
  • Power rating of 0.2W (at 70°C)
  • Temperature range from -65°C to +155°C

VPG RWC Series

RWC Surface Mount Precision Resistor
  • High precision wraparound resistor
  • Resistance range form 5Ω to 130kΩ
  • Tolerance from ±0.01% to ±0.5%
  • TCR of ±2 ppm/°C, ±5 ppm/°C or ±10 ppm/°C
  • Power rating of 0.3W (at 70°C)
  • Temperature range from -65°C to +155°C
