Susumu RGT1608 Series

  • Susumu

Product Features

  • Surface-mount metal thin film chip resistor
  • Wide operating temperature range of −55°C to +175°C
  • Maximum voltage of 100V
  • Thin film structure enabling low noise and anti-sulfur
  • long term stability with inorganic passivations.
  • Resistance value series of either E24 or E96
  • AEC-Q200 compliant
  • Automotive

Applications

The RGT1608 series of thin film chip resistor from Susumu offer a wider temperature range of −55°C to +175°C with an enhanced level of precision and reliability in a 0603 chip size. The RGT1608 series has a double layer of passivation to eliminate water ingress to the thin film element, with resistance values that range from 10Ω to 1MΩ with tolerances of ±0.1% (B) and ±0.5% (D) and it is AEC-Q200 compliant.

  • Surface-mount metal thin film chip resistor
  • Resistance range between 10Ω and 1MΩ available
  • Resistance value series either E-24 or E-96
  • Power rating of 0.0625W
  • Tolerance values available ±0.1% (B) and ±0.5% (D) (depending on the resistance value required)
  • TCR values available of ±10 ppm/°C (N) and ±25 ppm/°C (P) (depending on the resistance value required)
  • Maximum voltage of 100V
  • Wide operating temperature range of −55°C to +175°C
  • Long term stability with inorganic passivation
  • Thin film structure enabling low noise and anti-sulfur
  • Chip size of 0603
  • AEC-Q200 compliant



Susumu RGT1608 series thin film chip resistors are ideal for the following applications:

  • Automotive electronics
  • Industrial measurement instrumentation
  • Industrial machines
  • Wide temperature operation machines



The below table gives the full specifications of the Susumu RGT series including the RGT1608:

Susumu RGT1608 Specifications



Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Weight 0.00000 kg

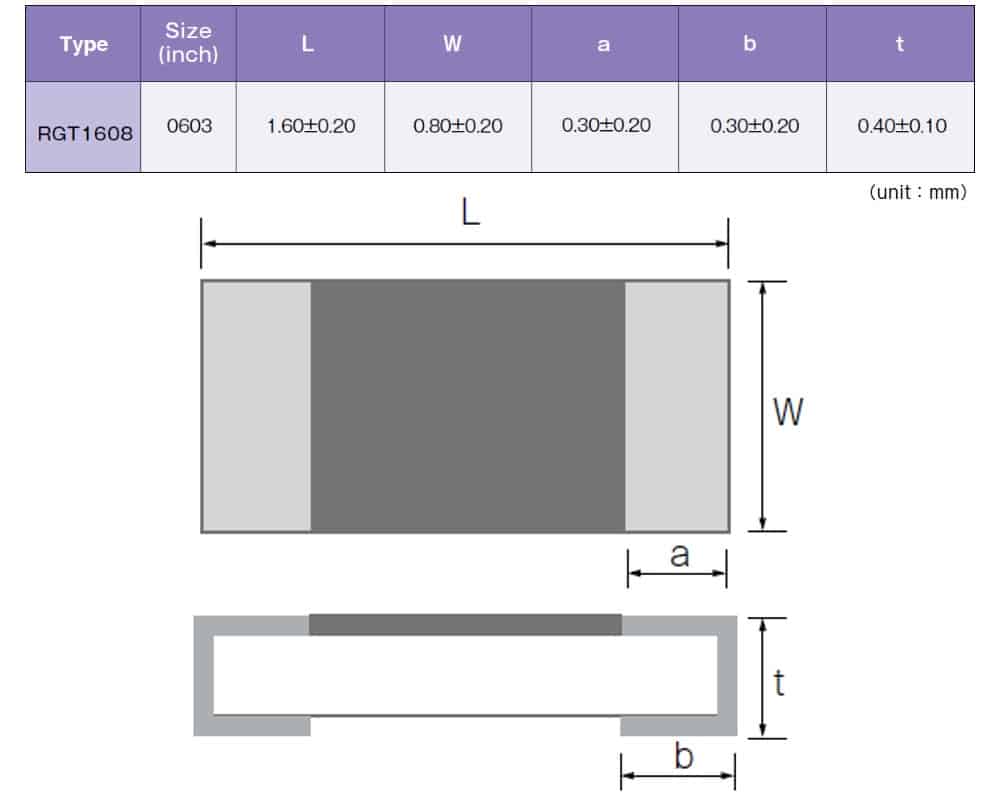

Dimensions 0.40 x 0.80 x 1.60mm
Maximum Resistance

Minimum Resistance

Power Rating

Series / Model

Temperature Coefficient

,

Tolerance

,
